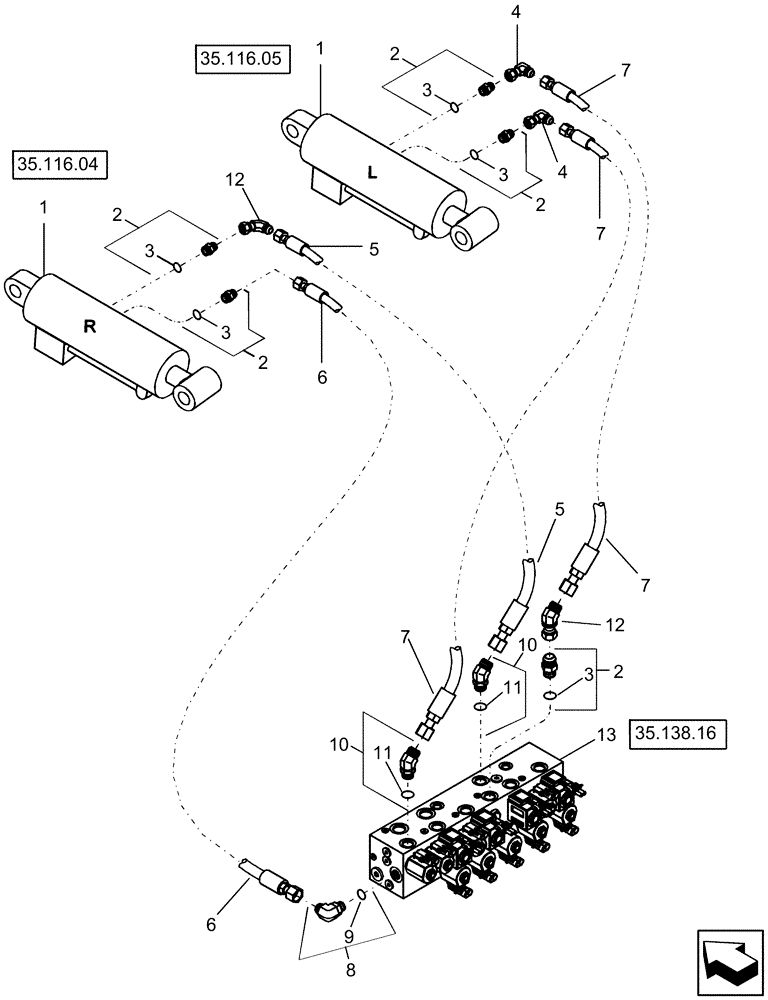

Запчасти Case IH 1240 (35.100.01) - HYDRAULIC SYSTEM - TOOLBAR LIFT LINKAGE (35) - HYDRAULIC SYSTEMS

1

87401121

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 304.8mm Stroke

5" x 12" 3000 PSI

2шт.

12 row and 16 row planters

1шт.

1

87463263

HYDRAULIC CYLINDER

5 1/2" x 12", Years: -01-DEC-09

2шт.

12/23 row, 16/31 row and 24 row planters

1шт.

1

84227100R

REMAN-HYD CYLINDER

1240 PIVOT TRANSPORT PLANTER EARLY RISER® SERIES, 12/23 row, 16/31 row and 24 row planters (7/08-), Reman for New PN 87463263

2шт.

1

84227100C

CORE-HYD CYLINDER

Return Number

2шт.

1

84227100

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 304.8mm Stroke

5 1/2" x 12", Start Year: 01-DEC-09

2шт.

12/23 row, 16/31 row and 24 row planters

1шт.

1

84227100R

REMAN-HYD CYLINDER

1240 PIVOT TRANSPORT PLANTER EARLY RISER® SERIES, 12/23 row, 16/31 row and 24 row planters (7/08-)

2шт.

1

84227100C

CORE-HYD CYLINDER

Return Number

2шт.

2

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

5шт.

3

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

5шт.

4

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

2шт.

5

91159C1

HYDRAULIC HOSE,12.70 mm ID x 4955.00 mm, SAE 100R1

1шт.

6

134215A1

HYDRAULIC HOSE

1/2" x 205" fl

1шт.

7

1304251C2

HYDRAULIC HOSE

1/2" x 41" fl

2шт.

8

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

9

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

216797

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

2шт.

11

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

12

248992

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

2шт.

12

248992

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

24 row planter

1шт.

12

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

1шт.

24 row planter

1шт.

13

401591A1

VALVE, CONTROL

assembly lift and fold

1шт.
