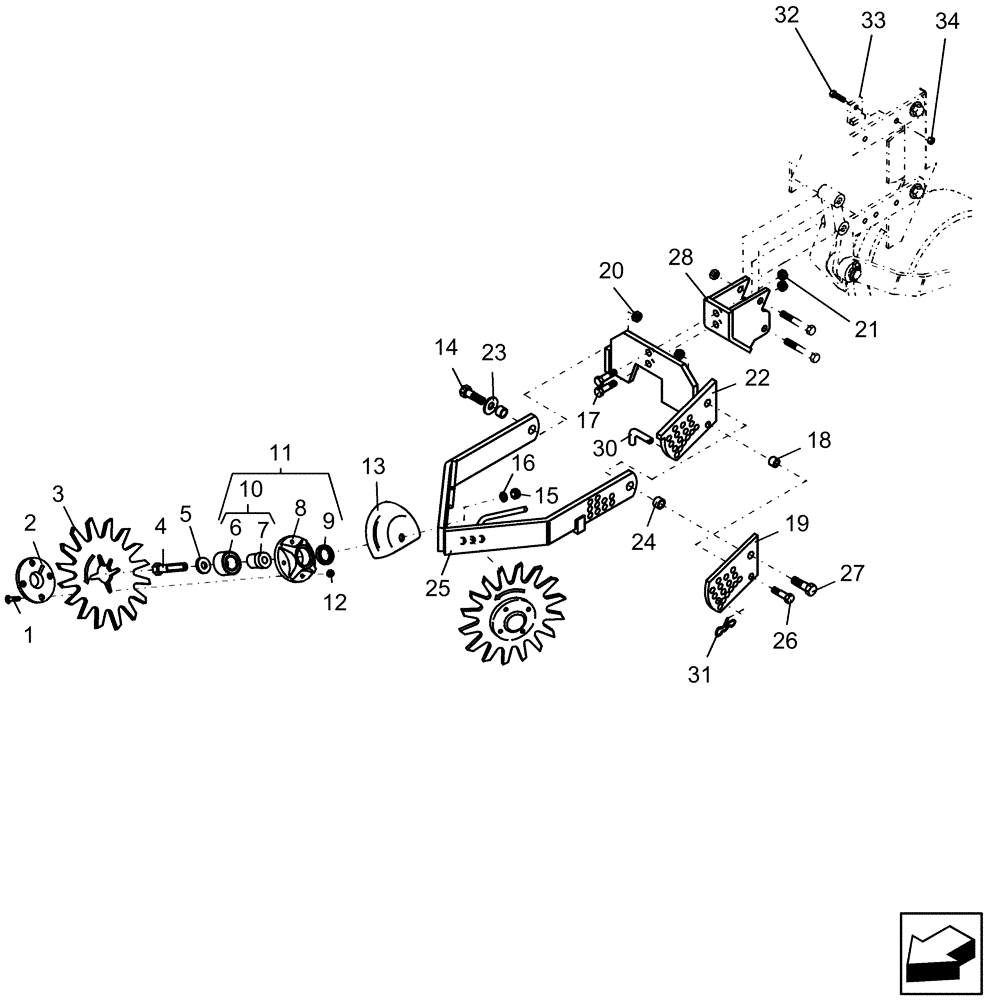

Запчасти Case IH 1240 (75.200.20) - FLOATING RESIDUE MANAGER, TINE WHEEL (75) - SOIL PREPARATION

1

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

8шт.

2

108130A1

HUB CAP

casting

2шт.

3

108131A3

WHEEL,330.2mm OD x 6.35mm Thk

residue manager 13" diameter tine

2шт.

4

319458A1

BOLT

5/8"-11 x 3, G5, "D" shaped

2шт.

5

108133A1

WASHER,16.67mm ID x 38.1mm OD x 4.76mm Thk

1 1/2" x 21/32" x 3/16"

2шт.

6

108134A1

BALL BEARING,30mm ID x 55mm OD x 22.99mm W

double row

2шт.

7

108135A1

INSERT

trashmaster bearing

2шт.

8

108136A1

HUB

4 bolt

2шт.

9

108137A1

SEAL,34.92mm ID x 47.7mm OD x 6.35mm Thk

bearing

2шт.

10

108138A1

BEARING ASSY

with insert

2шт.

11

108132A1

FLANGED BEARING

and bearing assembly

2шт.

12

280736

NUT,5/16"-18, GC

8шт.

13

319179A1

SHIELD

RM combo

2шт.

14

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

15

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

16

12034871

WASHER

5/8"

2шт.

17

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

2шт.

18

87505329

SPACER

9/16"

1шт.

19

87505282

ADJUSTING PLATE

backer

1шт.

20

86639566

NUT,5/8"-11, GB

2шт.

21

87530607

NUT

1/2"-13, GB

3шт.

22

87505283

BRACKET

floating residue manager mount

1шт.

23

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

1шт.

24

319317A1

BUSHING,16mm ID x 22.35mm OD x 14.29mm L

9/16"

2шт.

25

87505281

ARM

floating residue manager

1шт.

26

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

27

88556

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 5

1шт.

28

87505284

BRACKET

residue manager row unit mount

1шт.

30

87505323

PIVOT PIN,12.7mm OD

residue manager upstop

1шт.

31

87505324

COTTER PIN

.120 Bowtie locking

1шт.

32

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

33

129621A1

STOP

row unit

1шт.

34

88902

NUT,3/8"-16

1шт.
