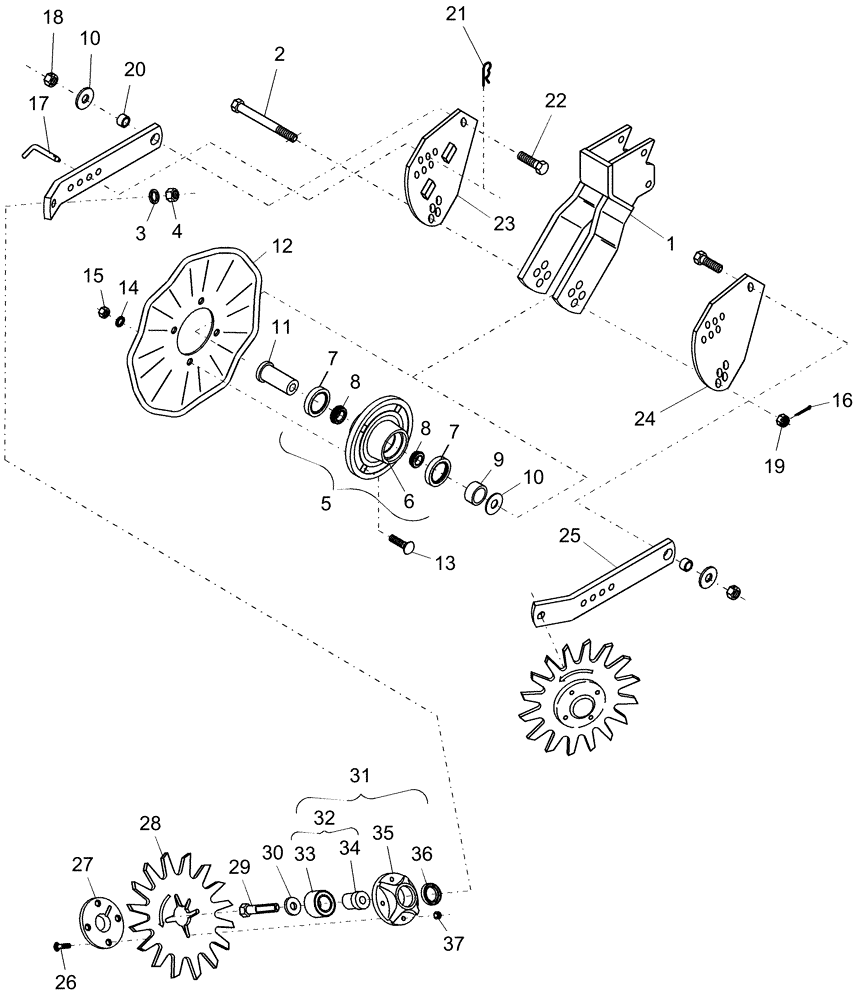

Запчасти Case IH 1240 (75.200.17) - COMBO DUAL WHEEL RESIDUE MANAGER WITH ROW UNIT COULTER ATTACHMENT (75) - SOIL PREPARATION

1

87501828

BRACKET

row mounted coulter

1шт.

2

87413979

BOLT

spindle 5/8"-18 x 6"

1шт.

3

12034871

WASHER

5/8"

2шт.

4

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

5

87413974

HUB

coulter

1шт.

6

1344512C1

HUB

coulter

1шт.

7

652769R91

OIL SEAL

oil

2шт.

8

36726

BEARING CONE,31.75mm ID x 16.76mm W

#LM67048

2шт.

8

84356153GV

BEARING

Value

2шт.

9

87413973

SPACER

spindle 19.05 mm long

1шт.

10

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

3шт.

11

87413975

SPACER

spindle, with shoulder

1шт.

12

130800A2

PLOW DISC

coulter, 14.3", 8 wave

1шт.

13

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

4шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

15

280431

NUT,1/2"-13, G5

4шт.

16

80708

COTTER PIN,1/8" x 1 1/2"

1шт.

17

319316A1

PIVOT PIN

combo adjustment zp

2шт.

18

85700693

NUT,5/8" - 11, Gr C

2шт.

19

86637930

SLOTTED NUT,5/8"-18, G5

1шт.

20

319317A1

BUSHING,16mm ID x 22.35mm OD x 14.29mm L

9/16"

2шт.

21

86000109

COTTER PIN

QA

2шт.

22

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

23

319273A1

BRACKET

adj W.A. combo RH

1шт.

24

319274A1

BRACKET

adj W.A. combo LH

1шт.

25

319285A1

ARM

combo

2шт.

26

280562

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/2", Gr 5

8шт.

27

108130A1

HUB CAP

casting

2шт.

28

319278A1

LAND WHEEL

10" spoked

2шт.

29

319458A1

BOLT

5/8"-11 x 3, G5, "D" shaped

2шт.

30

108133A1

WASHER,16.67mm ID x 38.1mm OD x 4.76mm Thk

1 1/2" x 21/32" x 3/16"

2шт.

31

108132A1

FLANGED BEARING

and bearing assembly

2шт.

32

108138A1

BEARING ASSY

with insert

2шт.

33

108134A1

BALL BEARING,30mm ID x 55mm OD x 22.99mm W

double row

2шт.

34

108135A1

INSERT

trashmaster bearing

2шт.

35

108136A1

HUB

4 bolt

2шт.

36

108137A1

SEAL,34.92mm ID x 47.7mm OD x 6.35mm Thk

bearing

2шт.

37

230-4245

LOCK NUT,5/16"-18, GA

8шт.
