Запчасти Case IH 1240 (75.200.15) - FRAME - DUAL WHEEL RESIDUE MANAGER (75) - SOIL PREPARATION

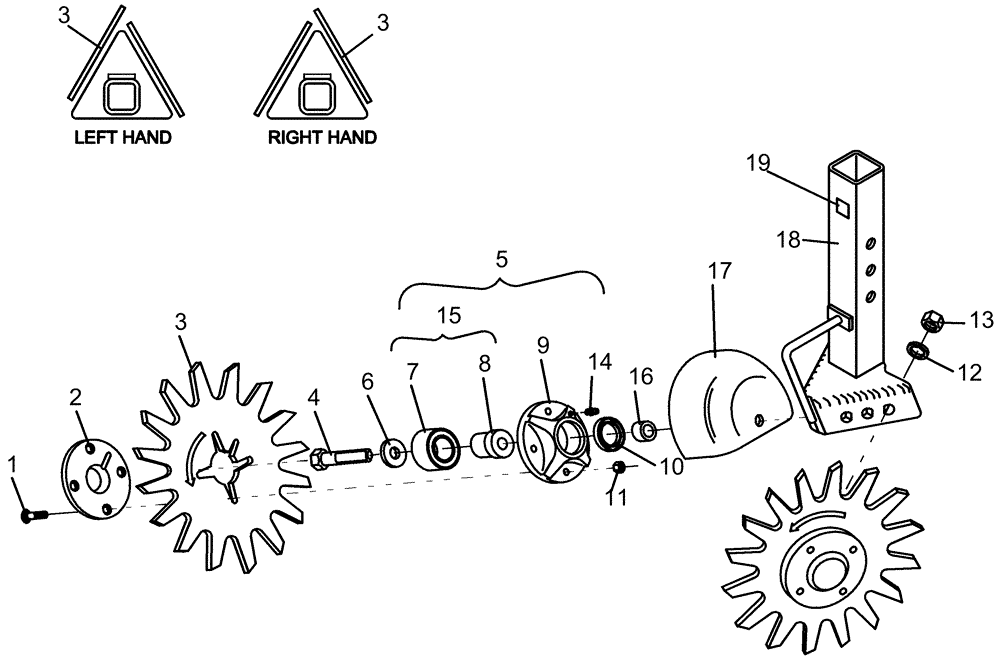

Схема запчастей Case IH 1240 - (75.200.15) - FRAME - DUAL WHEEL RESIDUE MANAGER (75) - SOIL PREPARATION
18
17
2
7
14
5
19
3
4
8
12
6
3
10
15
1
3
9
13
11
16

Артикул

Название

Примечание

Количество

1

280827

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

8шт.

2

108130A1

HUB CAP

casting

2шт.

3

108131A3

WHEEL,330.2mm OD x 6.35mm Thk

residue manager 13" diameter tine

2шт.

4

135322A1

BOLT,Spcl, Hex Flg, 5/8" - 11 x 4", Gr 8

5/8"-11 x 4", G5, "D" shaped

2шт.

5

108132A1

FLANGED BEARING

and bearing assembly

2шт.

6

108133A1

WASHER,16.67mm ID x 38.1mm OD x 4.76mm Thk

1 1/2" x 21/32" x 3/16", No Longer Needed

2шт.

7

108134A1

BALL BEARING,30mm ID x 55mm OD x 22.99mm W

double row

2шт.

8

108135A1

INSERT

trashmaster bearing

2шт.

9

108136A1

HUB

4 bolt

2шт.

10

108137A1

SEAL,34.92mm ID x 47.7mm OD x 6.35mm Thk

bearing

2шт.

11

280736

NUT,5/16"-18, GC

8шт.

12

12034871

WASHER

5/8"

2шт.

13

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

14

87414

LUBE NIPPLE,1/4" - 28

2шт.

15

108138A1

BEARING ASSY

with insert

2шт.

16

108139A1

SPACER

3/4"

2шт.

17

133801A2

BEARING COVER

residue manager bearing

2шт.

18

87723401

STEM

row unit attachment with handle

1шт.

19

NSS

NOT SOLD SEPARAT

attachment dual residue manager RH

1шт.

19

NSS

NOT SOLD SEPARAT

attachment dual residue manager LH

1шт.

Выбрано товаров: 20
