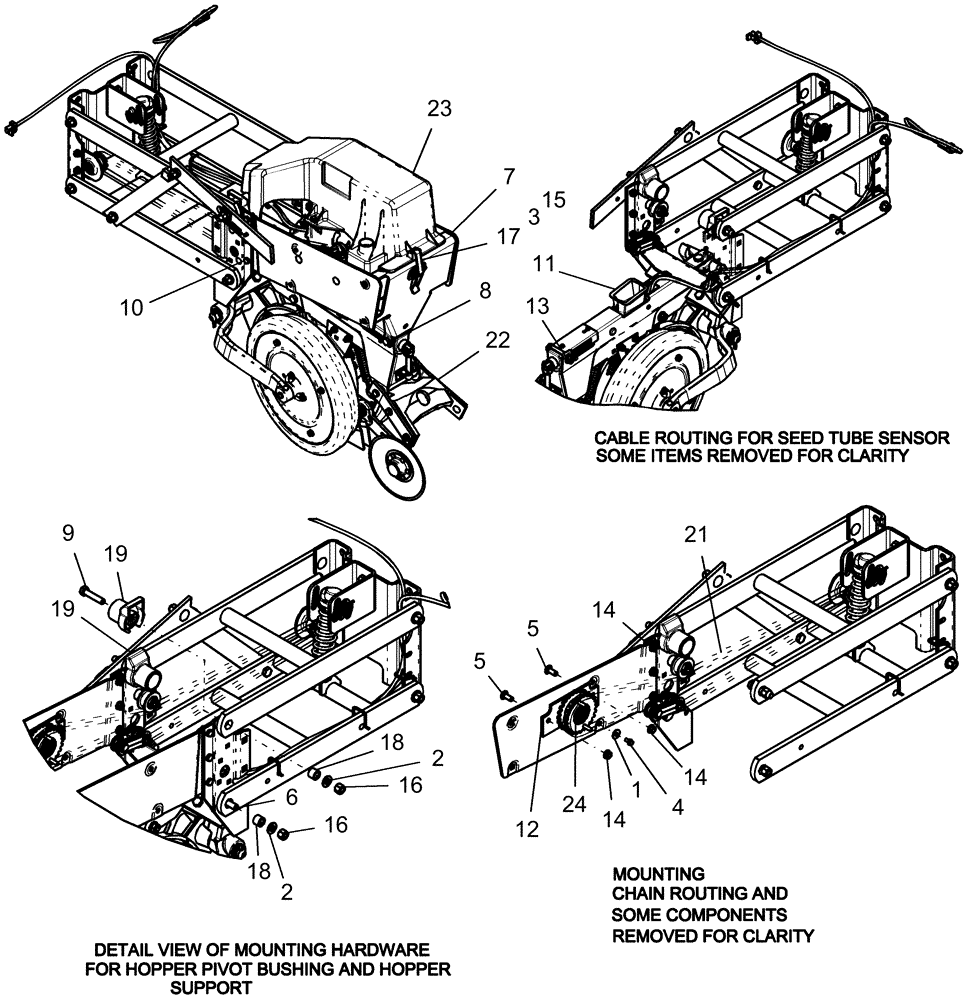

Запчасти Case IH 1240 (75.200.09) - ROW UNIT FRAME WITH EXTENDED LINKAGE (MOUNTED STACKER) AND MINI HOPPER - ROUTING DETAILS (75) - SOIL PREPARATION

1

REF

INSTRUCTION

EXTENDED LINKAGE

1шт.

1

86624140

WASHER,0.28" ID x 0.88" OD x 0.06" Thk

1шт.

2

86632589

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

3

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

4

86521549

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

5

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

6

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

2шт.

7

197332A3

SUPPORT

assy hopper

1шт.

8

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1шт.

9

87975

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1шт.

10

280643

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

6шт.

11

383337A2

PLASTIC-RUBBER TUBE

ASM seed tube & sensor, Years: -01-FEB-10

1шт.

11

87688051

TUBE,737, 400 mm L

Seed, Start Year: 01-FEB-10

1шт.

11

392257A1

SENSOR

ASM smart seed, Start Year: 01-FEB-10

1шт.

11

529070

CABLE TIE,368.3mm L

CABLE STRAP, Start Year: 01-FEB-10

1шт.

12

303068A1

BRACKET

bearing spindle mount assembly

1шт.

13

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

14

247780

SERRATED NUT,Flg, USR, 3/8"-16

8шт.

15

523282

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

16

87333862

NUT

1/2"-13, GB

3шт.

17

230311A1

CLAMP

hopper assembly, Model Year 2011 And Prior

1шт.

17

84410488

LATCH

hopper assembly, Model Year 2012

1шт.

18

1254302C1

BUSHING,13.5mm ID x 22.2mm OD x 16.7mm L

link pivot

3шт.

19

84472130

BUSHING

hopper pivot

2шт.

21

87417442

CHAIN (AG)

ASM meter drive (EXTX2) 159 links - 79 1/2" long

1шт.

16/31 row planters used on even rows except row 24, 12/23 row planters used on even rows except row 18.

1шт.

Use 159 links from 475879R91 plus 1 connecting link 241-2314

1шт.

21

352954A1

CHAIN (AG)

ASM meter drive (ext)

1шт.

16/31 row planters used on row 24 only, 12/23 row planters used on row 18 only.

1шт.

Use 143 Links From 475879R91 Bulk Chain, Plus (1) 241-2314 Connecting Link

1шт.

21

475879R91

CHAIN (AG)

#41 - 10' s/p roller

1шт.

21

84373807

CHAIN

meter drive 20, Model Year 2012

1шт.

21

84373811

CHAIN

meter drive 24, Model Year 2012

1шт.

21

44428

CONNECTING LINK

#41 single pitch connecting

1шт.

22

REF

INSTRUCTION

RH ROW UNIT(RH D LEAD)

1шт.

23

REF

INSTRUCTION

SEED METER ASSY WITH MINI HOPPER

1шт.

24

87407490

SPROCKET

and bearing assembly

1шт.
