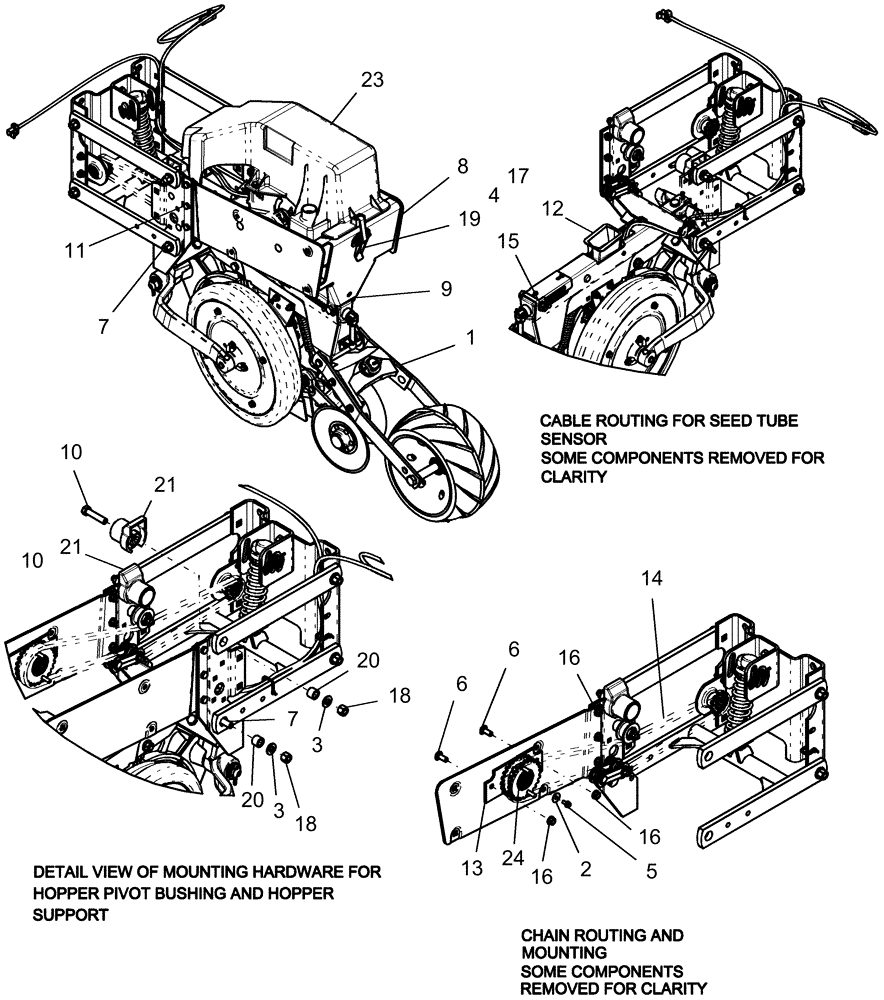

Запчасти Case IH 1240 (75.200.08) - ROW UNIT FRAME WITH MINI HOPPER (75) - SOIL PREPARATION

1

REF

INSTRUCTION

LAYOUT RH ROW UNIT(RH D LEAD)

1шт.

2

86624140

WASHER,0.28" ID x 0.88" OD x 0.06" Thk

1шт.

3

86632589

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

4

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

5

86521549

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

6

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

7

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

2шт.

8

197332A3

SUPPORT

assy hopper

1шт.

9

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1шт.

10

87975

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

2шт.

11

280643

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

6шт.

12

383337A2

PLASTIC-RUBBER TUBE

ASM seed tube & sensor, Years: -01-FEB-10

1шт.

12

529070

CABLE TIE,368.3mm L

CABLE STRAP, Start Year: 01-FEB-10

1шт.

12

87688051

TUBE,737, 400 mm L

Seed, Start Year: 01-FEB-10

1шт.

12

392257A1

SENSOR

ASM smart seed, Start Year: 01-FEB-10

1шт.

13

303068A1

BRACKET

bearing spindle mount assembly

1шт.

14

237999A1

CHAIN (AG)

seed meter drive

1шт.

Use 119 Links From 475879R91 Bulk Chain, Plus (1) 241-2314 Connecting Link

1шт.

14

475879R91

CHAIN (AG)

#41 - 10' s/p roller

1шт.

14

44428

CONNECTING LINK

#41 single pitch connecting

1шт.

15

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

16

247780

SERRATED NUT,Flg, USR, 3/8"-16

8шт.

17

523282

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

18

87333862

NUT

1/2"-13, GB

4шт.

19

230311A1

CLAMP

hopper assembly, Model Year 2011 And Prior

1шт.

19

84410488

LATCH

hopper assembly, Model Year 2012

1шт.

20

1254302C1

BUSHING,13.5mm ID x 22.2mm OD x 16.7mm L

link pivot

4шт.

21

84472130

BUSHING

hopper pivot

2шт.

23

REF

INSTRUCTION

LAYOUT SEED METER ASSY W/MHOP

1шт.

24

87407490

SPROCKET

and bearing assembly

1шт.
