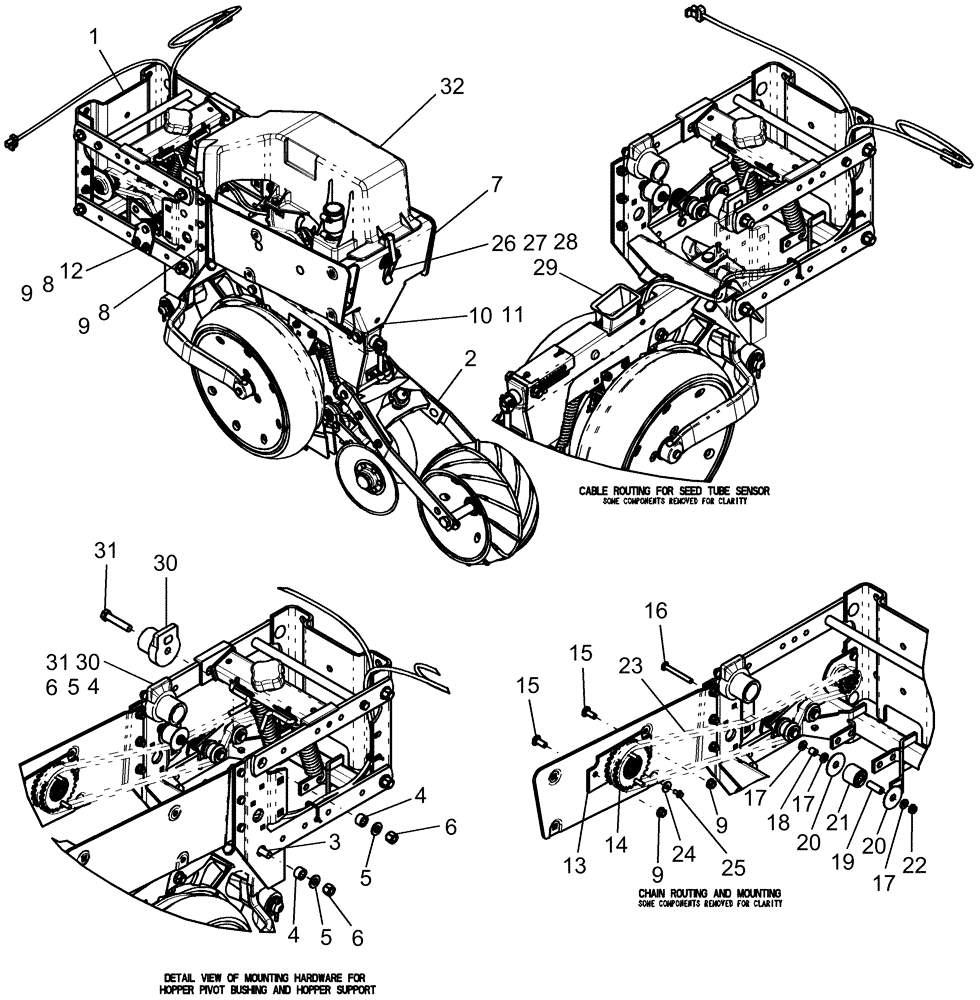

Запчасти Case IH 1240 (75.200.07) - ROW UNIT FRAME WITH STANDARD LINKAGE & MINI HOPPER - ROUTING DETAILS (75) - SOIL PREPARATION

1

REF

INSTRUCTION

STANDARD LINKAGE FOR ROW UNIT

1шт.

2

REF

INSTRUCTION

RH ROW UNIT(RH D LEAD)

1шт.

3

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

2шт.

4

137512C3

BUSHING,13.5mm ID x 22.23mm OD x 13.5mm L

link pivot

4шт.

5

86632589

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

6

86992215

LOCK NUT,1/2"-13, GC

4шт.

7

197332A3

SUPPORT

assy hopper

1шт.

8

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

9

247780

SERRATED NUT,Flg, USR, 3/8"-16

10шт.

10

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1шт.

11

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

12

REF

INSTRUCTION

IDLER/A, ALT SEED METER

1шт.

13

303068A1

BRACKET

bearing spindle mount assembly

1шт.

14

87407490

SPROCKET

and bearing assembly

1шт.

15

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

16

281006

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3", Gr 5

1шт.

17

86624142

WASHER,0.34" ID x 0.75" OD x 0.12" Thk

3шт.

18

27825R1

SPACER,8.5mm ID x 12.7mm OD x 12.7mm L

1шт.

19

134288C1

SPACER

roller

1шт.

20

86624150

WASHER,0.53" ID x 2" OD x 0.06" Thk

2шт.

21

57796C1

ROLLER

1шт.

22

145458

SERRATED NUT,5/16"-18 GR 5 ZND

1шт.

23

237999A1

CHAIN (AG)

seed meter drive

1шт.

Use 119 Links From 475879R91 Bulk Chain, Plus (1) 241-2314 Connecting Link

1шт.

23

475879R91

CHAIN (AG)

#41 - 10' s/p roller

1шт.

23

44428

CONNECTING LINK

#41 single pitch connecting

1шт.

24

86624140

WASHER,0.28" ID x 0.88" OD x 0.06" Thk

1шт.

25

86521549

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

26

230311A1

CLAMP

hopper assembly, Model Year 2011 And Prior

1шт.

26

84410488

LATCH

hopper assembly, Model Year 2012

1шт.

27

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

28

523282

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

29

383337A2

PLASTIC-RUBBER TUBE

ASM seed tube & sensor, Years: -01-FEB-10

1шт.

29

87688051

TUBE,737, 400 mm L

Seed, Start Year: 01-FEB-10

1шт.

29

392257A1

SENSOR

ASM smart seed, Start Year: 01-FEB-10

1шт.

29

529070

CABLE TIE,368.3mm L

CABLE STRAP, Start Year: 01-FEB-10

1шт.

30

84472130

BUSHING

hopper pivot

2шт.

31

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

32

REF

INSTRUCTION

SEED METER ASSY WITH MINI HOPPER

1шт.
