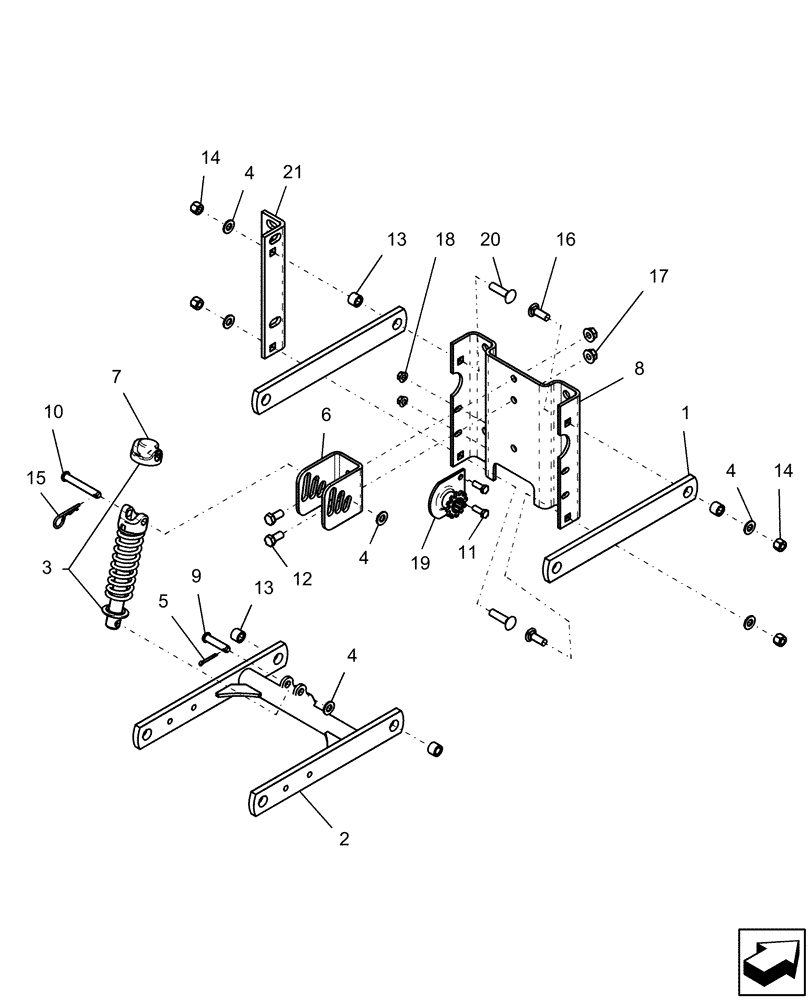

Запчасти Case IH 1240 (75.200.03) - DOWN PRESSURE STANDARD AND OFFSET LINKAGE (75) - SOIL PREPARATION

1

87739254

BAR

14" upper

2шт.

2

87462065

SUPPORT

14" lower linkage

1шт.

3

87462749

CARTRIDGE

down pressure spring

1шт.

4

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

6шт.

5

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

6

87462073

BRACKET

down pressure adjustment

1шт.

7

87462571

DUST CAP

1шт.

8

141728C5

BRACKET

channel head

1шт.

9

439-5836

HEADED PIN,12.7mm OD x 57.15mm L

1шт.

10

86624062

HEADED PIN,12.7mm OD x 88.9mm L

1шт.

11

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

12

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

13

1254302C1

BUSHING,13.5mm ID x 22.2mm OD x 16.7mm L

link pivot

4шт.

14

86992215

LOCK NUT,1/2"-13, GC

4шт.

15

87045537

HAIR PIN COTTER

.148 x 3 5/16"

1шт.

16

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

2шт.

17

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

18

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

19

413712A1

BEARING ASSY,1.90625" OD x 1.875"

12 tooth with bearing

1шт.

20

280185

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

2шт.

Use longer bolt when offset bracket is used

1шт.

21

87462142

ANGLE

row unit mounting

1шт.

Used in some applications on right or left side

1шт.
