Запчасти Case IH 1240 (75.110.27) - TINE TOOTH ATTACHMENT (75) - SOIL PREPARATION

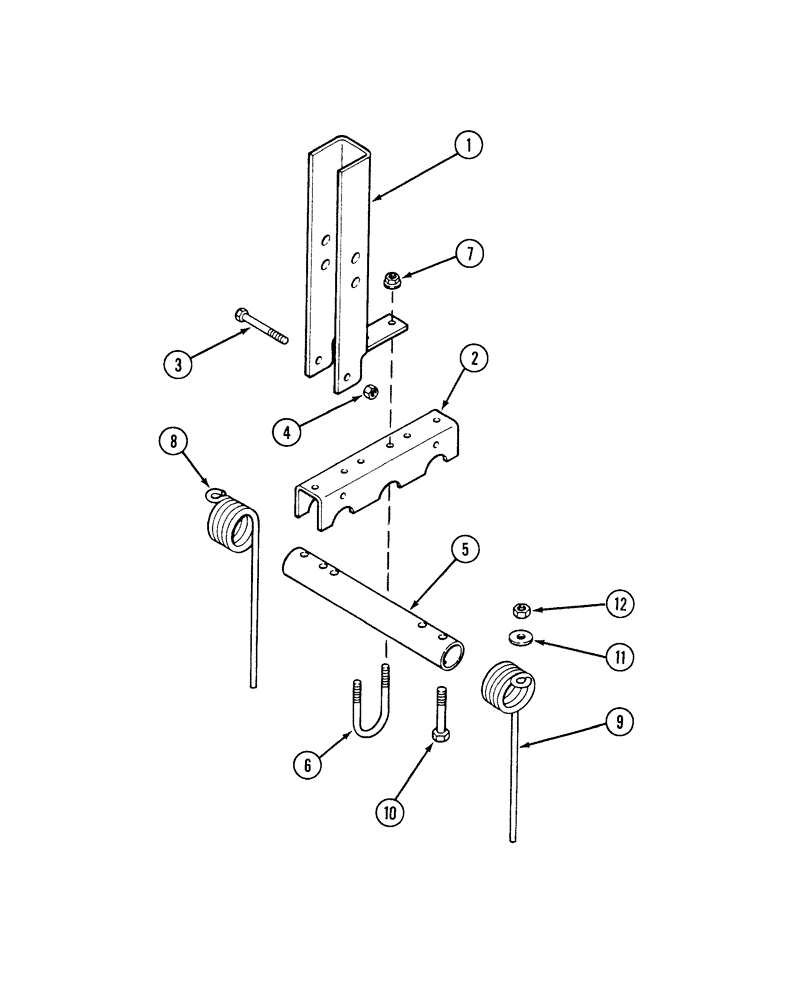

Схема запчастей Case IH 1240 - (75.110.27) - TINE TOOTH ATTACHMENT (75) - SOIL PREPARATION
8
11
12
2
5
1
7
10
4
6
9
3

Артикул

Название

Примечание

Количество

1

141381C2

SUPPORT

tine tooth attachment

1шт.

2

141382C1

CHANNEL

tine tooth attachment

1шт.

3

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

4

280736

NUT,5/16"-18, GC

1шт.

5

1279536C1

SUPPORT TUBE,33.4 mm OD, 248 mm Length

1.32 od with holes

3шт.

6

141384C1

U-BOLT,5/16" - 18 x 77mm L

5/16"-18, tine tooth attachment

3шт.

7

145458

SERRATED NUT,5/16"-18 GR 5 ZND

6шт.

8

1279534C1

SPRING

tine tooth LH

3шт.

9

1279535C1

SPRING

tine tooth RH

2шт.

10

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

5шт.

11

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

5шт.

12

88902

NUT,3/8"-16

5шт.

Выбрано товаров: 12
