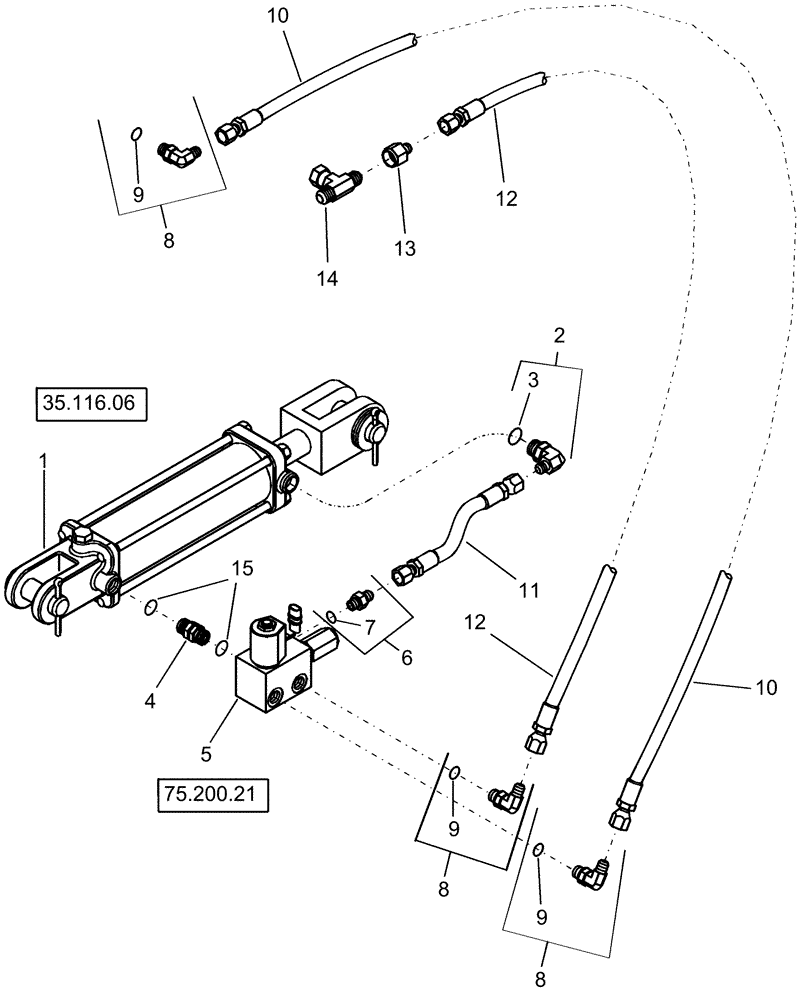

Запчасти Case IH 1240 (75.110.21) - LIQUID FERTILIZER COULTER BAR RAISE/LOWER ASSEMBLY (75) - SOIL PREPARATION

1

86991779

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

2 1/2" x 8", 3000 psi, no pins

1шт.

2

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

1шт.

2

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

24 row planter

1шт.

3

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

1261010C1

FITTING

stl union 3/4" mb 3/4" mb straight

1шт.

Includes two O-Rings

1шт.

5

431344A1

VALVE

assembly with relief and PO check

1шт.

5

87445702

VALVE

coulter

1шт.

24 row planter

1шт.

6

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

7

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

3шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

10

1284303C1

HYDRAULIC HOSE

3/8" x 145" fl

1шт.

11

87439130

TUBE,9.53 mm OD x 215, 90 mm L

assembly, liquid fertilizer cylinder

1шт.

12

1284303C1

HYDRAULIC HOSE

3/8" x 145" fl

1шт.

13

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

14

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

15

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.
