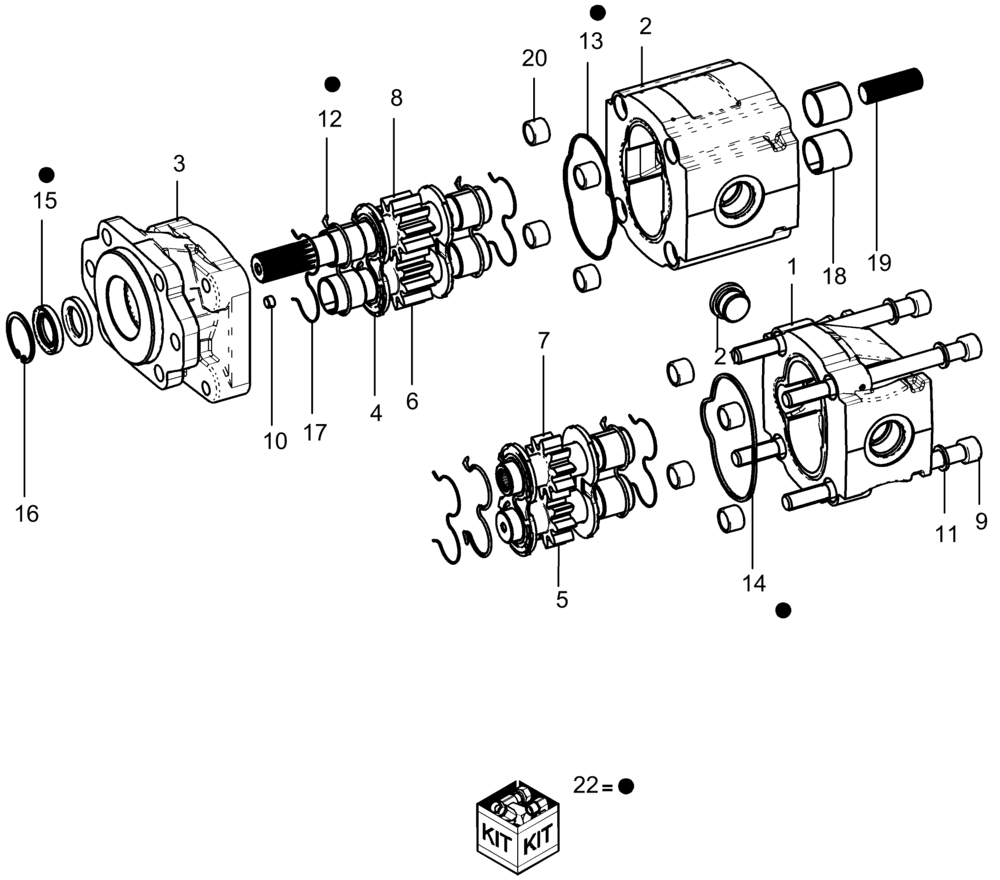

Запчасти Case IH 1240 (35.220.02[02]) - PUMP 36 GPM CASAPPA, 87690666 (25) - FRONT AXLE SYSTEM

0

87690666

PUMP

36 gpm Casappa

1шт.

0

87690666R

REMAN-HYD PUMP

36 gpm

1шт.

0

87690666C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

NS

NOT SERVICED

body

1шт.

2

NS

NOT SERVICED

body

1шт.

3

NS

NOT SERVICED

cover

1шт.

4

NS

NOT SERVICED

thrust plate

4шт.

5

NS

NOT SERVICED

driven gear

1шт.

6

NS

NOT SERVICED

driven gear

1шт.

7

NS

NOT SERVICED

drive gear

1шт.

8

NS

NOT SERVICED

drive shaft

1шт.

9

NS

NOT SERVICED

screw

4шт.

10

NS

NOT SERVICED

grub screw

1шт.

11

NS

NOT SERVICED

washer

4шт.

12

NS

NOT SERVICED

seal

4шт.

13

NS

NOT SERVICED

standard seal

1шт.

14

NS

NOT SERVICED

seal

1шт.

15

NS

NOT SERVICED

shaft seal

2шт.

16

NS

NOT SERVICED

ring

1шт.

17

NS

NOT SERVICED

antiextrusion ring

4шт.

18

NS

NOT SERVICED

sleeve bearing

8шт.

19

NS

NOT SERVICED

hub

1шт.

20

NS

NOT SERVICED

steel bushes

8шт.

21

NS

NOT SERVICED

steel plug

1шт.

22

87747676

SEAL KIT

36 gpm Casappa pump

1шт.
