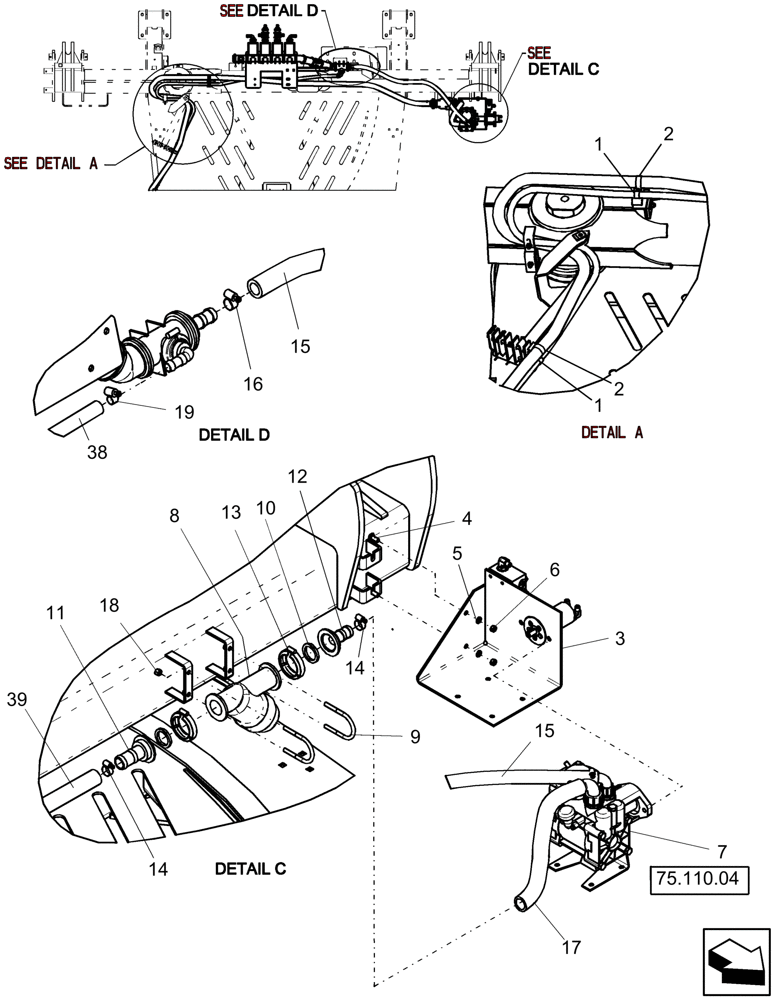

Запчасти Case IH 1240 (75.110.18) - LIQUID FERTILIZER - LAYOUT TONGUE HOSE ROUTING, 12/23 ROW, 16/31 ROW & 24 ROW - REAR DETAILS (75) - SOIL PREPARATION

1

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

2

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

3

427973A1

BRACKET

pump mounting

1шт.

4

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

5

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

6

9628503

NUT,3/8"-16, G5

6шт.

7

403008A1

PUMP

diaphram low pressure

1шт.

7

87462811

SEAL KIT

pump o-ring complete 9910-KIT2365

1шт.

8

405798A1

STRAINER ELEMENT,AAH

fitting poly y 2" line 80 mesh

1шт.

8

87413266

SCREEN,80 Mesh Screen

Strainer 80 Mesh, Banjo Part# LS280, Blue

1шт.

8

87413267

GASKET,2" EPDM Gasket

strainer

1шт.

9

87413269

U-BOLT

ur 3/8"-16 x 2 1/2" wide x 4" deep ss with 1 3/4" thread

2шт.

10

BN303204

GASKET,1-1/2" EPDM Gasket

2 7/32" od x 1 41/64" id x 1/4" thick

2шт.

11

434039A1

FITTING,2" Flange x 1-1/2" Hose Barb

2" Manifold x 1 1/2" hb Poly, Banjo

1шт.

12

405783A1

FITTING,2" Flange x 1-1/4" 90 Degree Hose Barb Elbow

poly 90º 2" flange x 1 1/4" hose barb

1шт.

13

400502A1

CLAMP,80.96mm ID

2" flange banjo #fc200

2шт.

14

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

6шт.

15

134329C3

HOSE

1" x 50' epdm

1шт.

16

86536660

HOSE CLAMP,25mm - 44mm

2шт.

17

86984447

HOSE,1.25" ID BULK x 100.00'

1шт.

18

86985855

LOCK NUT

3/8"-16 ss 1-way, nylon insert

4шт.

19

9706921

HOSE CLAMP,12.7mm - 35mm

4шт.

38

86993466

HOSE,0.75" ID

Order in Multiples of 100

1шт.

39

1264065C1

HOSE

pvc 1 1/2" id x 1 3/4" od x 1'

1шт.
