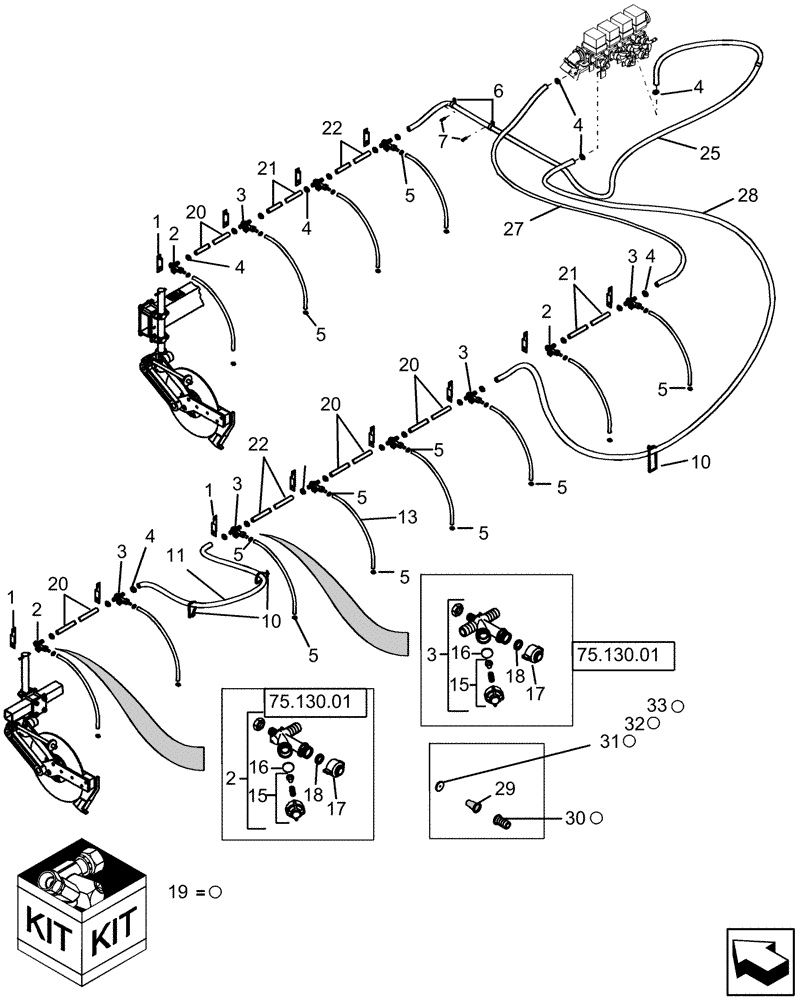

Запчасти Case IH 1240 (75.110.16) - LIQUID FERTILIZER SUPPLY HOSES WITH TANKS 24 ROW (75) - SOIL PREPARATION

1

241016A1

BRACKET

nozzle mount

24шт.

2

241019A1

NOZZLE

elbow assembly 3/4"

6шт.

3

241017A1

NOZZLE

tee assembly 3/4"

18шт.

4

9706921

HOSE CLAMP,12.7mm - 35mm

48шт.

5

244358

HOSE CLIP,0.44" - 0.78"

48шт.

6

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

12шт.

7

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

8

112620A1

CABLE TIE

CABLE STRAP 34"

4шт.

9

112620A1

CABLE TIE

CABLE STRAP 34"

4шт.

10

112620A1

CABLE TIE

CABLE STRAP 34"

4шт.

11

NSS

NOT SOLD SEPARAT

HOSE .75" X 89.6", 2277MM

2шт.

Cut from 86993466

1шт.

11

86993466

HOSE,0.75" ID

Order in Multiples of 100

1шт.

13

NSS

NOT SOLD SEPARAT

HOSE .5" X 42", 1066.8MM

24шт.

Cut from 134331C2

1шт.

13

134331C2

HOSE

1/2" x 100' clear vinyl bulk roll

1шт.

15

86985365

CAP

spring retainer

1шт.

16

86985364

DIAPHRAGM

(Viton) Demco part no. DFDV

1шт.

17

86985363

CAP

flood jet (red)

2шт.

18

86985362

GASKET

Demco part no DFGE

2шт.

19

NS

NOT SERVICED

Kit is no longer serviced, orifice/screen

1шт.

20

NSS

NOT SOLD SEPARAT

HOSE .75" X 18.2", 584MM

8шт.

Cut from 86993466

1шт.

21

NSS

NOT SOLD SEPARAT

HOSE .75" X 18.2", 685MM

4шт.

Cut from 86993466

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE .75" X 18.2", 462 MM

4шт.

Cut from 86993466

1шт.

25

NSS

NOT SOLD SEPARAT

HOSE .75" X 205", 5207MM

1шт.

Cut from 86993466

1шт.

Left side

1шт.

26

NSS

NOT SOLD SEPARAT

HOSE .75" X 220" , 5588MM

1шт.

Cut from 86993466

1шт.

Right side

1шт.

27

NSS

NOT SOLD SEPARAT

HOSE .75" X 227.9" , 5791MM

2шт.

Cut from 86993466

1шт.

28

NSS

NOT SOLD SEPARAT

HOSE .75" X 240" , 6096MM

2шт.

Cut from 86993466

1шт.

20-28

86993466

HOSE,0.75" ID

Order in Multiples of 100

1шт.

29

86985355

SCREEN

100 mesh nylon

1шт.

30

86985352

FITTING

hose shank 1/2" barb

1шт.

Included in kit ref. #19

1шт.

31

86983918

ORIFICE

flow regulator - 40

1шт.

Included in kit ref. #19

1шт.

32

86983919

ORIFICE

flow regulator - 52

1шт.

Included in kit ref. #19

1шт.

33

86983920

ORIFICE

flow regulator - 65

1шт.

Included in kit ref. #19

1шт.

33

86983914

ORIFICE

flow regulator - 29

1шт.

33

86983916

ORIFICE

flow regulator - 35

1шт.

33

86983921

ORIFICE

flow regulator - 89

1шт.
