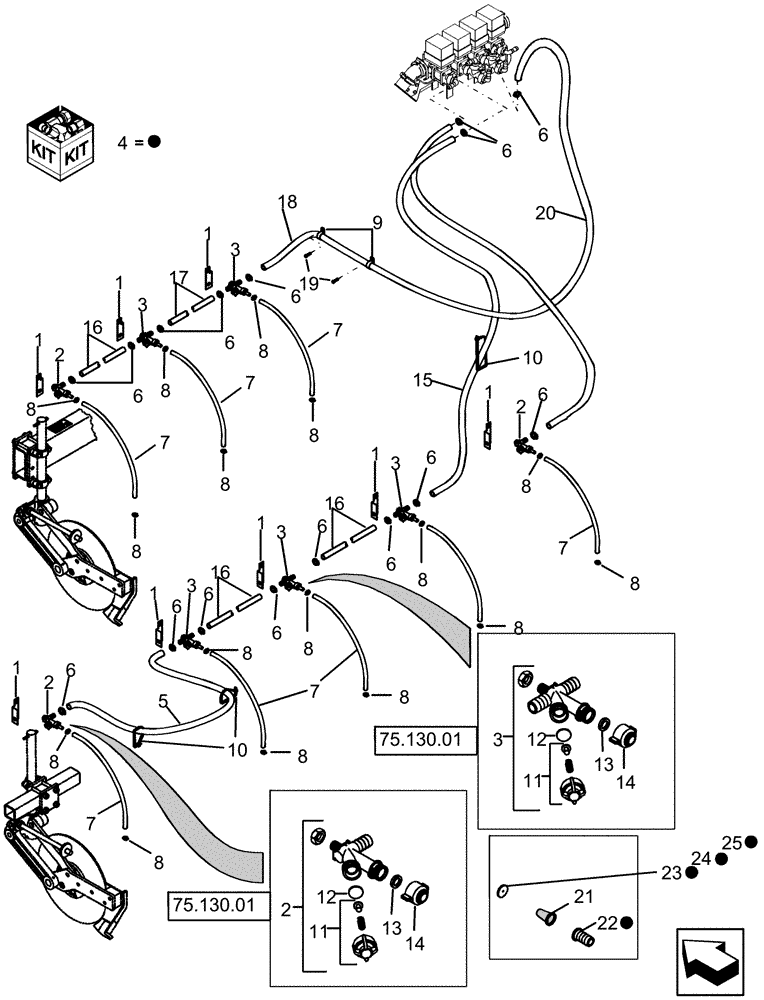

Запчасти Case IH 1240 (75.110.15) - LIQUID FERTILIZER SUPPLY HOSES WITH TANKS, 12/23 ROW & 16/31 ROW (75) - SOIL PREPARATION
№
Артикул
Название
Примечание
Количество
1
241016A1
BRACKET
nozzle mount
12шт.
12/23 row planter
1шт.
1
241016A1
BRACKET
nozzle mount
16шт.
16/31 row planter
1шт.
2
241019A1
NOZZLE
elbow assembly 3/4"
4шт.
12/23 row planter
1шт.
2
241019A1
NOZZLE
elbow assembly 3/4"
6шт.
16/31 row planter
1шт.
3
241017A1
NOZZLE
tee assembly 3/4"
8шт.
12/23 row planter
1шт.
3
241017A1
NOZZLE
tee assembly 3/4"
10шт.
16/31 row planter
1шт.
4
NS
NOT SERVICED
Kit is no longer serviced, orifice/screen
1шт.
5
NSS
NOT SOLD SEPARAT
HOSE .75" X 95.9", 2438MM
2шт.
Cut from 86993466
1шт.
6
9706921
HOSE CLAMP,12.7mm - 35mm
24шт.
12/23 row planter
1шт.
6
9706921
HOSE CLAMP,12.7mm - 35mm
32шт.
16/31 row planter
1шт.
7
NSS
NOT SOLD SEPARAT
HOSE .5" X 42", 1066.8MM
12шт.
Cut from 134331C2
1шт.
12/23 row planter
1шт.
7
NSS
NOT SOLD SEPARAT
HOSE .5" X 42", 1066.8MM
16шт.
16/31 row planter
1шт.
Cut from 134331C2
1шт.
7
134331C2
HOSE
1/2" x 100' clear vinyl bulk roll
1шт.
8
244358
HOSE CLIP,0.44" - 0.78"
24шт.
12/23 row planter
1шт.
8
244358
HOSE CLIP,0.44" - 0.78"
32шт.
16/31 row planter
1шт.
9
9827902
CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type
9шт.
12/23 row planter
1шт.
9
9827902
CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type
12шт.
16/31 row planter
1шт.
10
112620A1
CABLE TIE
CABLE STRAP 34"
12шт.
12/23 row planter
1шт.
10
112620A1
CABLE TIE
CABLE STRAP 34"
14шт.
16/31 row planter
1шт.
11
86985365
CAP
spring retainer
1шт.
12
86985364
DIAPHRAGM
(Viton) Demco part no. DFDV
1шт.
13
86985363
CAP
flood jet (red)
1шт.
14
86985362
GASKET
Demco part no DFGE
1шт.
15
NSS
NOT SOLD SEPARAT
HOSE .75" X 200" , 5508MM
2шт.
Cut from 86993466
1шт.
12/23 row planter
1шт.
15
NSS
NOT SOLD SEPARAT
HOSE .75IN X 227.9IN 5791MM
2шт.
16/31 row planter
1шт.
Cut from 86993466
1шт.
15
NSS
NOT SOLD SEPARAT
HOSE .75" X 240" , 6096MM
2шт.
16/31 row planter
1шт.
Cut from 86993466
1шт.
16
NSS
NOT SOLD SEPARAT
HOSE .75" X 32.9" , 838MM
4шт.
Cut from 86993466
1шт.
12/23 row planter
1шт.
16
NSS
NOT SOLD SEPARAT
HOSE .75" X 32.9" , 838MM
6шт.
16/31 row planter
1шт.
Cut from 86993466
1шт.
17
NSS
NOT SOLD SEPARAT
HOSE .75" X 30" , 762MM
2шт.
Cut from 86993466
1шт.
18a
NSS
NOT SOLD SEPARAT
HOSE .75" X 205" , 5207MM
1шт.
Sub bar left side hose
1шт.
Cut from 86993466
1шт.
18b
NSS
NOT SOLD SEPARAT
HOSE .75" X 220" , 5588MM
1шт.
Sub bar right side hose
1шт.
Cut from 86993466
1шт.
19
88206
BOLT,Hex, 3/8" - 16 x 1", Gr 5
1шт.
20
NSS
NOT SOLD SEPARAT
HOSE .75" X 222" 5639MM
2шт.
16/31 row planter
1шт.
Cut from 86993466
1шт.
20
NSS
NOT SOLD SEPARAT
HOSE .75IN X 227.9IN 5791MM
1шт.
16/31 row planter
1шт.
Cut from 86993466
1шт.
15-20
86993466
HOSE,0.75" ID
Order in Multiples of 100
1шт.
21
86985355
SCREEN
100 mesh nylon
1шт.
22
86985352
FITTING
hose shank 1/2" barb
1шт.
Included in kit ref. #4
1шт.
23
86983918
ORIFICE
flow regulator - 40
1шт.
Included in kit ref. #4
1шт.
24
86983919
ORIFICE
flow regulator - 52
1шт.
Included in kit ref. #4
1шт.
25
86983920
ORIFICE
flow regulator - 65
1шт.
Included in kit ref. #4
1шт.
25
86983914
ORIFICE
flow regulator - 29
1шт.
25
86983916
ORIFICE
flow regulator - 35
1шт.
25
86983921
ORIFICE
flow regulator - 89
1шт.
Выбрано товаров: 85
