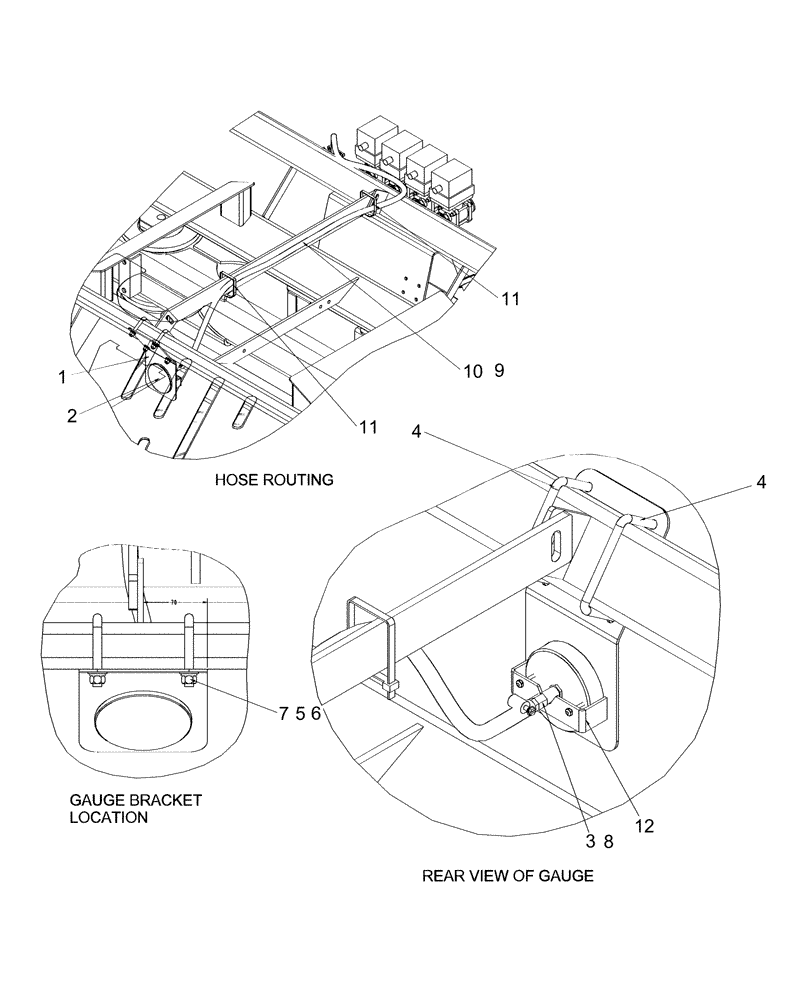

Запчасти Case IH 1240 (75.110.10) - LIQUID FERTILIZER SYSTEM WITH TRACTOR MOUNTED TANKS - FITTINGS AND VALVES (75) - SOIL PREPARATION

1

86987907

BRACKET

pressure guage

1шт.

2

86990418

GAUGE

pressure 4" SS 0 - 100 PSI

1шт.

3

86990850

FITTING

1/4" fpt coupler stainless steel

1шт.

4

86990154

U-BOLT

BOLT "U" us 3/8"-16 4"w 2 3/4"d 1 1/2" thread

1шт.

5

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

1шт.

6

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

7

9628503

NUT,3/8"-16, G5

1шт.

8

86990474

FITTING

1/4" mpt x 3/8" hose stainless steel

1шт.

9

244358

HOSE CLIP,0.44" - 0.78"

2шт.

10

86990146

HOSE,0.38" ID x 100.00'

1шт.

Cut from bulk hose 86990146

1шт.

10

86990146

HOSE,0.38" ID x 100.00'

1шт.

11

112620A1

CABLE TIE

CABLE STRAP 34"

1шт.

12

84388241

BRACKET

pressure gauge, Inc. 13-15

1шт.

13

84484173

BRACKET

(Not Shown)

1шт.

14

84543375

SCREW

(Not Shown)

2шт.

15

87653

NUT,#8-32

(Not Shown)

2шт.
