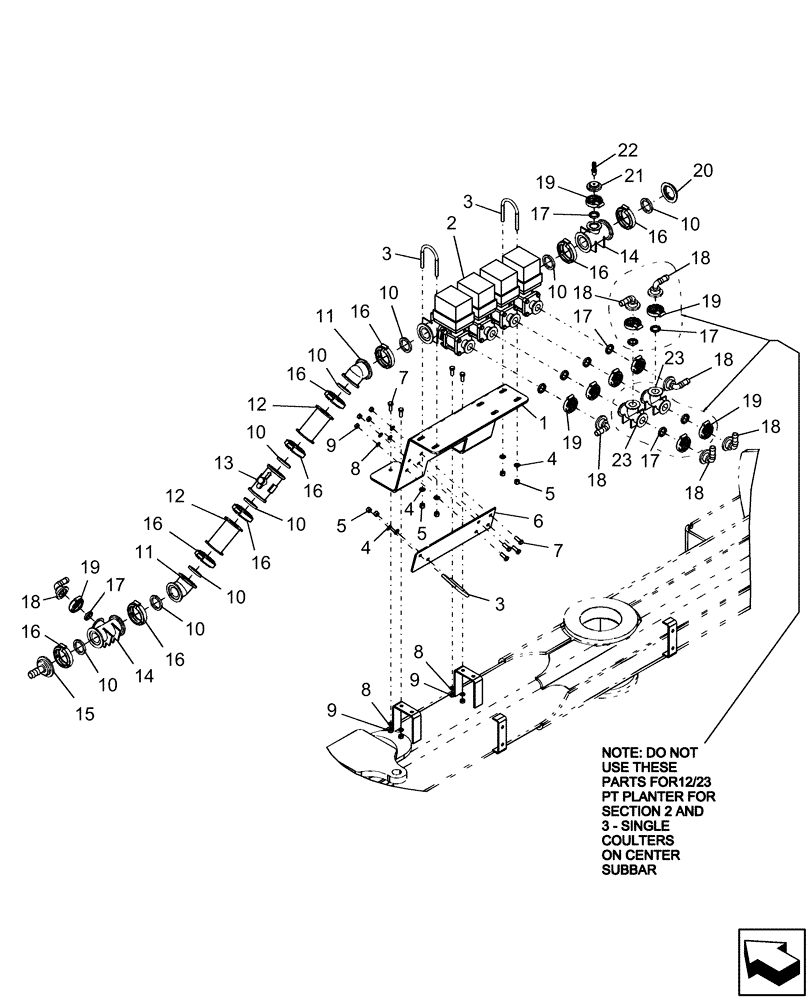

Запчасти Case IH 1240 (75.110.08) - LIQUID FERTILIZER SYSTEM W/TRACTOR MOUNTED TANKS - FITTINGS & VALVES 12/23 ROW, 16/31 ROW & 24 ROW (75) - SOIL PREPARATION

1

86983911

BRACKET

liquid fertilizer

1шт.

2

86983631

KIT,1" Manifold

manifold 4 valve bank

1шт.

3

87413269

U-BOLT

ur 3/8"-16 x 2 1/2" wide x 4" deep ss with 1 3/4" thread

1шт.

4

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

1шт.

5

86985855

LOCK NUT

3/8"-16 ss 1-way, nylon insert

1шт.

6

86990136

BRACKET

liquid fertilizer

1шт.

7

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

8

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

9

9628503

NUT,3/8"-16, G5

8шт.

10

BN303204

GASKET,1-1/2" EPDM Gasket

2 7/32" od x 1 41/64" id x 1/4" thick

9шт.

11

86984086

COUPLING

45°

9шт.

12

442255A1

COUPLING,2" x 2" Flange x 41/2"Long

poly 2 flange manifold

9шт.

13

406037A2

METER

flow liquid fertilizer

9шт.

14

86984089

TEE,2" Port x 1" Flanged Tee

2" x 2" x 1"

9шт.

15

86987616

FITTING,2" Flange x 1" Hose Barb

2" flange x 1" barb

9шт.

16

400502A1

CLAMP,80.96mm ID

2" flange banjo #fc200

9шт.

17

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" thick

10шт.

18

405785A1

ELBOW

poly 90º 1" flange x 3/4" hb

7шт.

19

406041A1

CLAMP,58.51mm

1" flange banjo #fc100

10шт.

20

86984085

PLUG,2" Flange Plug

2" Manifold

1шт.

21

405793A1

PLUG,1" Flange Plug with 1/4" FPT

poly 1 manifold x 1/4" fp

1шт.

22

86990474

FITTING

1/4" mpt x 3/8" hose stainless steel

1шт.

23

405787A1

TEE,1" Flanged Tee

poly 1 flange manifold

2шт.
