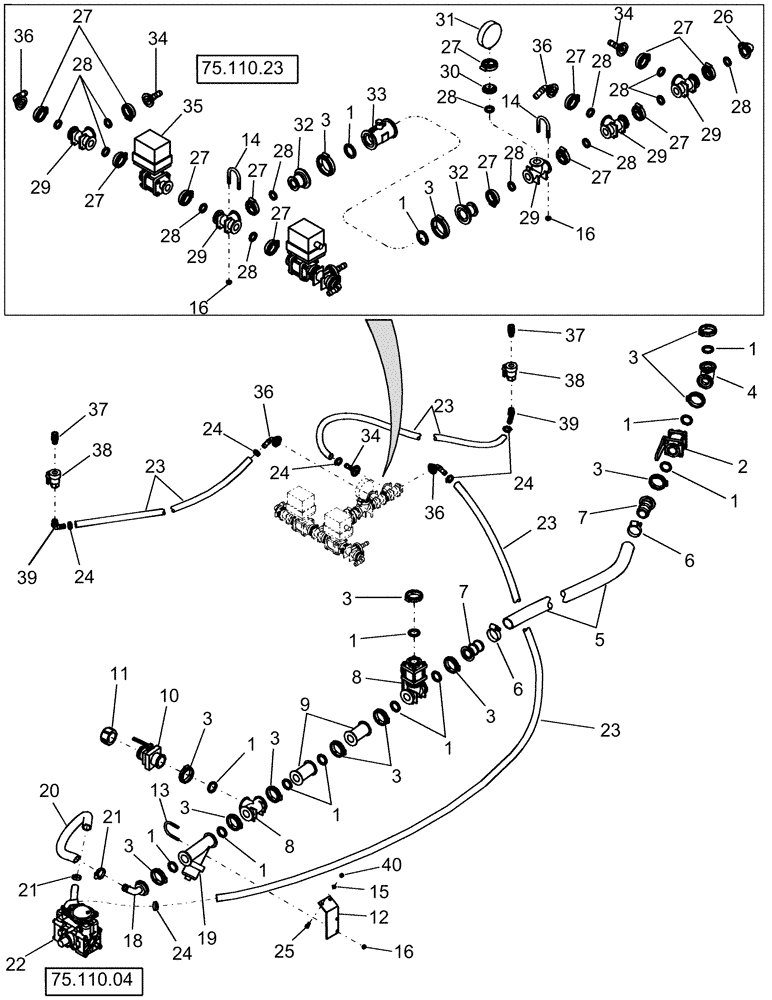

Запчасти Case IH 1240 (75.110.06) - LIQUID FERTILIZER SYSTEM WITH TANKS - FITTINGS AND VALVES (75) - SOIL PREPARATION

1

BN303204

GASKET,1-1/2" EPDM Gasket

2 7/32" od x 1 41/64" id x 1/4" thick

14шт.

12 row planter

1шт.

1

BN303204

GASKET,1-1/2" EPDM Gasket

2 7/32" od x 1 41/64" id x 1/4" thick

13шт.

16 row planter

1шт.

2

405800A1

VALVE,2" Flange Ball Valve

ball 2" flange bolted

1шт.

3

400502A1

CLAMP,80.96mm ID

2" flange banjo #fc200

14шт.

12 row planter

1шт.

3

400502A1

CLAMP,80.96mm ID

2" flange banjo #fc200

13шт.

16 row planter

1шт.

4

405782A1

COUPLING,2" x 2" 90 Degree Short Flange

poly 90º 2" flange x 2" flange coupling, short

1шт.

5

408352A1

HOSE

2" id wire suction

1шт.

6

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

2шт.

7

405780A1

FITTING,2" Flange x 2" Hose Barb

poly str 2 flng x 2 hb

2шт.

8

405779A1

TEE,2" Port Flanged Tee

Poly 2" Flange Manifold

2шт.

9

442255A1

COUPLING,2" x 2" Flange x 41/2"Long

poly 2 flange manifold

2шт.

12 row planter

1шт.

9

442255A1

COUPLING,2" x 2" Flange x 41/2"Long

poly 2 flange manifold

1шт.

16 row planter

1шт.

10

405801A1

VALVE,2" Flange x 2" Male Adapter

poly Stubby 2" connector

2шт.

11

405799A1

DUST CAP,2" Cap w/Short Arms

poly 2" cam lever coupling

1шт.

12

444324A2

BRACKET

filter support

1шт.

13

87413269

U-BOLT

ur 3/8"-16 x 2 1/2" wide x 4" deep ss with 1 3/4" thread

1шт.

14

86984624

BOLT,1"

ur 3/8" 1 11/16"w 2 3/4"d SS, 1 5/16" thread

2шт.

15

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

16

86985855

LOCK NUT

3/8"-16 ss 1-way, nylon insert

6шт.

17

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

18

405783A1

FITTING,2" Flange x 1-1/4" 90 Degree Hose Barb Elbow

poly 90º 2" flange x 1 1/4" hose barb

1шт.

19

405798A1

STRAINER ELEMENT,AAH

fitting poly y 2" line 80 mesh

1шт.

19

87413267

GASKET,2" EPDM Gasket

strainer

1шт.

19

87413266

SCREEN,80 Mesh Screen

Strainer 80 Mesh, Banjo Part# LS280, Blue

1шт.

20

86984447

HOSE,1.25" ID BULK x 100.00'

60"шт.

21

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

2шт.

22

403008A1

PUMP

diaphram low pressure

1шт.

22

87462811

SEAL KIT

pump o-ring complete 9910-KIT2365

1шт.

23

408355A1

HOSE,1.00" ID x 10.00"

Rubber

1шт.

24

86536660

HOSE CLAMP,25mm - 44mm

2шт.

25

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

16 row planter

1шт.

26

435587A1

FITTING,1" Flange x 1" 90 Degree Hose Barb Elbow

90º 1" manifold 1" hb

1шт.

27

406041A1

CLAMP,58.51mm

1" flange banjo #fc100

16шт.

28

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" thick

16шт.

29

405787A1

TEE,1" Flanged Tee

poly 1 flange manifold

6шт.

30

405793A1

PLUG,1" Flange Plug with 1/4" FPT

poly 1 manifold x 1/4" fp

1шт.

31

434048A1

GAUGE

pressure 0-60 PSI SSTL ammonia

1шт.

32

408349A1

REDUCER,2" Port x 1" Reducer Flange

poly str 2 flange 1" flange

2шт.

33

406037A2

METER

flow liquid fertilizer

1шт.

34

408351A1

FITTING,1" Flange x 3/4" Hose Barb

poly 1" manifold x 3/4" hb

3шт.

35

406039A1

SOLENOID VALVE,1" Electric Valve

control 2 section fertilizer

2шт.

Refer to Figure L.40.A [27] for details

1шт.

36

405785A1

ELBOW

poly 90º 1" flange x 3/4" hb

3шт.

37

405788A1

NIPPLE,3/4" Short Poly Nipple

poly nipple 3/4" mp 3/4" mp short

2шт.

38

405795A1

SHUT-OFF VALVE,3/4" Single Union Poly Valve

union 3/4" single

2шт.

39

328179A1

ELBOW

fitting poly 90° 3/4" mpt 3/4" mpt

2шт.

40

9628503

NUT,3/8"-16, G5

2шт.
