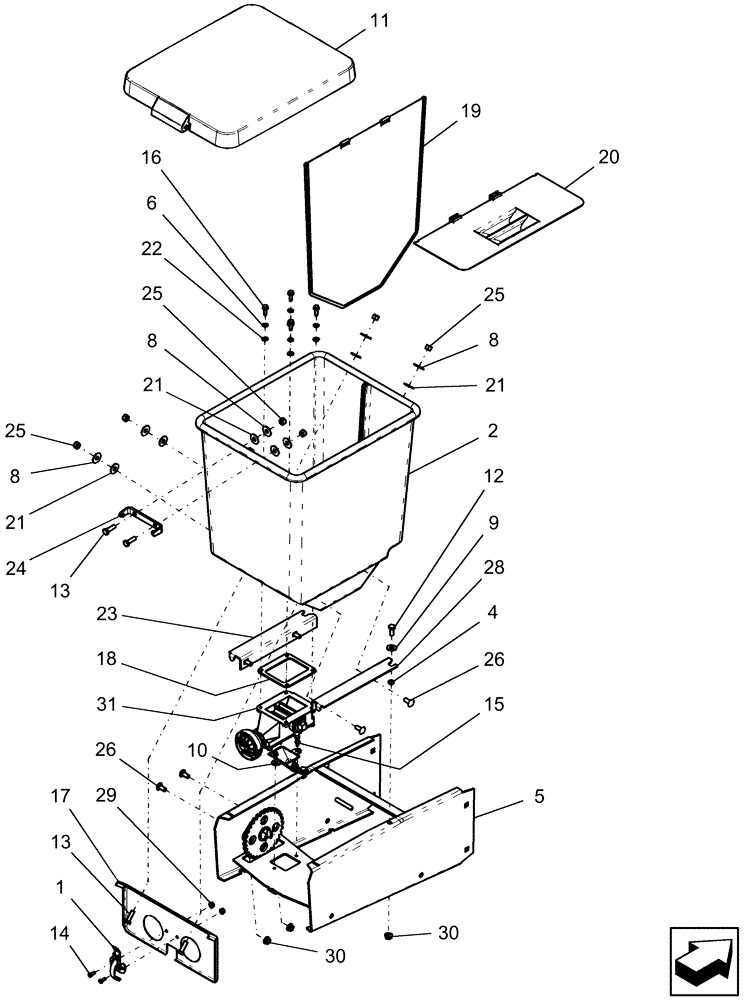

Артикул
Название
Примечание
Количество
1
5625
LATCH
clamp over center
1шт.
2
86991668
HOPPER
granular chemical
1шт.
4
87417490
WASHER,8.48mm ID x 12.7mm OD x 4mm Thk
.334" x .5" x .157"
2шт.
5
86990636
FRAME
granular hopper support
1шт.
6
86624137
WASHER,0.27" ID x 0.5" OD x 0.06" Thk
4шт.
10
137044C1
NECK FILLER
funnelok
1шт.
11
409683A1
COVER
hopper, granular chemical
1шт.
14
86624117
SCREW,Hex, #10 - 24 x 1/2"
2шт.
15
86624119
SELF-TAP SCREW,Hex Wash Hd, #12 x 3/8"
2шт.
16
86624115
SELF-TAP SCREW,HWH, 1/4" - 20 x 3/4"
4шт.
17
86990698
PLATE
support hopper
1шт.
18
134298C1
GASKET
hopper
1шт.
19
322859A3
DIVIDER
hopper
1шт.
20
333789A1
COVER
hopper divider
1шт.
21
134289C1
RUBBER WASHER
rubber
8шт.
22
134291C1
WASHER,7.1mm ID x 14mm OD x 1.52mm Thk
hopper
4шт.
23
86990645
RAIL ASSY.
hopper support LH
1шт.
24
333790A1
BRACKET
lid mounting
1шт.
26
280497
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd
6шт.
28
86990694
RAIL ASSY.
hopper support RH
1шт.
29
523310
SERRATED NUT,Flng, #10 - 24, Gr 5
flange, #10-24
2шт.
30
145458
SERRATED NUT,5/16"-18 GR 5 ZND
4шт.
31
137043C1
HOUSING
upper
1шт.
32
86624186
WASHER,0.41" ID x 1.12" OD x 0.13" Thk
, Start Year: 01-SEP-09
4шт.
Not shown - used on the 4 bolts that bolt the GC frame to the main row unit bathtub
1шт.
Выбрано товаров: 30
