(75.100.06) - TILLAGE ATTACHMENT BRACKET

Запчасти Case IH 1240 (75.100.06) - TILLAGE ATTACHMENT BRACKET (75) - SOIL PREPARATION

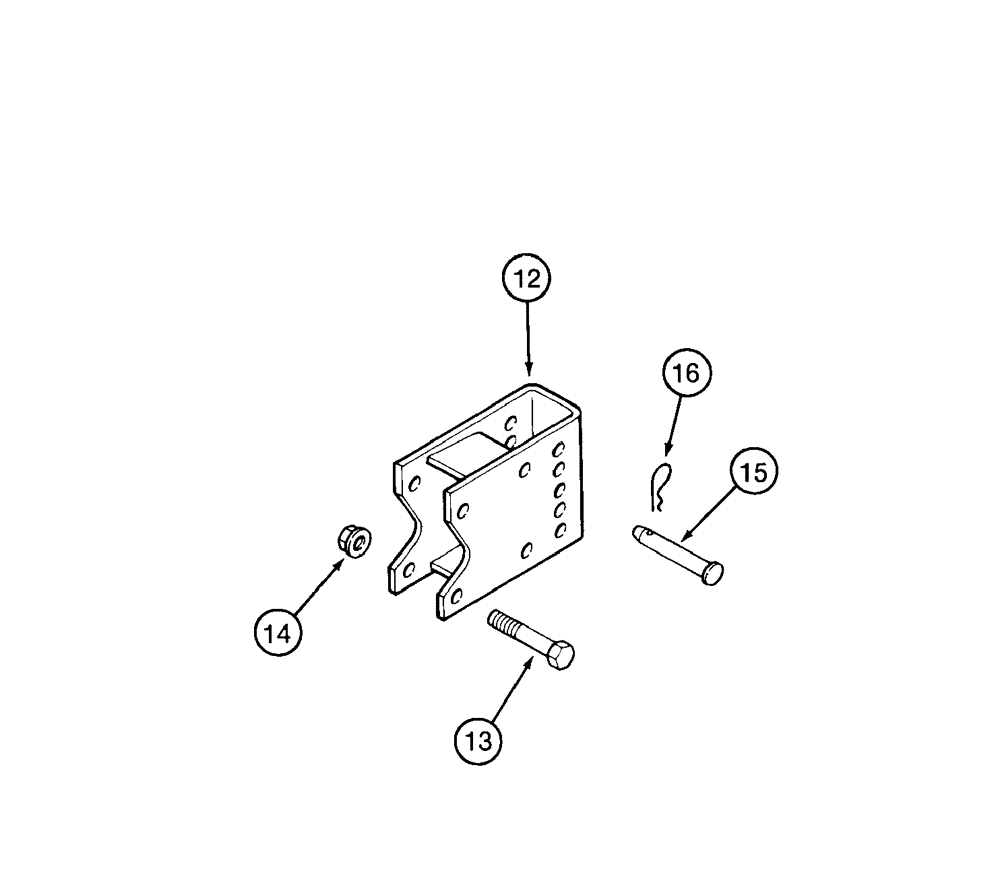

Схема запчастей Case IH 1240 - (75.100.06) - TILLAGE ATTACHMENT BRACKET (75) - SOIL PREPARATION
15
16
12
13
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

12

90974C1

BRACKET

tillage attachment

1шт.

13

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

14

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

15

147404C1

PIN,12.7mm OD x 83mm L

pointed, 1/2" x 3 1/4"

1шт.

16

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

1шт.
