(55.100.31) - ELECTRICAL - HARNESS 84427919, STACKER CLUTCH

Запчасти Case IH 1240 (55.100.31) - ELECTRICAL - HARNESS 84427919, STACKER CLUTCH (55) - ELECTRICAL SYSTEMS

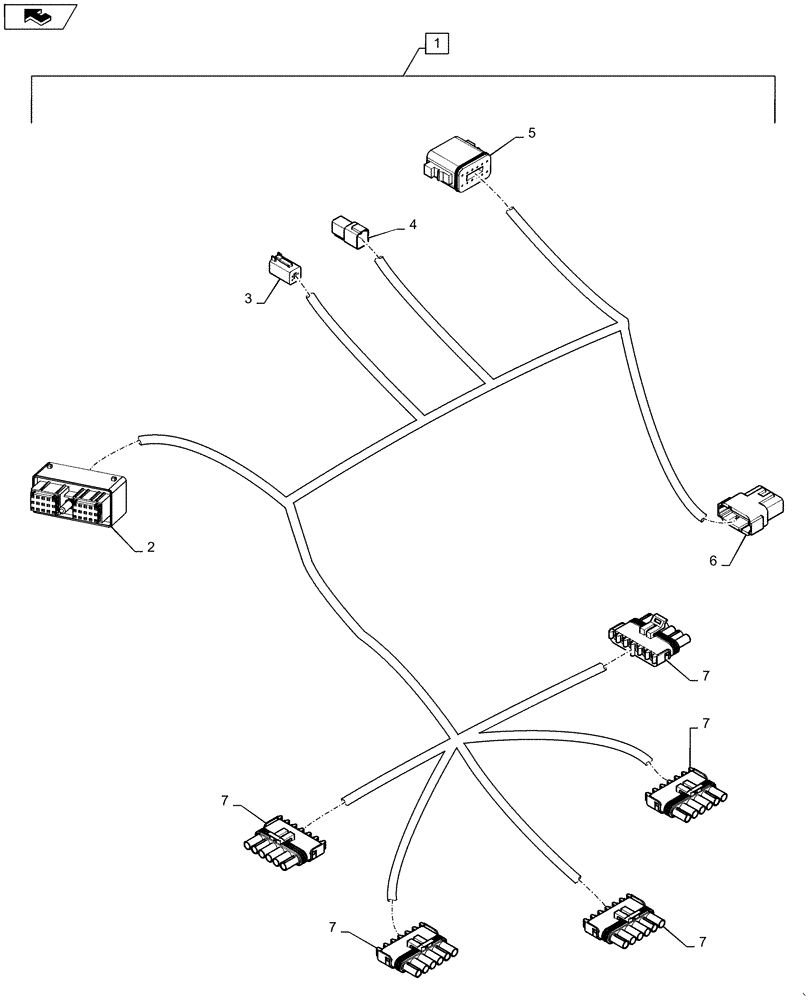

Схема запчастей Case IH 1240 - (55.100.31) - ELECTRICAL - HARNESS 84427919, STACKER CLUTCH (55) - ELECTRICAL SYSTEMS
7
2
7
1
5
home
7
7
3
4
6
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84427919

WIRE HARNESS

Stacker Clutch

1шт.

2

84138326

ELEC CONNECTOR

30-Pin, Clutch ECU

1шт.

3

87694153

CONTACT HOUSING,Female, 4 Cavities

4-Pin, CAN Terminator

1шт.

4

87694154

CONTACT HOUSING,Male, 4 Pole

4-Pin, CAN BUS In

1шт.

5

NSS

NOT SOLD SEPARAT

CONNECTOR, 6-Pin, ECU 2 Out

1шт.

6

NSS

NOT SOLD SEPARAT

CONNECTOR, 6-Pin, ECU 2 In

1шт.

7

87692879

MULTIPOLE CONNECTOR,Female, 6 Pole

6-Pin

5шт.
