(55.100.29) - ELECTRICAL - COMPRESSOR TRACTOR HARNESS 84170857

Запчасти Case IH 1240 (55.100.29) - ELECTRICAL - COMPRESSOR TRACTOR HARNESS 84170857 (55) - ELECTRICAL SYSTEMS

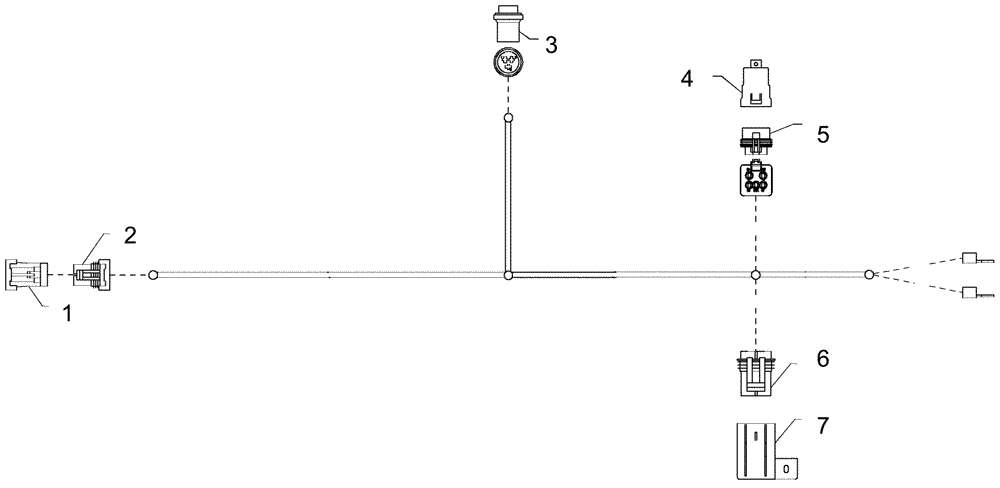

Схема запчастей Case IH 1240 - (55.100.29) - ELECTRICAL - COMPRESSOR TRACTOR HARNESS 84170857 (55) - ELECTRICAL SYSTEMS
3
6
5
1
4
2
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

84170857

HARNESS

compressor tractor

1шт.

1

292549A1

CONNECTOR, ELEC

CONNECTOR plastic 2c receptacle

1шт.

2

87688710

MULTIPOLE CONNECTOR,Female, 2 Pole

1шт.

3

87675194

MULTIPOLE CONNECTOR,Female, 3 Pole

plastic 3c plug

1шт.

4

293256A2

RELAY,12V

12v 40 amp weatherproof

1шт.

5

87697770

MULTIPOLE CONNECTOR,Female, 5 Pole

1шт.

6

87688712

WIRE CONNECTOR,Female

1шт.

7

87688863

CAP

1шт.
