(55.100.25) - ELECTRICAL - HARNESS 398139A2, LIQUID FERTILIZER

Запчасти Case IH 1240 (55.100.25) - ELECTRICAL - HARNESS 398139A2, LIQUID FERTILIZER (55) - ELECTRICAL SYSTEMS

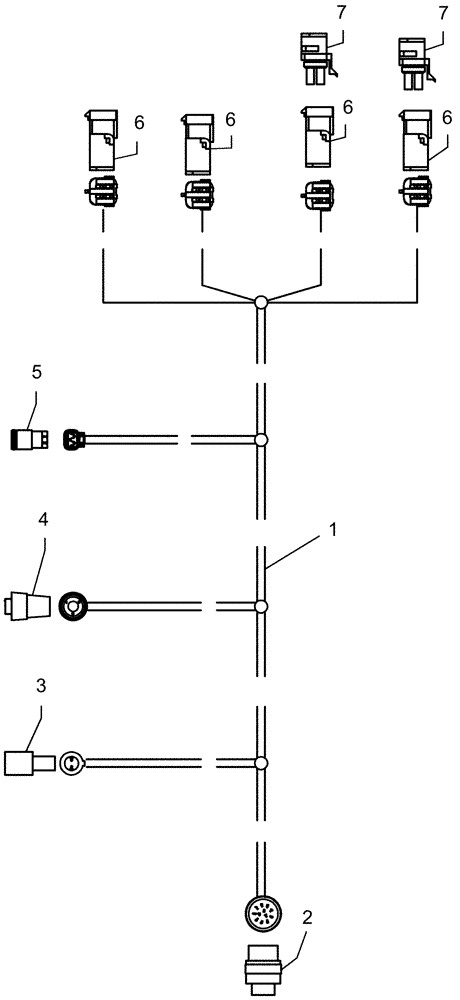

Схема запчастей Case IH 1240 - (55.100.25) - ELECTRICAL - HARNESS 398139A2, LIQUID FERTILIZER (55) - ELECTRICAL SYSTEMS
7
6
6
3
1
7
6
2
4
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

398139A2

HARNESS

liquid fertilizer

1шт.

2

396603A1

MULTIPOLE CONNECTOR,Female, 12 Pin

ITT Cannon Neptune 0-12 pin reversed plug

1шт.

3

1160577C1

ELEC CONNECTOR,Female, 2 Pin

CONNECTOR 2 contact

1шт.

4

339889A1

ELEC CONNECTOR,Male, 3 Pin

electrical, 3 cavity

1шт.

5

225316C1

ELEC CONNECTOR,Female, 2 Pin

2 Cavity

1шт.

6

245716C1

ELEC CONNECTOR,Male, 4 Pin

plastic 4c receptacle

4шт.

7

245715C1

ELEC CONNECTOR,4 Pin

plastic 4c plug

2шт.
