(55.100.20) - ELECTRICAL - HARNESS 87363746, EXTENSION FOR CODI DISPLAY

Запчасти Case IH 1240 (55.100.20) - ELECTRICAL - HARNESS 87363746, EXTENSION FOR CODI DISPLAY (55) - ELECTRICAL SYSTEMS

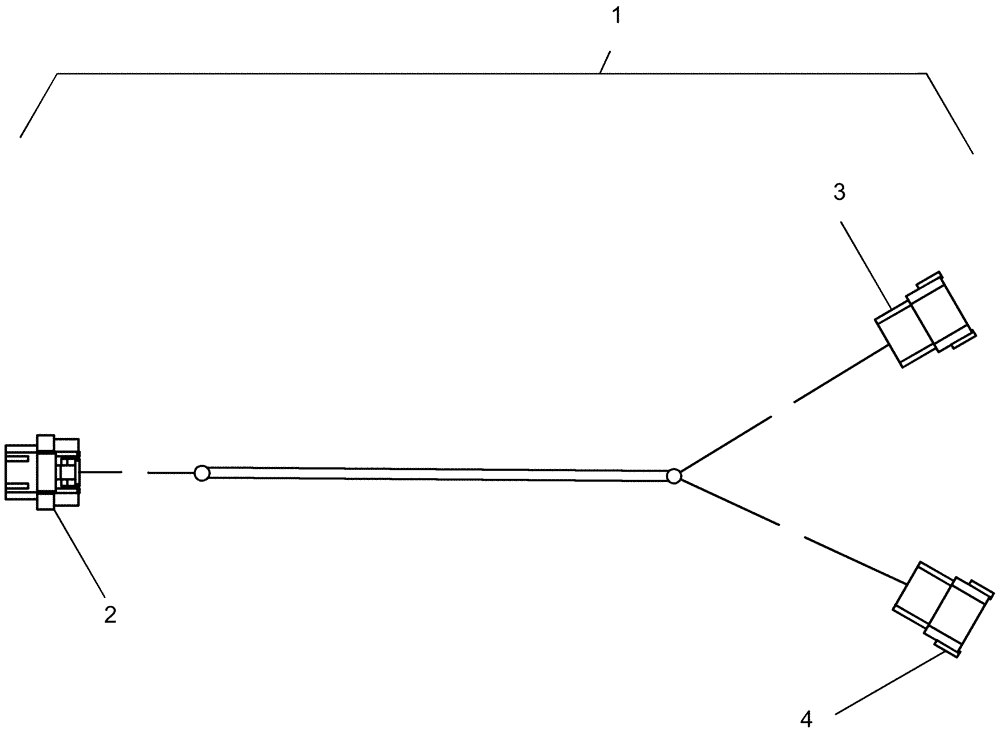

Схема запчастей Case IH 1240 - (55.100.20) - ELECTRICAL - HARNESS 87363746, EXTENSION FOR CODI DISPLAY (55) - ELECTRICAL SYSTEMS
4
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87363746

HARNESS

display extension

1шт.

2

87410948

CONTACT HOUSING,Female, 26 Pole

Super Seal Plug Housing

1шт.

3

223672A1

MULTIPOLE CONNECTOR,Male, 12 Pin

elec plastic 12c receptacle

1шт.

4

223682A1

ELEC CONNECTOR

12 Pin

1шт.

Выбрано товаров: 4
