(55.100.17) - ELECTRICAL - HARNESS 87538543, PT FRAME, ISOBUS

Запчасти Case IH 1240 (55.100.17) - ELECTRICAL - HARNESS 87538543, PT FRAME, ISOBUS (55) - ELECTRICAL SYSTEMS

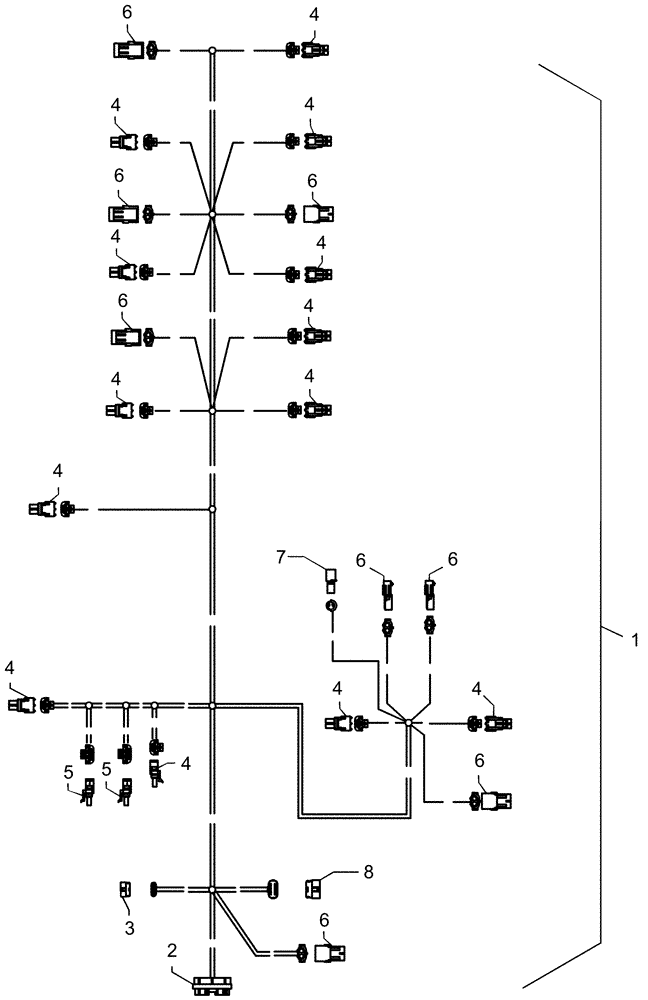

Схема запчастей Case IH 1240 - (55.100.17) - ELECTRICAL - HARNESS 87538543, PT FRAME, ISOBUS (55) - ELECTRICAL SYSTEMS
6
4
4
5
4
6
6
4
4
4
6
6
6
3
4
6
7
4
4
4
1
8
2
5
4
6
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87538543

HARNESS

pt frame, ISOBUS

1шт.

2

87268798

MULTIPOLE CONNECTOR,Female, 30 Pole

30c plug b key

1шт.

3

87541128

ELEC CONNECTOR,Male

1шт.

4

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

13шт.

5

87644909

WIRE CONNECTOR,Female, 3 Pins

plastic 3c plug

2шт.

6

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

plastic 2c receptacle

8шт.

7

1160576C1

ELEC CONNECTOR,Male, 2 Pin

2 contact

1шт.

8

87533278

ELEC CONNECTOR,Male

1шт.
