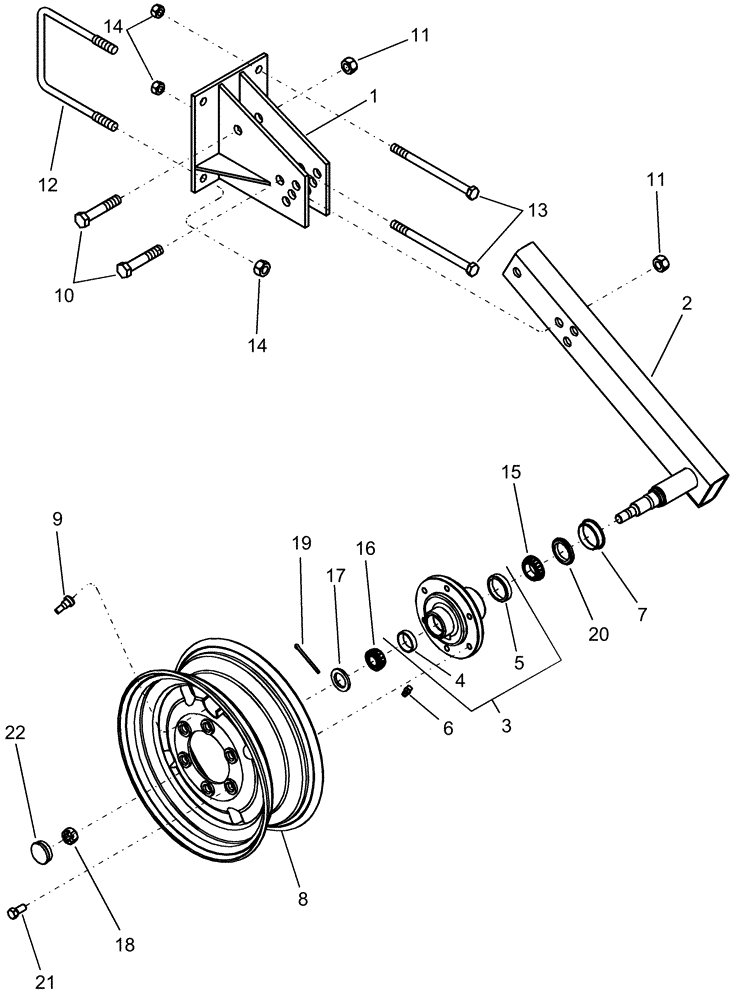

Запчасти Case IH 1240 (44.520.02) - CARRYING WHEELS - WING, 12 ROW, 12/23 ROW, 16 ROW, 16/31 ROW & 24 ROW (44) - WHEELS

1

427733A1

BRACKET

wheel mounting

1шт.

2

427735A1

TUBE

assembly carrying wheel

1шт.

3

427737A1

HUB

assembly, 6 bolt light

1шт.

Includes Refs. 4 and 5

1шт.

4

36725

BEARING CUP,45.26mm OD x 12.06mm W

#LM11910

1шт.

5

36723

BEARING CUP,59.16mm OD x 11.81mm W

#LM67010

1шт.

6

87414

LUBE NIPPLE,1/4" - 28

1шт.

7

472222R1

SLEEVE

wear 2.33" od

1шт.

8a

87504818

WHEEL ASSY

15X8 6H WITH 9.5L-15SL 8P +0.50 OFFSET

1шт.

8b

1980928C1

TYRE/TIRE

9.5l-15sl 8pr

1шт.

8

349203A1

WHEEL

15 X 5 6H with valve guard

1шт.

8

87502457

WHEEL

15x8 6hole W/VG+0.50 off CTD #15081-0627N4U

1шт.

Requires 9.5L x 15 tire

1шт.

9

196033

VALVE STEM

tr/415

1шт.

9a

84203972

TIRE TUBE

15/9.5L-15SL/R15

1шт.

For use with 87504818

1шт.

10

280210

BOLT,Hex, 3/4"-10 x 4", G5

2шт.

11

280954

NUT,3/4"-10, G5

2шт.

12

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

1шт.

12 row and 16 row planters

1шт.

12

142583A1

U-BOLT

us 5/8"-11 7"w 4 7/32"d G5 2" thread

1шт.

24 row planter

1шт.

13

86622984

BOLT,Hex, 5/8" - 11 x 9", Gr 5

2шт.

12/23 row and 16/31 row planters

1шт.

12 row and 16 row planters

1шт.

14

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

15

36726

BEARING CONE,31.75mm ID x 16.76mm W

#LM67048

1шт.

15

84356153GV

BEARING

Value

1шт.

16

36724

BEARING CONE,19.07mm ID x 16.64mm W

#LM11949

1шт.

17

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

13/16"id 1 1/4" 1/8" blk hardened

1шт.

18

88886

SLOTTED NUT,3/4"-16

1шт.

19

80708

COTTER PIN,1/8" x 1 1/2"

1шт.

20

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

hub oil 1.558" id

1шт.

21

198056

WHEEL BOLT,1/2" - 20 x 1.031"

6шт.

22

427741A1

HUB CAP

1шт.
