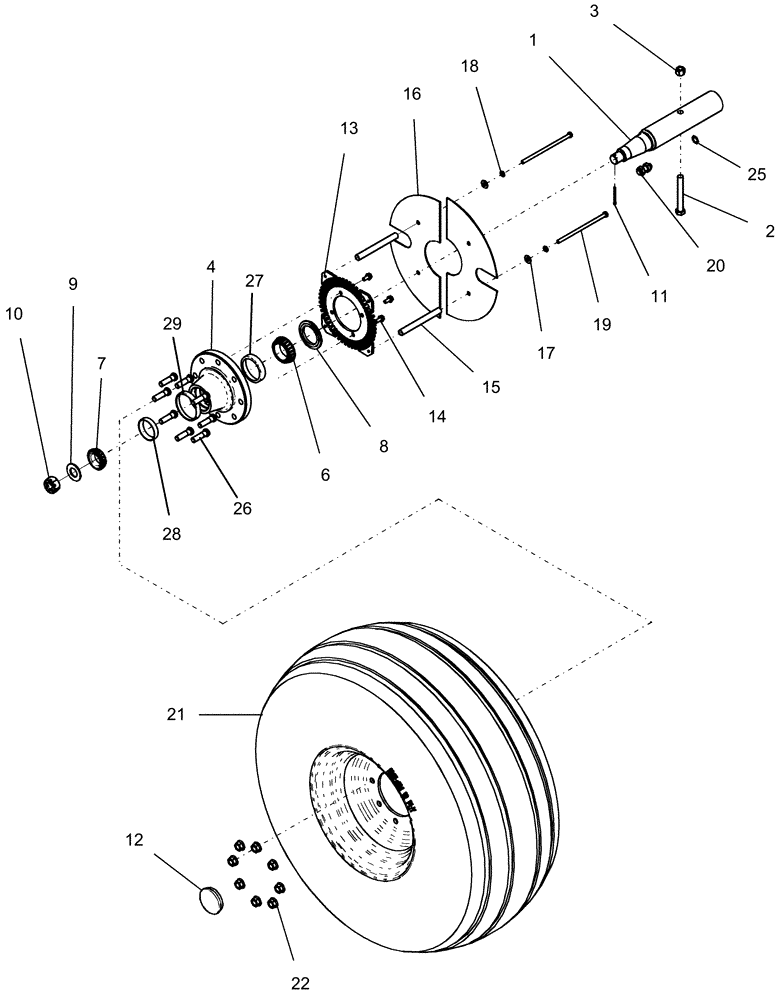

Запчасти Case IH 1240 (44.520.01) - CARRYING WHEELS - MAIN FRAME, 12 ROW, 16 ROW, 12/23 ROW, 16/31 ROW & 24 ROW (44) - WHEELS

1

87454025

STUB AXLE/STEERING S

8 bolt - 2.73" x 17.36"

4шт.

2

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

4шт.

3

85700693

NUT,5/8" - 11, Gr C

4шт.

4

427953A1

HUB

guide wheel

4шт.

6

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

#JLM506849 NTN

4шт.

7

86512015

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

Cup & Cone

4шт.

8

169329C91

OIL SEAL,63.3mm ID x 95.81mm OD x 8mm Thk

oil 3.77"od x 2.49"id

4шт.

9

86632593

WASHER,1.19" ID x 2.25" OD x 0.13" Thk

4шт.

10

86632555

SLOTTED NUT,1 1/8"-12, G5

4шт.

11

87400

COTTER PIN,3/16" x 2"

4шт.

12

560950R1

HUB CAP

dust 3 1/8" od

4шт.

13

87419220

SPROCKET

LC 50 tooth speed sensor

2шт.

14

255918

BOLT,Hex Serr, 3/8" - 16 x 3/4", 5SPL, Full Thd

8шт.

15

87424040

SPACER

5/8"id x 23/32"od x 6 5/8"

8шт.

16

427959A1

COVER

wheel

4шт.

17

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

8шт.

18

80680

LOCK WASHER,3/8 0.381 CST ZND

8шт.

19

86505981

BOLT,Hex, 3/8" - 16 x 8", Gr 5

8шт.

20

324049A1

SENSOR

speed hall

2шт.

21

PL

PROCURE LOCALLY

TIRE 16.5LX16.1SL 10PR

4шт.

12 row and 16 row planters

1шт.

21

PL

PROCURE LOCALLY

TIRE 16.5LX16.1SL 14PR

4шт.

12/23 row, 16/31 row and 24 row planters

1шт.

21

86991475

WHEEL

W14" x 16" 8-hole 2 9/32" outset

4шт.

12 row and 16 row planters

1шт.

12/23 row, 16/31 row and 24 row planters

1шт.

21

410703A1

VALVE

tire stem TR/511

4шт.

22

87010568

FLANGE NUT,Flg, 5/8"-18, G5

32шт.

24

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

4шт.

Not Shown

1шт.

25

86977690

LOCK WASHER,Ext Tooth, 5/8"

2шт.

For use with sensor 324049A1

1шт.

26

366021R2

BOLT,Round, 5/8" - 18 x 2 1/4"

stud 5/8" -18 GR8 2 1/4" long

8шт.

27

625743C1

BEARING CUP,90mm OD x 18.5mm W

#JLM506810 roller taper

1шт.

28

663558R1

BEARING CUP

#LM501310

1шт.

29

169328C1

SLEEVE

wear 3.762" od 3.5" id

1шт.
