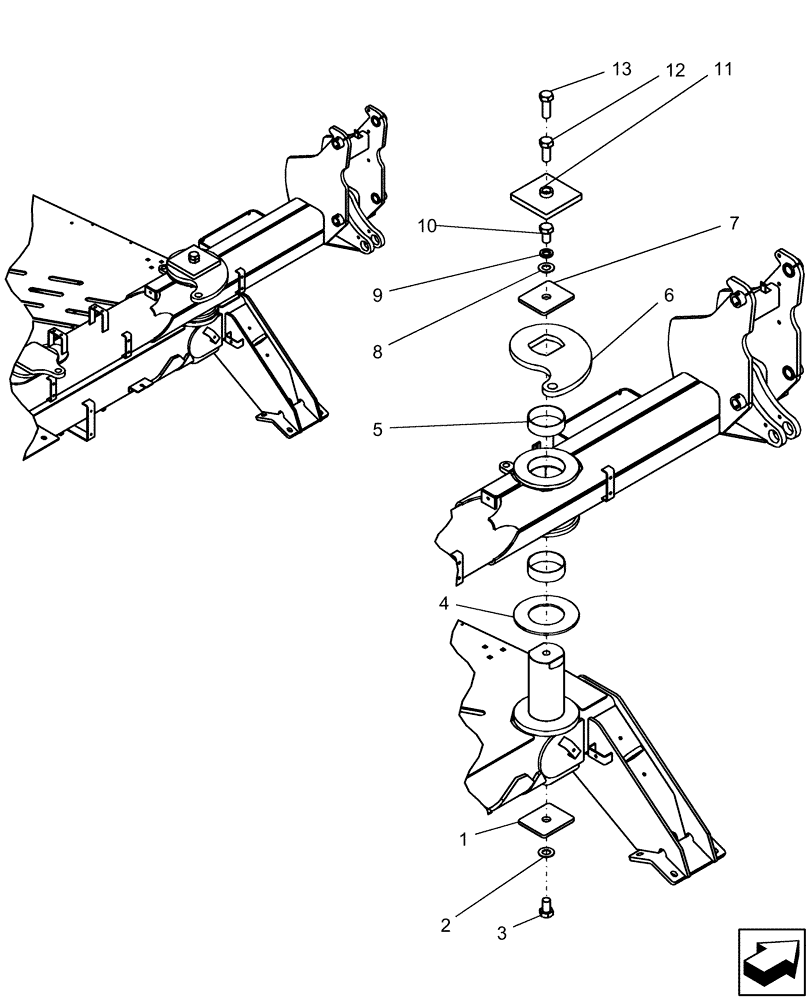

Запчасти Case IH 1240 (39.110.19) - FRAME - PIVOT PLATE AND PIN ASSEMBLY (39) - FRAMES AND BALLASTING

1

427853A1

PLATE

retaining cap

1шт.

2

496-11131

WASHER,1 5/16" x 2 1/2" x .150", HDN

1шт.

3

87023127

BOLT,Hex, 1 1/4" - 7 x 2", Gr 8, Full Thd

1шт.

4

441100A1

WASHER,144.3mm ID x 264mm OD x 9.53mm Thk

carrier rotating bar

1шт.

Heavy rotating bar

1шт.

4

398208A2

WASHER,128.5mm ID x 264mm OD x 9.53mm Thk

poly 10 19/32"od x 3/8" thk

1шт.

Light rotating bar

1шт.

5

87414355

BUSHING,143.1mm ID x 149.4mm OD x 47.6mm L

Garmax 5 7/8" x 5 5/8" x 1 7/8"

2шт.

Heavy rotating bar

1шт.

5

394815A1

BUSHING

Garmax 5 1/2" x 5 x 1 3/8" lg

2шт.

Light rotating bar

1шт.

6

441209A1

PLATE

15" Pivot Arm

1шт.

Heavy rotating bar

1шт.

6

427705A1

ARM

plate, pivot

1шт.

Light rotating bar

1шт.

7

427853A1

PLATE

retaining cap

1шт.

8

496-11131

WASHER,1 5/16" x 2 1/2" x .150", HDN

1шт.

9

84086

LOCK WASHER,32.08mm ID x 45.47mm OD x 7.95mm Thk

1шт.

10

87023127

BOLT,Hex, 1 1/4" - 7 x 2", Gr 8, Full Thd

1шт.

11

NSS

NOT SOLD SEPARAT

Tool

1шт.

12

426-2048

BOLT,Hex, 1-1/4" - 7 x 3", Gr 8

1шт.

13

7036

BOLT,Hex, 1 1/4" - 12 x 3 1/2", Gr 8

1.25 X 3.5 UNF GR8 YZD

1шт.
