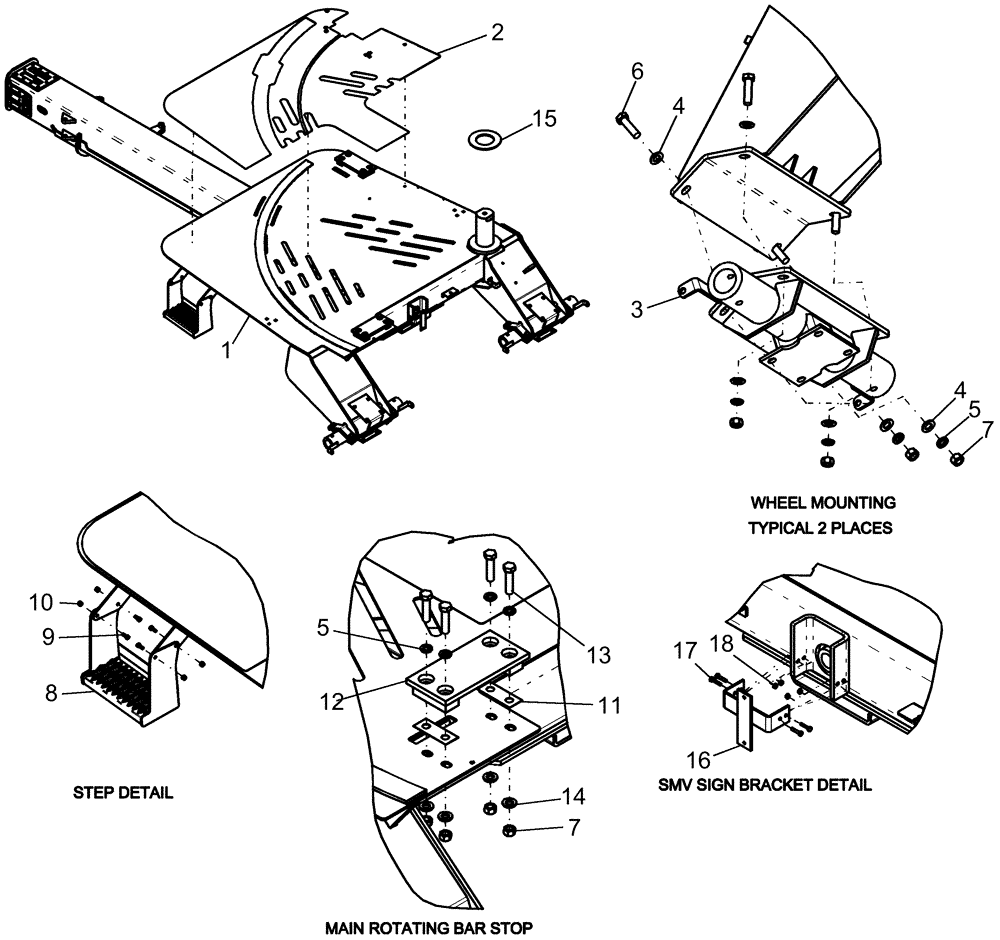

Запчасти Case IH 1240 (39.110.18) - 24 ROW HYDRAULIC CARRIER FRAME HITCH ASSEMBLY (39) - FRAMES AND BALLASTING

1

87521782

FRAME

24R20

1шт.

2

87401429

SHEET

non-skid platform

1шт.

3

87414636

MOUNTING PARTS

wheel spindle - 20"

2шт.

4

86632591

WASHER,0.81" ID x 1.5" OD x 0.13" Thk

16шт.

5

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

16шт.

6

280344

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 8

8шт.

7

86518194

NUT,3/4"-10, G8

16шт.

8

87460241

STEP

main frame

1шт.

9

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

10

231-1446

NUT,3/8" - 16, Gr 5

4шт.

11

427859A1

SHIM

stop block

4шт.

12

427861A1

BLOCK

stop

2шт.

13

280128

BOLT,Hex, 3/4" - 10 x 3", Gr 8

8шт.

14

86624163

WASHER,0.81" ID x 1.5" OD x 0.22" Thk

8шт.

15

441100A1

WASHER,144.3mm ID x 264mm OD x 9.53mm Thk

carrier rotating bar

1шт.

16

87632392

BRACKET

slow moving vehicle

1шт.

17

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

4шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.
