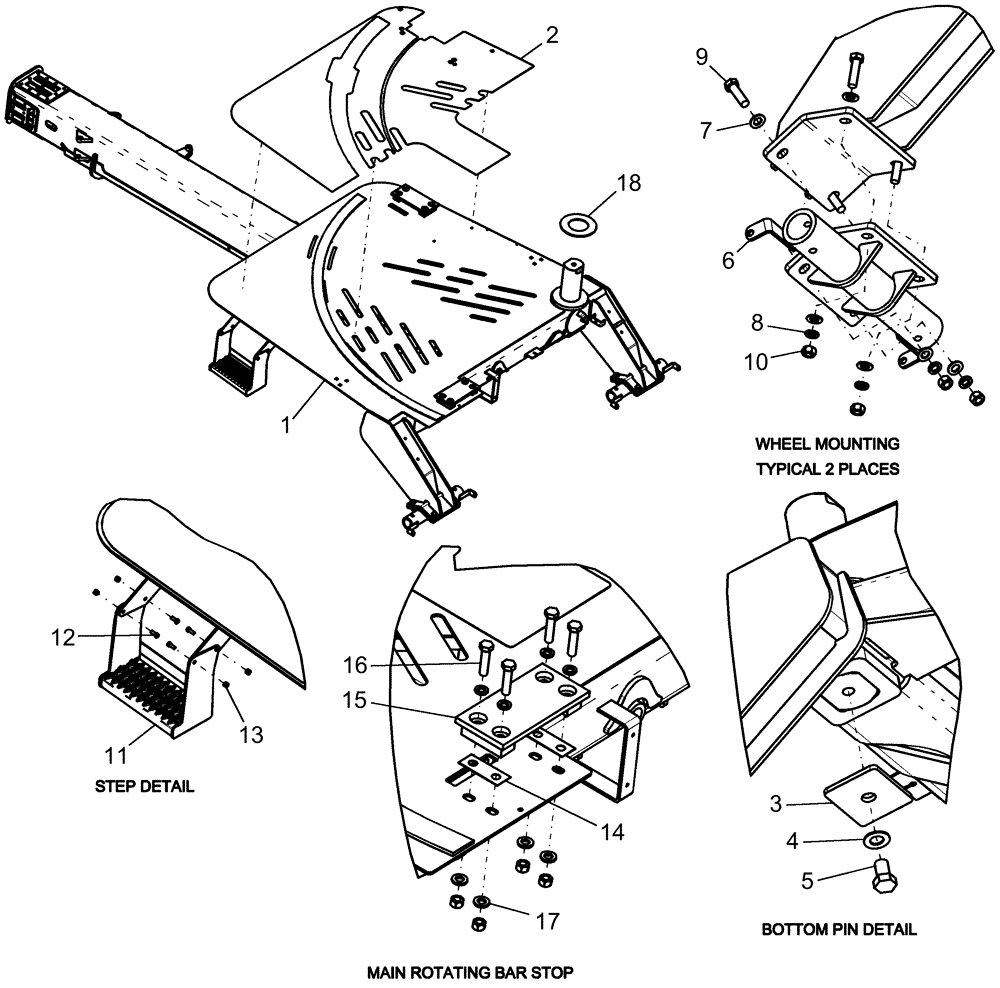

Запчасти Case IH 1240 (39.110.17) - 12 ROW, 16 ROW, 12/23 ROW & 16/31 ROW HYDRAULIC CARRIER FRAME HITCH ASSEMBLY (39) - FRAMES AND BALLASTING

1

87523797

FRAME

16R31

1шт.

16/31 row planter

1шт.

1

87523818

FRAME

12R20

1шт.

12 row planter

1шт.

1

87539887

FRAME

12R23

1шт.

12/23 row planter

1шт.

1

87523797

FRAME

16R31

1шт.

16 row planter

1шт.

2

87401429

SHEET

non-skid platform

1шт.

3

427853A1

PLATE

retaining cap

1шт.

4

496-11131

WASHER,1 5/16" x 2 1/2" x .150", HDN

1шт.

5

87023127

BOLT,Hex, 1 1/4" - 7 x 2", Gr 8, Full Thd

1шт.

6

427855A1

MOUNTING PARTS

assembly wheel spindle

2шт.

7

86632591

WASHER,0.81" ID x 1.5" OD x 0.13" Thk

16шт.

8

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

16шт.

9

280344

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 8

8шт.

10

86518194

NUT,3/4"-10, G8

16шт.

11

87460241

STEP

main frame

1шт.

12

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

13

231-1446

NUT,3/8" - 16, Gr 5

4шт.

14

427859A1

SHIM

stop block

4шт.

15

427861A1

BLOCK

stop

2шт.

16

280128

BOLT,Hex, 3/4" - 10 x 3", Gr 8

8шт.

17

86624163

WASHER,0.81" ID x 1.5" OD x 0.22" Thk

8шт.

18

441100A1

WASHER,144.3mm ID x 264mm OD x 9.53mm Thk

carrier rotating bar

1шт.

12/23 row and 16/31 row planters

1шт.

18

398208A2

WASHER,128.5mm ID x 264mm OD x 9.53mm Thk

poly 10 19/32"od x 3/8" thk

1шт.

12 row and 16 row planters

1шт.
