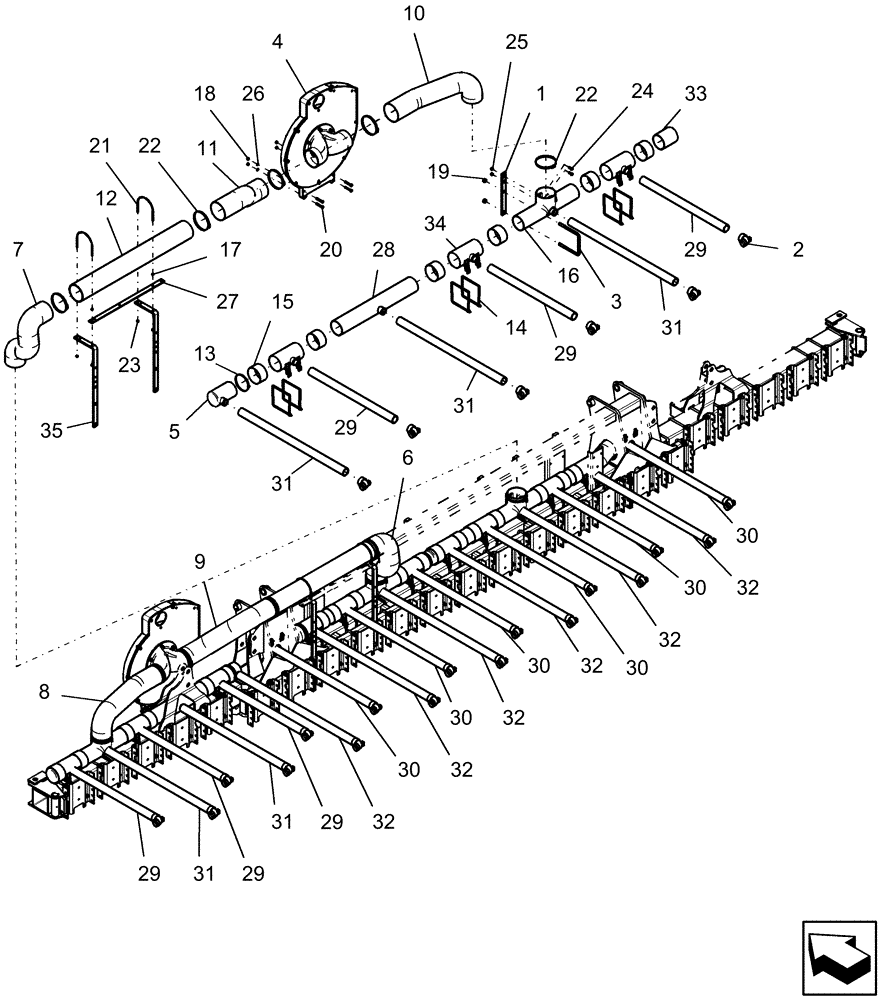

Запчасти Case IH 1240 (39.110.13) - VACUUM AIR SYSTEM - 12/23 ROW (39) - FRAMES AND BALLASTING
№
Артикул
Название
Примечание
Количество
1
86991575
BRACKET
4-way tee mounting
4шт.
2
87500119
TUBE
90º 50 mm - vacuum
23шт.
3
1250813C1
U-BOLT
us 5/8"-11 x 7" x 8 1/4", G5, 2" thread
20шт.
4
REF
INSTRUCTION
FAN ASM VACUUM 6IN INLET
2шт.
5
446492A1
CAP
2" tee
2шт.
6
86988929
INTAKE AIR HOSE
6" flex bulk item
1шт.
7
86988929
INTAKE AIR HOSE
6" flex bulk item
1шт.
8
86988929
INTAKE AIR HOSE
6" flex bulk item
1шт.
9
86988929
INTAKE AIR HOSE
6" flex bulk item
1шт.
10
86988929
INTAKE AIR HOSE
6" flex bulk item
1шт.
11
86988929
INTAKE AIR HOSE
6" flex bulk item
1шт.
6 - 11
86988929
INTAKE AIR HOSE
6" flex bulk item
1шт.
12
87502313
TUBE,6 mm OD x 48 mm L
6" od x 48"
2шт.
13
87557087
CABLE TIE
CABLE STRAP 11" with stainless locking clip
2шт.
14
112620A1
CABLE TIE
CABLE STRAP 34"
26шт.
15
447175A3
SLEEVE
manifold seal
26шт.
16
86988117
TEE
4-way
4шт.
17
7770
NUT,Hex, 1/4 - 20, Cl 5
4шт.
18
9628503
NUT,3/8"-16, G5
17шт.
21
87427116
U-BOLT
ur 1/4" 6 17/32"w 6 25/32"d yzd with 1 1/2" thread
4шт.
22
214-14104
HOSE CLAMP,155.45mm - 177.8mm
12шт.
23
86625061
NUT,1/4"-20, GB
8шт.
24
9706726
BOLT,Hex Flg, 3/8" - 16 x 1"
8шт.
25
247780
SERRATED NUT,Flg, USR, 3/8"-16
24шт.
26
80680
LOCK WASHER,3/8 0.381 CST ZND
26шт.
27
444186A1
SUPPORT TUBE
tube support
2шт.
28
87417935
TEE
vacuum manifold, long
2шт.
29
87501726
HOSE
vacuum 2" x 50' bulk
1шт.
Cut 927 mm length from bulk hose
1шт.
30
87501726
HOSE
vacuum 2" x 50' bulk
1шт.
Cut 1107 mm length from bulk hose
1шт.
31
87501726
HOSE
vacuum 2" x 50' bulk
1шт.
Cut 1157 mm length from bulk hose
1шт.
32
87501726
HOSE
vacuum 2" x 50' bulk
1шт.
Cut 1307 mm length from bulk hose
1шт.
33
87417934
PLUG
vacuum manifold
6шт.
34
446603A2
TEE
Vacuum Manifold
15шт.
35
427745A2
BAR
vacuum support
4шт.
100
446682A1
CAP
vacuum hose
1шт.
This cap is used to cap the vacuum manifold to individual split rows when planting corn.
1шт.
Not Shown
1шт.
Выбрано товаров: 43
