Запчасти Case IH 1240 (39.110.12) - VACUUM AIR SYSTEM - 16 ROW (39) - FRAMES AND BALLASTING

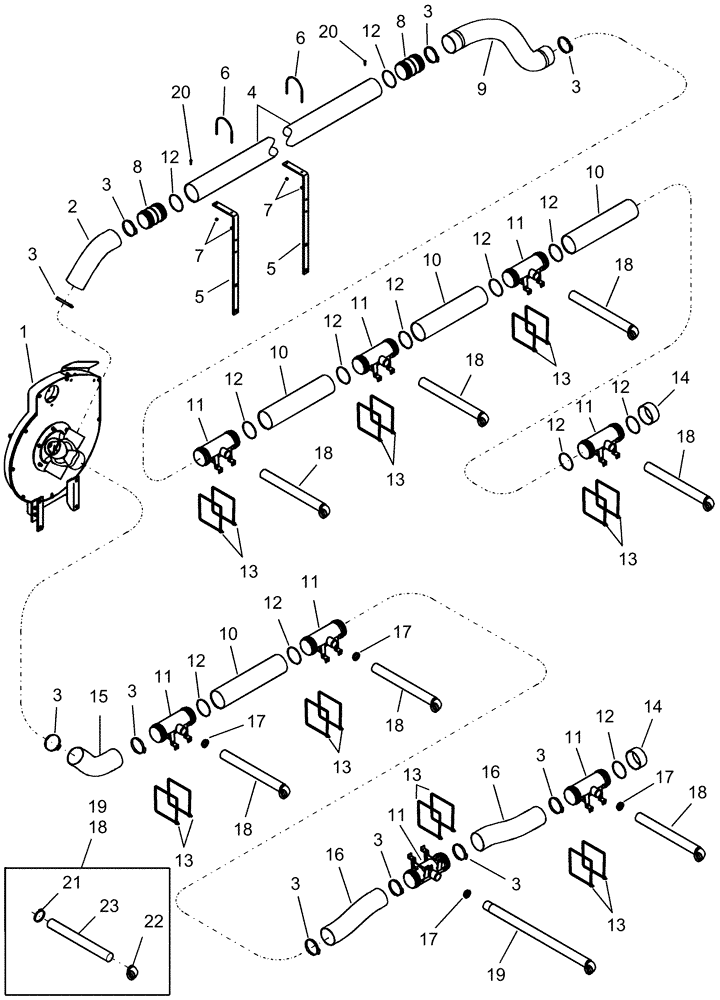

Схема запчастей Case IH 1240 - (39.110.12) - VACUUM AIR SYSTEM - 16 ROW (39) - FRAMES AND BALLASTING
15
11
18
13
13
3
12
3
10
7
4
16
10
18
13
12
13
18
23
11
20
19
10
7
17
13
12
12
6
12
12
11
12
10
12
20
11
18
18
3
21
12
11
8
5
8
17
16
3
18
11
9
13
18
3
19
3
12
22
17
13
3
3
12
6
17
12
3
18
13
2
11
5
14
11
14
1
3

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

FAN ASSY.

1шт.

2

393045A1

HOSE,114.30 mm ID x 430.00 mm

Flex

2шт.

Cut from 362013A1

1шт.

2

362013A1

HOSE,114.30 mm ID x 7620.00 mm

1шт.

3

9706924

HOSE CLAMP,103.1mm - 127mm

20шт.

4

391886A1

TUBE,116.88 mm ID, 125 mm OD

vacuum 5" x 2010 mm long

2шт.

Cut from 362014A1

1шт.

4

362014A1

TUBE,116.88 mm ID, 125 mm OD, 6096 mm Length

vacuum 5" x 6096 mm (20' roll)

1шт.

5

427745A2

BAR

vacuum support

4шт.

6

392969A1

U-BOLT

BOLT "U" ur 1/4"-20 5 9/32" w 5 25/32" d 1 25/32" thread, vacuum system

4шт.

7

7770

NUT,Hex, 1/4 - 20, Cl 5

8шт.

8

392979A1

FITTING

pvc connector 4"

4шт.

9

409368A1

HOSE

flex 4 1/2" x 1120 mm

2шт.

Cut from 362013A1

1шт.

9

362013A1

HOSE,114.30 mm ID x 7620.00 mm

1шт.

10

301441A1

TUBE,116.88 mm ID, 125 mm OD, 556 mm Length

vacuum 5" x 556 mm long

8шт.

Cut from 362014A1

1шт.

10

362014A1

TUBE,116.88 mm ID, 125 mm OD, 6096 mm Length

vacuum 5" x 6096 mm (20' roll)

1шт.

11

300766A1

TEE

vacuum manifold

16шт.

12

238-3347

O-RING,4.225" ID x 4.645" OD x 0.21"

24шт.

13

112620A1

CABLE TIE

CABLE STRAP 34"

32шт.

14

300767A1

CAP

vacuum manifold end

4шт.

15

393046A1

HOSE,114.30 mm ID x 370.00 mm

Flex

2шт.

Cut from 362013A1

1шт.

16

393047A1

HOSE,114.30 mm ID x 560.00 mm

Flex

4шт.

Cut from 362013A1

1шт.

15-16

362013A1

HOSE,114.30 mm ID x 7620.00 mm

1шт.

17

305519A1

PLUG

vacuum manifold restriction

8шт.

18

87501732

HOSE

vacuum with elbow - 960

14шт.

Includes Refs. 22 and 23

1шт.

19

87501733

HOSE

vacuum with elbow - 1000

2шт.

Includes Refs. 22 and 23

1шт.

20

87023137

SELF-TAP SCREW,Hex Wash Hd, #12 x 1"

4шт.

21

82012728

COLLAR,50mm - 65mm, Worm Gear

16шт.

22

87500119

TUBE

90º 50 mm - vacuum

16шт.

23

87501726

HOSE

vacuum 2" x 50' bulk

14шт.

23

87501726

HOSE

vacuum 2" x 50' bulk

2шт.

Выбрано товаров: 37
