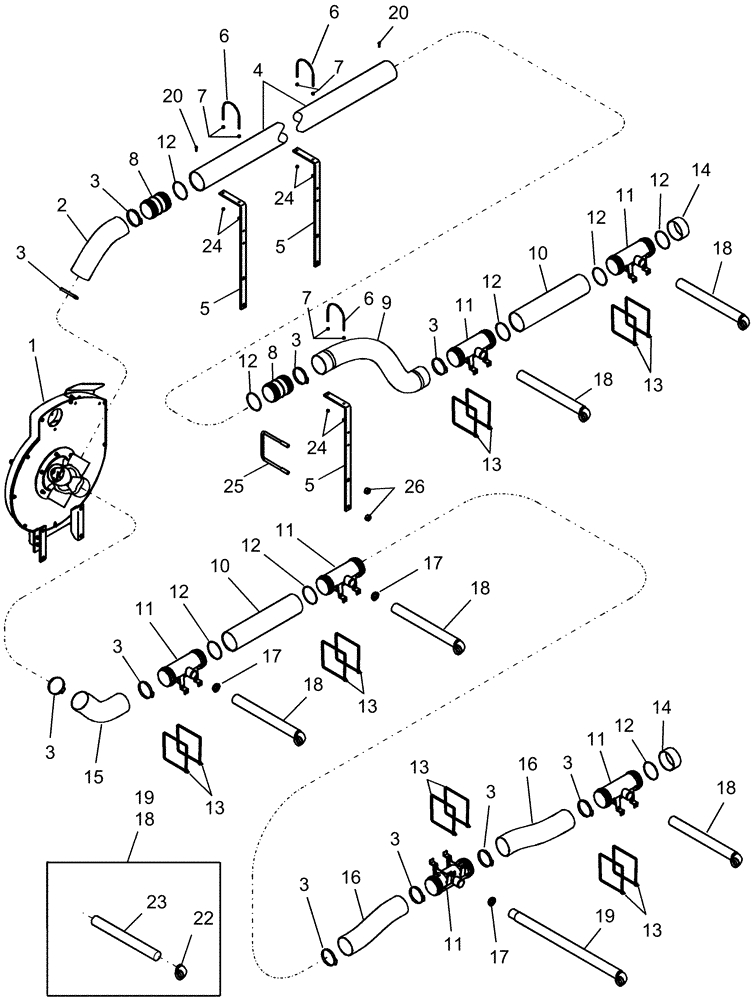

Запчасти Case IH 1240 (39.110.11) - VACUUM AIR SYSTEM - 12 ROW (39) - FRAMES AND BALLASTING
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
FAN ASSY.
1шт.
2
393045A1
HOSE,114.30 mm ID x 430.00 mm
Flex
2шт.
Cut from 362013A1
1шт.
2
362013A1
HOSE,114.30 mm ID x 7620.00 mm
1шт.
3
9706924
HOSE CLAMP,103.1mm - 127mm
20шт.
4
391886A1
TUBE,116.88 mm ID, 125 mm OD
vacuum 5" x 2010 mm long
2шт.
Cut from 362014A1
1шт.
4
362014A1
TUBE,116.88 mm ID, 125 mm OD, 6096 mm Length
vacuum 5" x 6096 mm (20' roll)
1шт.
5
427745A2
BAR
vacuum support
6шт.
6
392969A1
U-BOLT
BOLT "U" ur 1/4"-20 5 9/32" w 5 25/32" d 1 25/32" thread, vacuum system
6шт.
7
7770
NUT,Hex, 1/4 - 20, Cl 5
12шт.
8
392979A1
FITTING
pvc connector 4"
4шт.
9
447890A1
HOSE,114.30 mm ID x 1500.00 mm
2шт.
Cut from 362013A1
1шт.
9
362013A1
HOSE,114.30 mm ID x 7620.00 mm
1шт.
10
301441A1
TUBE,116.88 mm ID, 125 mm OD, 556 mm Length
vacuum 5" x 556 mm long
4шт.
Cut from 362014A1
1шт.
10
362014A1
TUBE,116.88 mm ID, 125 mm OD, 6096 mm Length
vacuum 5" x 6096 mm (20' roll)
1шт.
11
300766A1
TEE
vacuum manifold
12шт.
12
238-3347
O-RING,4.225" ID x 4.645" OD x 0.21"
16шт.
13
112620A1
CABLE TIE
CABLE STRAP 34"
24шт.
14
300767A1
CAP
vacuum manifold end
4шт.
15
393046A1
HOSE,114.30 mm ID x 370.00 mm
Flex
2шт.
Cut from 362013A1
1шт.
16
393047A1
HOSE,114.30 mm ID x 560.00 mm
Flex
4шт.
Cut from 362013A1
1шт.
15-16
362013A1
HOSE,114.30 mm ID x 7620.00 mm
1шт.
17
305519A1
PLUG
vacuum manifold restriction
6шт.
18
87501732
HOSE
vacuum with elbow - 960
10шт.
Includes Refs. 22 and 23
1шт.
19
87501733
HOSE
vacuum with elbow - 1000
2шт.
Includes Refs. 22 and 23
1шт.
20
87023137
SELF-TAP SCREW,Hex Wash Hd, #12 x 1"
4шт.
22
87500119
TUBE
90º 50 mm - vacuum
12шт.
23
87501726
HOSE
vacuum 2" x 50' bulk
10шт.
Cut to 927 mm long
1шт.
23
87501726
HOSE
vacuum 2" x 50' bulk
2шт.
24
86625061
NUT,1/4"-20, GB
12шт.
25
1250813C1
U-BOLT
us 5/8"-11 x 7" x 8 1/4", G5, 2" thread
2шт.
Выбрано товаров: 40
