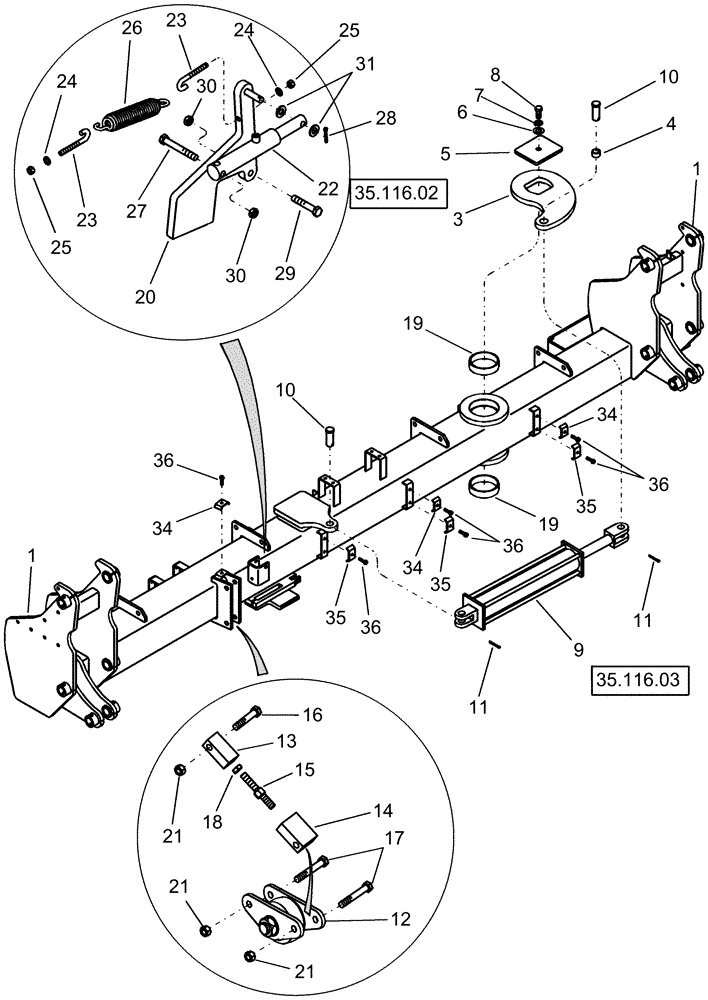

Запчасти Case IH 1240 (39.110.09) - MAIN ROTATING FRAME, 12 ROW, 12/23 ROW, 16 ROW, 16/31 ROW & 24 ROW (39) - FRAMES AND BALLASTING

1

87500506

FRAME

upper rotating light, with reflectors

1шт.

Includes decals 413671A1 and 413673A1

1шт.

12 row and 16 row planters

1шт.

1

87446560

FRAME

upper rotating with decals

1шт.

Includes decals 413671A1 and 413673A1

1шт.

12/23 row, 16/31 row and 24 row planters

1шт.

1

87462248

DECAL

small crush hazard

1шт.

Part of Upper Rotating Frame Assembly P/N 87414363

1шт.

Part of Upper Rotating Frame Assembly P/N 87500506

1шт.

1

413673A1

WARNING DECAL

Strike Hazard Folding

1шт.

Part of Upper Rotating Frame Assembly P/N 87414363

1шт.

Part of Upper Rotating Frame Assembly P/N 87500506

1шт.

1

87527145

WARNING DECAL

Crush Hazard Cylinder French

1шт.

1

87549764

DECAL

SMALL WARNING CRUSH HAZARD CYLINDER French

1шт.

1

87527147

WARNING DECAL

Strike Hazard Folding French

1шт.

3

427705A1

ARM

plate, pivot

1шт.

12 row and 16 row planters

1шт.

3

441209A1

PLATE

15" Pivot Arm

1шт.

12/23 row, 16/31 row and 24 row planters

1шт.

4

112886C1

BUSHING

tension 1 1/2" x 1 1/4" x 1"

1шт.

5

427853A1

PLATE

retaining cap

1шт.

6

87023158

WASHER,1.31" ID x 2.5" OD x 0.15" Thk

1шт.

7

84086

LOCK WASHER,32.08mm ID x 45.47mm OD x 7.95mm Thk

1шт.

8

87023127

BOLT,Hex, 1 1/4" - 7 x 2", Gr 8, Full Thd

1шт.

9

86991780

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 457.2mm Stroke

4" x 18" 3000 PSI no pins

1шт.

10

86632561

CLEVIS PIN,31.75mm OD x 91.44mm L

1шт.

10

84156994

CLEVIS PIN

1шт.

Rod end of cylinder 86991780

1шт.

11

88182

COTTER PIN,1/4" OD x 2" L

2шт.

12

87436829

ROLLER

wheel

1шт.

13

394812A1

BLOCK

turnbuckle RH

1шт.

14

394813A1

BLOCK

turnbuckle LH

1шт.

15

403619A1

ROD

linkage

1шт.

16

280210

BOLT,Hex, 3/4"-10 x 4", G5

1шт.

17

88421

BOLT,Hex, 3/4" - 10 x 5", Gr 5

2шт.

18

86632557

JAM NUT,Jam, 3/4"-10, G5

1шт.

19

394815A1

BUSHING

Garmax 5 1/2" x 5 x 1 3/8" lg

2шт.

12 row and 16 row planters

1шт.

19

87414355

BUSHING,143.1mm ID x 149.4mm OD x 47.6mm L

Garmax 5 7/8" x 5 5/8" x 1 7/8"

2шт.

12/23 row, 16/31 row and 24 row planters

1шт.

20

427709A1

LOCK

1шт.

21

86754

NUT,3/4"-10, GB

3шт.

22

86991777

HYDRAULIC CYLINDER

1" x 4" 2500 PSI no pins SA

1шт.

23

398207A1

SPECIAL BOLT

J 3/8" x 3" x 2 13/32" thread

2шт.

24

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

25

231-1446

NUT,3/8" - 16, Gr 5

2шт.

26

9846583

SPRING

1/4"wr 1 1/2"od 8 1/2" lg

1шт.

27

86505992

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

1шт.

28

394818

COTTER PIN,M5 x 25

1шт.

29

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1шт.

30

86632537

THIN NUT,1/2"-13, GB, Thin

2шт.

31

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

7шт.

34

427779A1

CLAMP

2 hose

3шт.

35

427781A1

HOSE CLAMP

2 hose

4шт.

36

86512175

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

6шт.
