Запчасти Case IH 1240 (39.110.05) - 12/23 ROW & 16/31 ROW TWO STAGE MECHANICAL CARRIER FRAME HITCH ASSEMBLY (39) - FRAMES AND BALLASTING

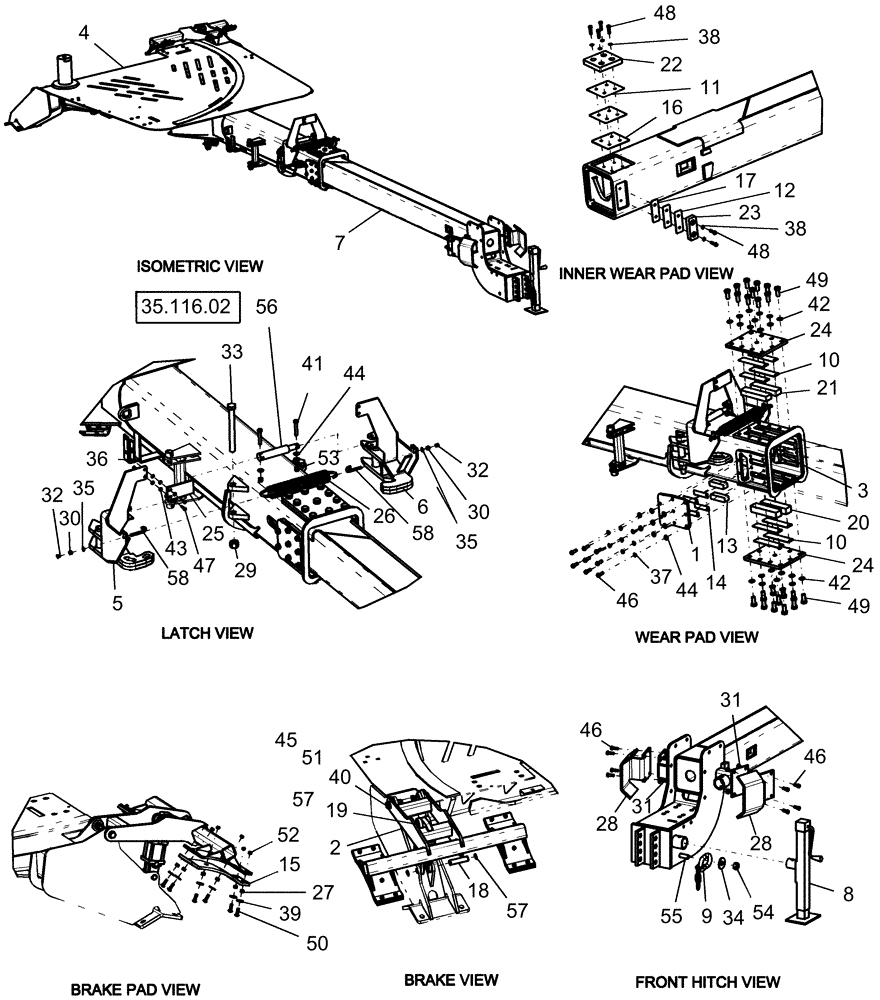

Схема запчастей Case IH 1240 - (39.110.05) - 12/23 ROW & 16/31 ROW TWO STAGE MECHANICAL CARRIER FRAME HITCH ASSEMBLY (39) - FRAMES AND BALLASTING
3
42
58
1
56
15
34
18
53
58
44
24
43
31
2
11
42
57
26
31
5
41
16
21
44
27
54
24
46
12
7
36
33
57
38
14
51
49
10
37
46
4
22
48
29
47
48
55
8
17
6
39
32
30
35.116.02
10
25
32
28
19
40
9
46
35
20
30
45
28
38
23
13
52
49
35
50

Артикул

Название

Примечание

Количество

1

87462887

COVER

plate 12 x 12 side

1шт.

2

87460983

BRAKE

PT telescoping hitch

1шт.

3

87460985

PLATE

cover 12 x 12 LH

1шт.

4

87501987

FRAME

12/23 carrier

1шт.

4

87505230

FRAME

base assembly 16/31

1шт.

5

87728441

LATCH

hitch RH

1шт.

6

87728443

LATCH

hitch LH

1шт.

7

87729409

TUBE,30 mm L

10" x 10" 30' mechanical hitch, heavy

1шт.

12/23 row planter

1шт.

7

87729417

TUBE,40 mm L

10" x 10" 40' mechanical hitch, heavy

1шт.

16/31 row planter

1шт.

8

385338A1

JACK

assembly 7000 lb sidewind 5" stroke

1шт.

9

PCC8607191

CHAIN

30,400 lb safety

1шт.

10

87506176

SHIM

12 x 12 top / bot

8шт.

11

87505235

SHIM

10 x 10 top thin

4шт.

12

87505253

SHIM

10 x 10 side thin

4шт.

13

87461072

WEAR PAD

5.8 x 1.8 x 1.38

4шт.

14

87506157

SHIM

PT hitch side

8шт.

15

84256352

PAD

Rubber, Brake Also Order 59,60

2шт.

16

87505234

SHIM

10 x 10 top thick

2шт.

17

87505245

SHIM

10 x 10 side thick

2шт.

18

87461081

HEADLESS PIN

brake cylinder

1шт.

19

87461082

HEADLESS PIN

brake cylinder

1шт.

20

87461092

WEAR PAD

12 x 12 bottom

2шт.

21

87502401

WEAR PAD

12 x 12 top

2шт.

22

87502406

WEAR PAD

10 x 10 top

2шт.

23

87502414

WEAR PAD

10 x 10 side

2шт.

24

87462898

COVER

plate 12 x 12 top

2шт.

25

87461093

PLATE

cover

1шт.

26

87506152

SPRING

E 3/8"wr 2 1/2"od 17 3/32"lg

1шт.

27

87505200

SPACER

PT Hitch Brake

12шт.

28

87559018

BRACKET

wheel bumper, 30"

2шт.

29

86755

NUT,1"-8, GB

2шт.

30

231-1446

NUT,3/8" - 16, Gr 5

2шт.

31

87530607

NUT

1/2"-13, GB

8шт.

32

86632697

CAP

poly sleeve cap 3/8" red

2шт.

33

413-16160

BOLT,Hex, 1" - 8 x 10", Gr 5

2шт.

34

495-81080

WASHER,1 1/32" x 3" x .240"

1шт.

35

86632588

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

36

280129

NUT,1/4"-20

2шт.

37

80679

LOCK WASHER,1/20.507 CST ZND

16шт.

38

80680

LOCK WASHER,3/8 0.381 CST ZND

12шт.

39

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

12шт.

40

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

41

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

42

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

22шт.

43

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

6шт.

44

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

20шт.

45

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

4шт.

46

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

24шт.

47

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

2шт.

48

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

12шт.

49

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

22шт.

50

280552

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

12шт.

51

280375

NUT,3/4"-10, GC

2шт.

52

9628503

NUT,3/8"-16, G5

12шт.

53

86992215

LOCK NUT,1/2"-13, GC

2шт.

54

86511609

NUT,1"-8, G8

1шт.

55

86539260

BOLT,Hex, 1" - 8 x 3", Gr 8

1шт.

56

86991777

HYDRAULIC CYLINDER

1" x 4" 2500 PSI no pins SA

1шт.

57

87348940

SNAP RING

ext .925" id .042" tk

4шт.

58

398207A1

SPECIAL BOLT

J 3/8" x 3" x 2 13/32" thread

2шт.

59

87508081

BOLT

1шт.

60

87505200

SPACER

1шт.

Выбрано товаров: 64
