Запчасти Case IH 1240 (39.110.04) - 12 ROW & 16 ROW TWO STAGE MECHANICAL CARRIER FRAME HITCH ASSEMBLY (39) - FRAMES AND BALLASTING

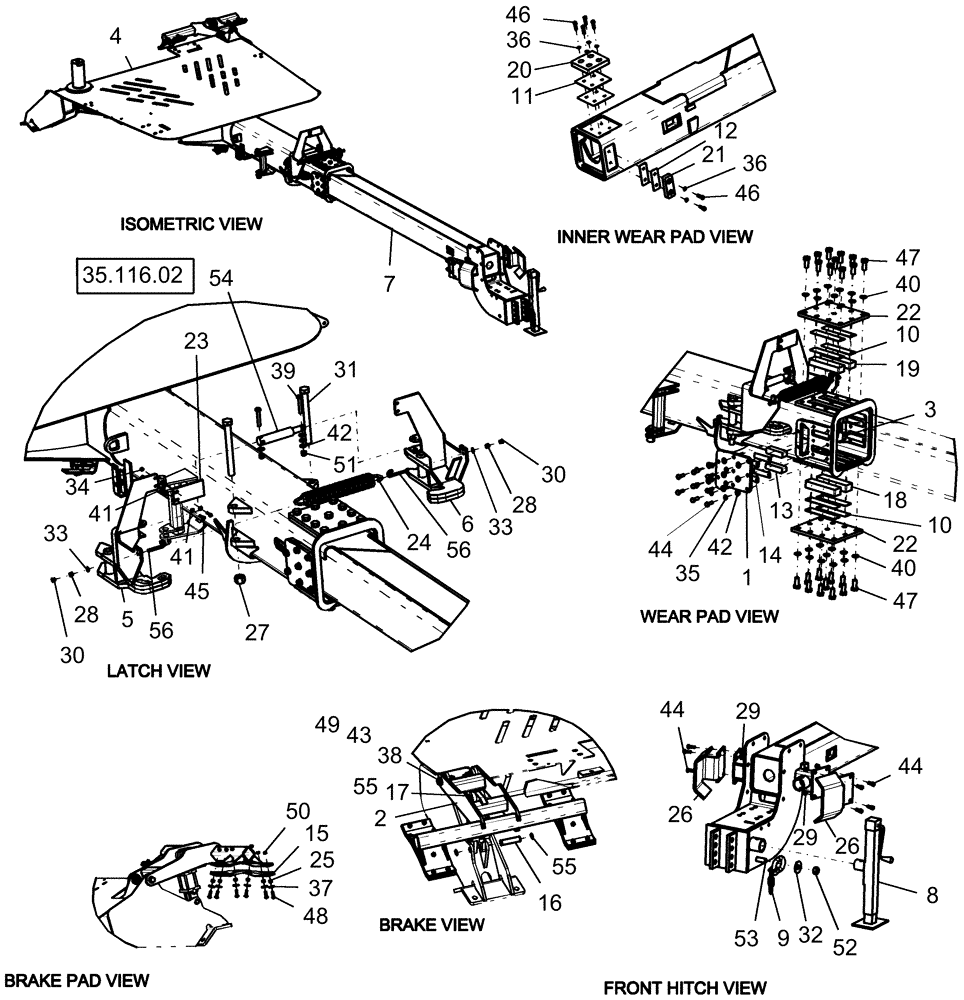

Схема запчастей Case IH 1240 - (39.110.04) - 12 ROW & 16 ROW TWO STAGE MECHANICAL CARRIER FRAME HITCH ASSEMBLY (39) - FRAMES AND BALLASTING
1
43
14
4
56
25
30
17
2
42
53
48
21
40
49
36
29
22
44
33
33
28
44
41
18
42
47
3
24
29
36
11
22
34
54
10
19
16
13
10
31
12
44
51
38
26
15
7
37
55
26
39
47
9
45
20
41
5
27
50
40
56
55
28
8
6
46
52
30
35
35.116.02
23
46
32

Артикул

Название

Примечание

Количество

1

87462887

COVER

plate 12 x 12 side

1шт.

2

87460983

BRAKE

PT telescoping hitch

1шт.

3

87460985

PLATE

cover 12 x 12 LH

1шт.

4

87461015

FRAME

base assembly - 12R30

1шт.

4

87506153

FRAME

base assembly - 16R30

1шт.

5

87728441

LATCH

hitch RH

1шт.

6

87728443

LATCH

hitch LH

1шт.

7

87729407

TUBE

10" x 10" 30' mechanical hitch, light

1шт.

12 row planter

1шт.

7

87729415

TUBE,40 mm L

10" x 10" 40' mechanical hitch, light

1шт.

16 row planter

1шт.

8

385338A1

JACK

assembly 7000 lb sidewind 5" stroke

1шт.

9

PCC8607191

CHAIN

30,400 lb safety

1шт.

10

87506176

SHIM

12 x 12 top / bot

8шт.

11

87505235

SHIM

10 x 10 top thin

4шт.

12

87505253

SHIM

10 x 10 side thin

4шт.

13

87461072

WEAR PAD

5.8 x 1.8 x 1.38

4шт.

14

87506157

SHIM

PT hitch side

8шт.

15

84256352

PAD

Rubber, Brake

2шт.

16

87461081

HEADLESS PIN

brake cylinder

1шт.

17

87461082

HEADLESS PIN

brake cylinder

1шт.

18

87461092

WEAR PAD

12 x 12 bottom

2шт.

19

87502401

WEAR PAD

12 x 12 top

2шт.

20

87502406

WEAR PAD

10 x 10 top

2шт.

21

87502414

WEAR PAD

10 x 10 side

2шт.

22

87462898

COVER

plate 12 x 12 top

2шт.

23

87461093

PLATE

cover

1шт.

24

87506152

SPRING

E 3/8"wr 2 1/2"od 17 3/32"lg

1шт.

25

87505200

SPACER

PT Hitch Brake

12шт.

26

87559018

BRACKET

wheel bumper, 30"

2шт.

27

86755

NUT,1"-8, GB

2шт.

28

231-1446

NUT,3/8" - 16, Gr 5

2шт.

29

87530607

NUT

1/2"-13, GB

8шт.

30

86632697

CAP

poly sleeve cap 3/8" red

2шт.

31

413-16160

BOLT,Hex, 1" - 8 x 10", Gr 5

2шт.

32

495-81080

WASHER,1 1/32" x 3" x .240"

1шт.

33

86632588

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

34

280129

NUT,1/4"-20

2шт.

35

80679

LOCK WASHER,1/20.507 CST ZND

16шт.

36

80680

LOCK WASHER,3/8 0.381 CST ZND

12шт.

37

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

12шт.

38

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

39

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

40

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

22шт.

41

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

6шт.

42

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

20шт.

43

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

4шт.

44

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

24шт.

45

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

2шт.

46

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

12шт.

47

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

22шт.

48

280552

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

12шт.

49

280375

NUT,3/4"-10, GC

2шт.

50

9628503

NUT,3/8"-16, G5

12шт.

51

86992215

LOCK NUT,1/2"-13, GC

2шт.

52

86511609

NUT,1"-8, G8

1шт.

53

86539260

BOLT,Hex, 1" - 8 x 3", Gr 8

1шт.

54

86991777

HYDRAULIC CYLINDER

1" x 4" 2500 PSI no pins SA

1шт.

55

87348940

SNAP RING

ext .925" id .042" tk

4шт.

56

398207A1

SPECIAL BOLT

J 3/8" x 3" x 2 13/32" thread

2шт.

Выбрано товаров: 60
