Запчасти Case IH 1230 (35.138.11) - HYDRAULIC SYSTEM - ROW MARKER/FRAME FOLD, 12 ROW WIDE AND 16 ROW WIDE MOUNTED STACKER FRAME (35) - HYDRAULIC SYSTEMS

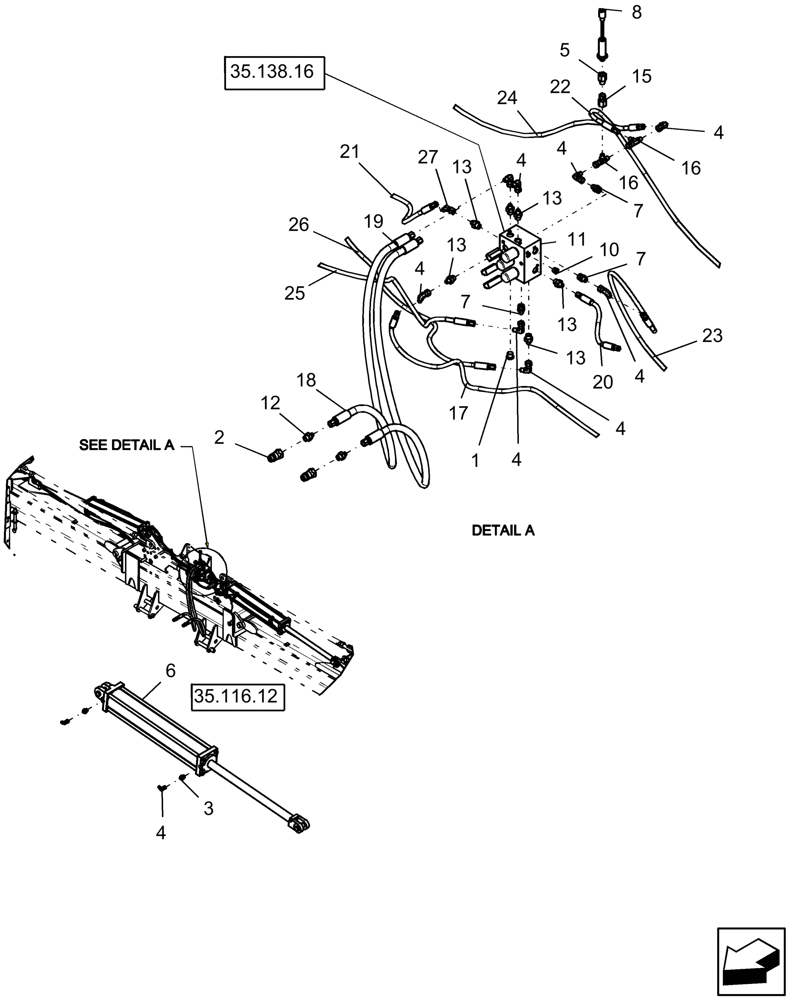

Схема запчастей Case IH 1230 - (35.138.11) - HYDRAULIC SYSTEM - ROW MARKER/FRAME FOLD, 12 ROW WIDE AND 16 ROW WIDE MOUNTED STACKER FRAME (35) - HYDRAULIC SYSTEMS
4
23
4
18
2
13
4
13
4
10
13
13
12
24
19
17
16
35.116.12
35.138.16
11
16
27
21
3
22
5
7
4
1
13
20
4
15
4
7
7
4
26
6
25
8

Артикул

Название

Примечание

Количество

1

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

2

87506450

QUICK MALE COUPLING

1/2"m-tip x 1/2" fb poppet style

2шт.

3

87592554

ORIFICE

1/32" x 1/2" mb x 3/8" mj

4шт.

4

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

12шт.

5

86622967

ADAPTER,9/16"-18 ORB x 3/8"-28 NPTF, Brass

1шт.

6

87437293

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 762mm Stroke

5" x 30" Monarch 3000 psi without pins

2шт.

7

382996A1

ORIFICE

fitting, one-way

3шт.

8

1547188C1

SWITCH

pressive inv

1шт.

9

87501758

HYDRAULIC CYLINDER

1394 marker 2 1/2" x 18"

2шт.

Not Shown

1шт.

10

9625178

PLUG,9/16" - 18 ORB

1шт.

11

302403A3

VALVE

assembly, stacker bar planter

1шт.

12

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

2шт.

13

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

6шт.

14

347353A1

RESTRICTOR

4шт.

Not Shown

1шт.

15

86624010

HYD CONNECTOR,37 Degree, Sw, 9/16"-18" x 3/8"-18 NPTF

1шт.

16

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

17

1277717C1

HYDRAULIC HOSE,6.35 mm ID x 1525.00 mm

1шт.

18

1285380C2

HYDRAULIC HOSE

3/8" x 50" (1270 mm) fl

1шт.

19

1285380C2

HYDRAULIC HOSE

3/8" x 50" (1270 mm) fl

1шт.

20

1336714C1

HYDRAULIC HOSE

1/4" x 15" fl

1шт.

21

139517C1

HYDRAULIC HOSE

1/4" x 80" fl

1шт.

22

1284289C1

HYDRAULIC HOSE

3/8" x 375" fl

1шт.

23

1284289C1

HYDRAULIC HOSE

3/8" x 375" fl

1шт.

24

1284289C1

HYDRAULIC HOSE

3/8" x 375" fl

1шт.

25

1284289C1

HYDRAULIC HOSE

3/8" x 375" fl

1шт.

26

812382C1

HYDRAULIC HOSE

1/4" x 50" fl

1шт.

27

86512959

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

28

529070

CABLE TIE,368.3mm L

CABLE STRAP

10шт.

Not Shown

1шт.

Выбрано товаров: 31
