Запчасти Case IH 1230 (35.116.07) - HYDRAULIC CYLINDER - 87660742, LIFT ASSIST, 12 AND 16 ROW MOUNTED STACKER (35) - HYDRAULIC SYSTEMS

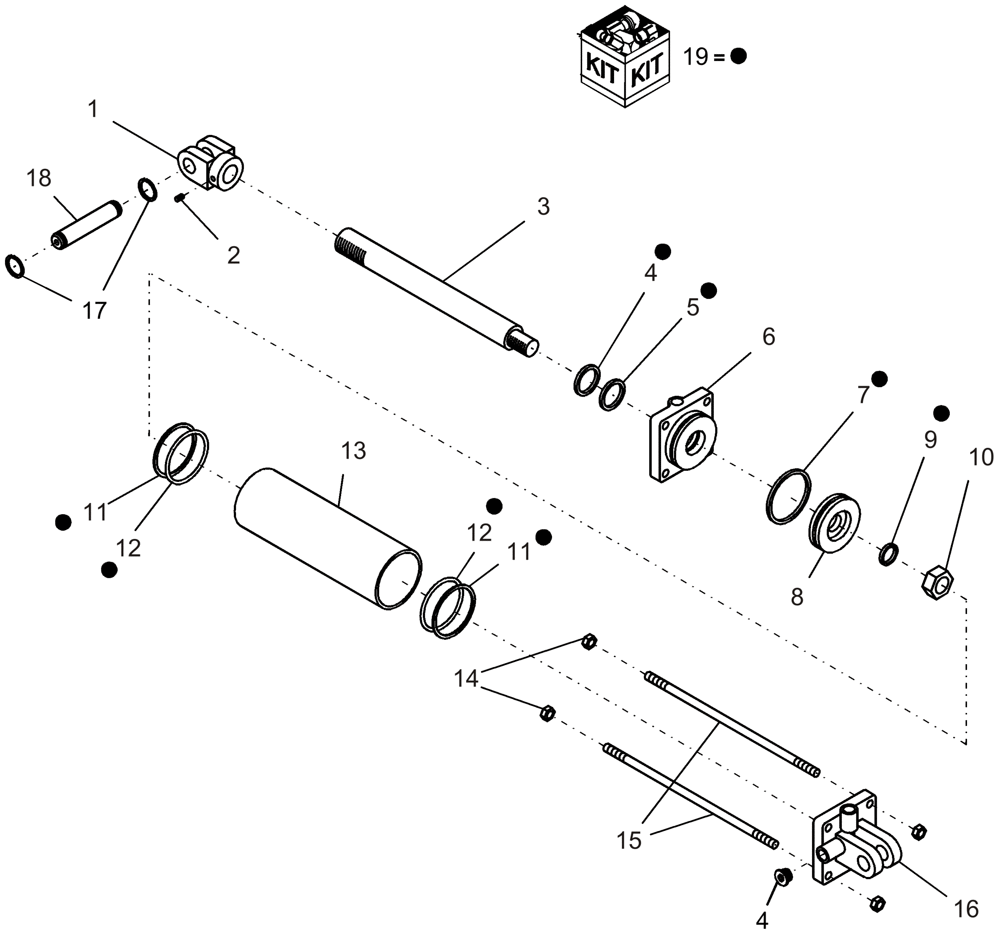

Схема запчастей Case IH 1230 - (35.116.07) - HYDRAULIC CYLINDER - 87660742, LIFT ASSIST, 12 AND 16 ROW MOUNTED STACKER (35) - HYDRAULIC SYSTEMS
12
13
15
10
2
1
18
11
14
5
17
12
16
6
9
19
7
4
4
3
8
11

Артикул

Название

Примечание

Количество

0

87660742

HYDRAULIC CYLINDER,31.75mm Rod, 254mm Stroke

3 1/2" x 8" 3000 psi

1шт.

1

87409387

CLEVIS,1 -1/4" - 12

cylinder 1" pin 1 1/4"-12 rod Monarch #492652

1шт.

2

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

3

9682

SHAFT

cylinder, 8" Monarch, 1 1/4" dia #492700

1шт.

2a

1029632

PLUG

nylon 5/16" od x 1/4" pln solid

1шт.

4

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

6

87409395

HEAD

cylinder front 3 1/2" bore x 1 1/4" rod

1шт.

8

87690837

PISTON

3 1/2" Monarch

1шт.

10

87314800

LOCK NUT

1"-14, GA

1шт.

13

87661330

TUBE,3.5 mm DIA x 8 mm L

cylinder 3 1/2" x 8"

1шт.

14

408

NUT,5/8" - 18, Gr 5

8шт.

15

87409486

BOLT

5/8"-11 hydraulic cylinder tie

4шт.

16

87409430

HEAD

cylinder base 3 1/2" bore

1шт.

17

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

4шт.

18

87637931

PIN,25.4mm OD x 85.6mm L

1" x 3 2/8"

2шт.

19

87739813

SEAL KIT

3 1/2" Monarch

1шт.

Выбрано товаров: 16
