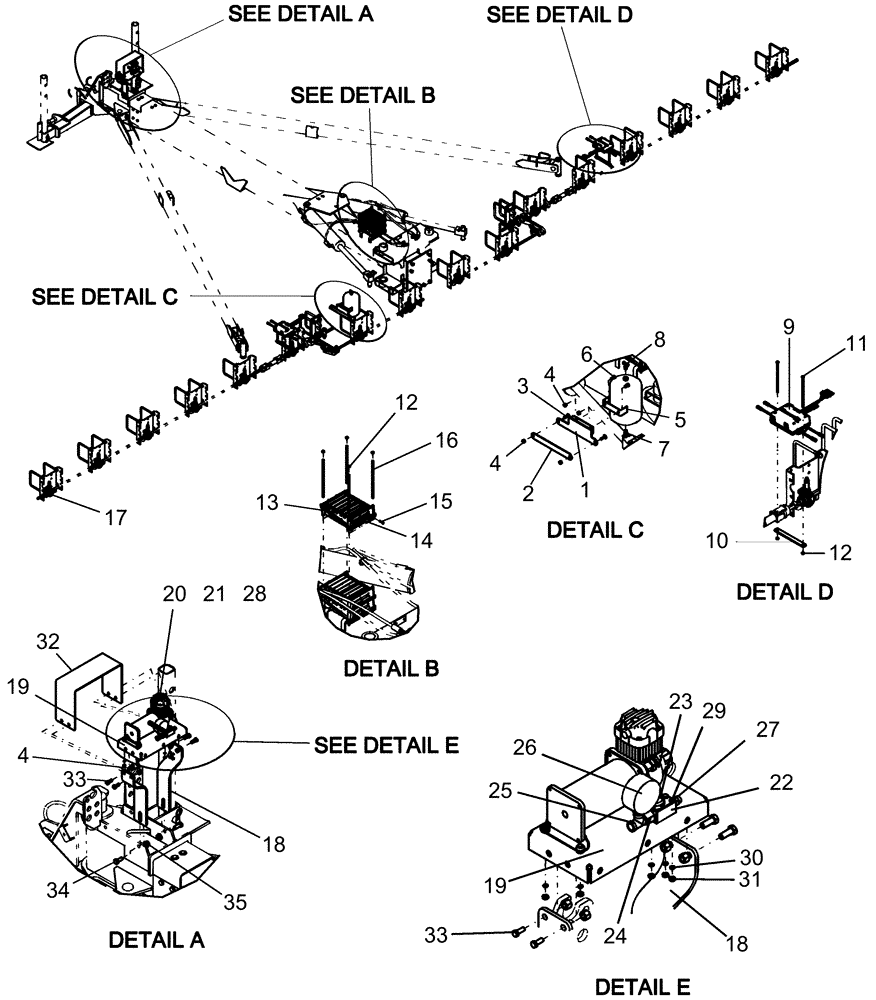

Запчасти Case IH 1230 (75.200.24) - ACCUROW, COMPONENTS FFT LAYOUT (75) - SOIL PREPARATION

1

84169287

SUPPORT

tank assy

1шт.

2

84169099

STRAP

tank retaining

1шт.

3

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

2шт.

4

87039402

NUT,3/8"-16, GB

8шт.

5

84164053

AIR TANK

150 PSI 1.6 gallon

1шт.

6

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

7

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

Valve, 1/4" Weatherhead

1шт.

8

84164949

COUPLING

1/4 NPT

1шт.

9

84170217

VALVE

pneumatic clutch

2шт.

9

84170217R

REMAN-HYD VALVE

1230 MOUNTED STACKER PLANTER EARLY RISER® SERIES, pneumatic clutch (7/08-)

2шт.

9

84170217C

CORE-VALVE HYD

Return Number

2шт.

10

84169094

STRAP

retainer

2шт.

11

413-4128

BOLT,Hex, 1/4" - 20 x 8", Gr 5

4шт.

12

7770

NUT,Hex, 1/4 - 20, Cl 5

8шт.

13

87588172

MODULE

frame ISO11783

1шт.

87588172R

REMAN ELECT CONTROL

1230 - Mounted Stacker Planter Early Riser® Series (7/08-)

1шт.

87588172C

CORE-ELECTRONIC CONT

Return Number

1шт.

14

425269A1

DUST CAP

30 conductor

1шт.

15

470-11016

SCREW,Pan HD, #10 - 24 x 1"

1шт.

16

84170674

THREADED ROD

1/4-20 x 10

4шт.

17

84133322

CLUTCH

pneumatic seed drive

16шт.

17

84133322R

REMAN-CLUTCH ASSY

1230 MOUNTED STACKER PLANTER EARLY RISER® SERIES, Pneumatic seed drive (7/08-)

16шт.

17

84133322C

CORE-CLUTCH ASSEMBLY

Return Number

16шт.

18

87693591

BRACKET

vertical mount

2шт.

19

84169495

BASE

Compressor

1шт.

20

84169421

AIR COMPRESSOR

1шт.

20

47454056R

REMAN-COMPRESSOR

1230 MOUNTED STACKER PLANTER EARLY RISER® SERIES (7/08-), Reman for New PN 84169421

1шт.

20

47454056C

CORE-COMPRESSOR

Return Number

1шт.

21

1971726C1

BREATHER,1/4" - 18

assembly

1шт.

22

84143619

MANIFOLD

air distribution block

1шт.

23

84143639

PRESSURE SWITCH

pneumatic

1шт.

24

87306797

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

1шт.

25

217-51

TEE,1/4"-18 NPTF Fem x 1/4"-18 NPTF Male Run

1шт.

26

21380

GAUGE

pressure 0-160 psi

1шт.

27

84256879

FITTING

Straight, 1/4" PTC x 1/8" npt

1шт.

28

463-11016

SCREW,Hex Hd, #10-24 x 1"

4шт.

29

463-11024

SCREW,Hex Hd, #10-24 x 1 1/2"

2шт.

30

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

6шт.

31

87304

NUT,#10-24

6шт.

32

84169093

SHIELD

compressor assembly

1шт.

33

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

34

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

35

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.
