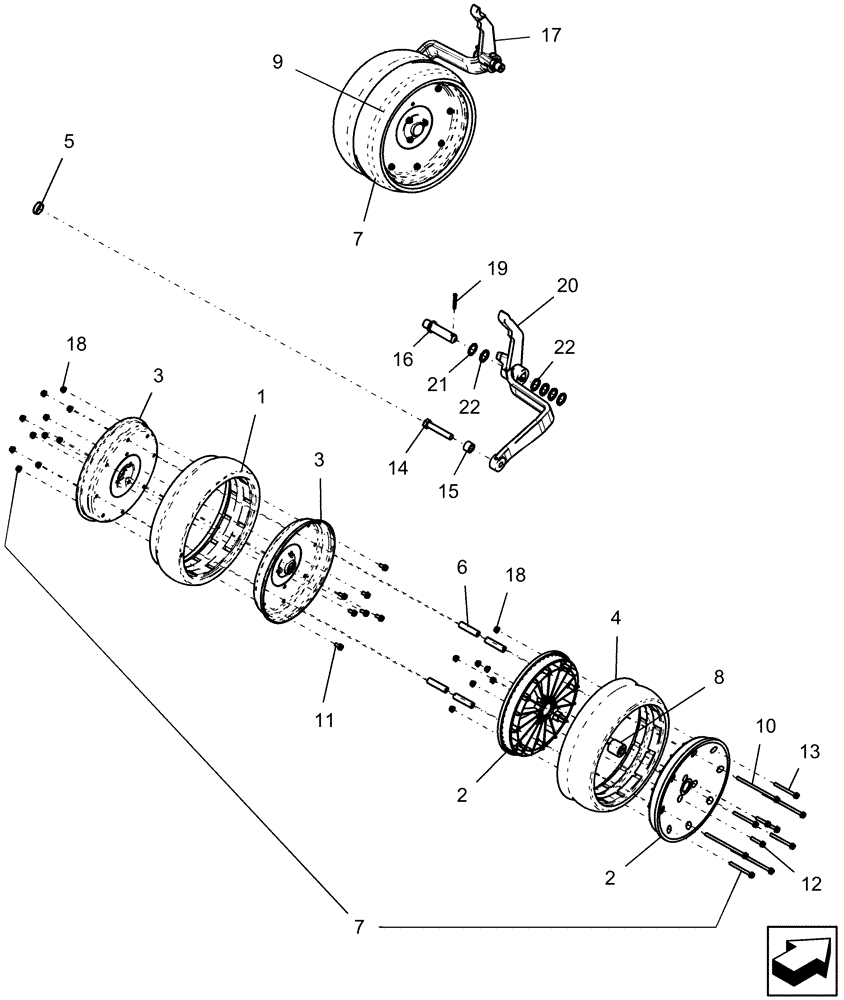

Запчасти Case IH 1230 (75.200.01[02]) - DUAL GAUGE WHEEL ATTACHMENT - ASN Y9S007001 (75) - SOIL PREPARATION

1

87602293

COMPACTOR WHEEL

4.5 x 16 gauge

2шт.

2

87604021

WHEEL DISC

black nylon half, 16" cleaner wheel

4шт.

3

87701901

RIM

dual gauge half

4шт.

4

87646854

TYRE/TIRE

cleaner wheel 4 1/2" x 16"

2шт.

5

87713756

PLUG

dome 1 3/8"

2шт.

6

87721347

SPACER

dual gauge wheel

8шт.

7

NS

NOT SERVICED

WHEEL ASSY dual gauge

2шт.

8

324461A1

BALL BEARING

16 mm bore x 40 mm wide

2шт.

9

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

1шт.

10

86705426

BOLT,Hex, M8 x 150mm, Cl 8.8

Hex Flg, M8 x 150, 8.8

8шт.

11

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

14шт.

12

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

6шт.

13

86705425

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

8шт.

14

113-1104

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5, LH Thd

1шт.

15

428672A1

SPACER

1 1/8" od x 7/8" id x 3/4" long

2шт.

16

175598A1

PIN,25.4mm OD x 120mm L

flanged 1" od hardened with 1"-12 threaded end

2шт.

17

86983486

ARM

cast dual gauge wheel LH

1шт.

18

86050303

NUT

M8 x 1.25, Flg, Cl 8

36шт.

19

80753

COTTER PIN,1/4" x 1 1/2"

2шт.

20

86983488

ARM

cast dual gauge wheel RH

1шт.

21

86624173

WASHER,1.09" ID x 1.5" OD x 0.06" Thk

2шт.

22

86624174

WASHER,1.09" ID x 1.5" OD x 0.12" Thk

9шт.
