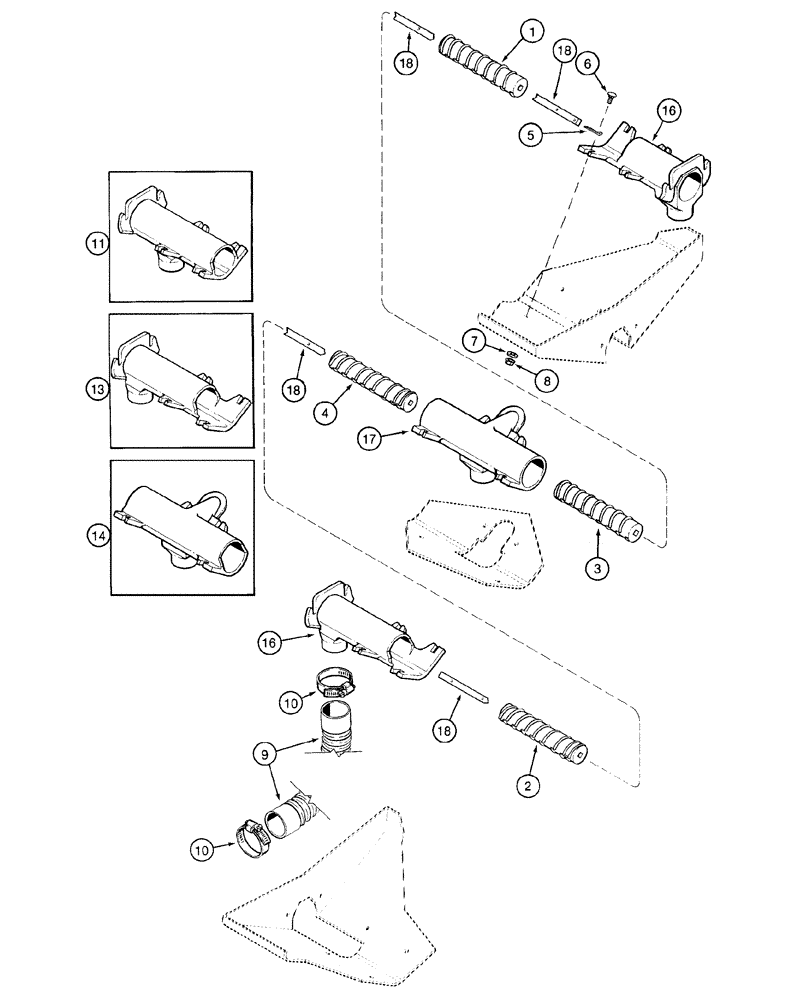

Запчасти Case IH 1230 (75.110.10) - DRY FERTILIZER HOPPER AUGER ATTACHMENTS, RIGID TRAILING PLANTERS (75) - SOIL PREPARATION

1

410421A1

AUGER

outer, slow feed RH

2шт.

6 Row

1шт.

1

410421A1

AUGER

outer, slow feed RH

5шт.

8 Row

1шт.

1a

410423A1

AUGER

outer, fast feed RH

2шт.

6 Row

1шт.

1a

410423A1

AUGER

outer, fast feed RH

5шт.

8 Row

1шт.

2

410420A1

AUGER

outer, slow feed LH

2шт.

6 Row

1шт.

2

410420A1

AUGER

outer, slow feed LH

5шт.

8 Row

1шт.

2a

410422A1

AUGER

outer, fast feed LH

2шт.

6 Row

1шт.

2a

410422A1

AUGER

outer, fast feed LH

5шт.

8 Row

1шт.

3

410427A1

AUGER

inner, slow feed LH

2шт.

6 Row

1шт.

3

410427A1

AUGER

inner, slow feed LH

1шт.

8 Row

1шт.

3a

410425A1

AUGER

inner, fast feed LH

2шт.

6 Row

1шт.

3a

410425A1

AUGER

inner, fast feed LH

1шт.

8 Row

1шт.

4

410426A1

AUGER

inner, slow feed RH

2шт.

6 Row

1шт.

4

410426A1

AUGER

inner, slow feed RH

1шт.

8 Row

1шт.

4a

410424A1

AUGER

inner, fast feed RH

2шт.

6 Row

1шт.

4a

410424A1

AUGER

inner, fast feed RH

1шт.

8 Row

1шт.

5

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

16шт.

6

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

1шт.

6

280827

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

1шт.

7

44722S36

WASHER,5/16", .354" x .688" x .08" Thk

1шт.

8

145458

SERRATED NUT,5/16"-18 GR 5 ZND

1шт.

9

141007C1

HOSE,35-54 mm ID x 100.011 mm

4" long, dry fertilizer

1шт.

10

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

1шт.

11

410428A1

HOUSING

auger feed end

2шт.

8 Row Narrow

1шт.

13

410419A1

HOUSING

auger inner end

2шт.

8 Row Narrow

1шт.

14

410417A1

HOUSING

auger feed, center special

1шт.

8 Row Narrow

1шт.

15

442199A1

BAR

shaft, auger, square

4шт.

8 Row Narrow

1шт.

Not Shown

1шт.

16

410419A1

HOUSING

auger inner end

2шт.

6 Row Narrow

1шт.

17

410418A1

HOUSING

auger feed, center

1шт.

6 Row Narrow

1шт.

18

442195A1

BAR

shaft, auger drive

2шт.

6 Row

1шт.
