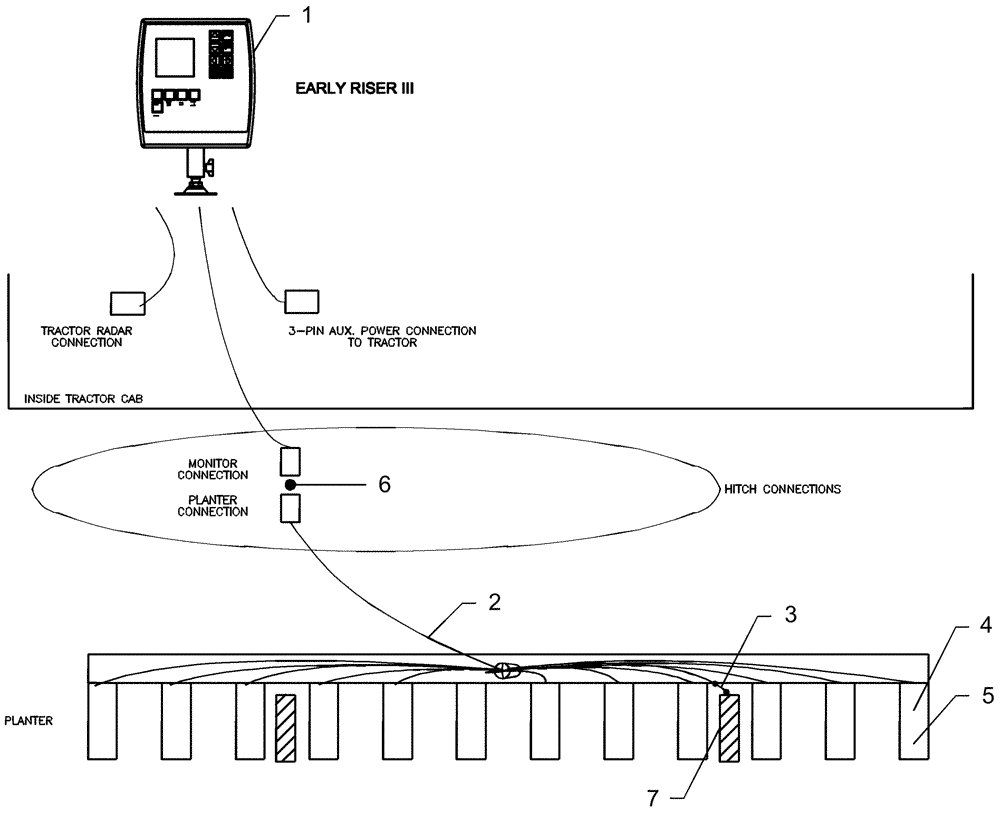

Запчасти Case IH 1230 (55.424.04) - ELECTRICAL - EARLY RISER III - CASE PLANTER MONITOR LAYOUT (55) - ELECTRICAL SYSTEMS

1

87548618

MODULE

Early Riser III monitor

1шт.

87548618R

REMAN-INSTR CLUSTER

1210, 1220, 1230 all SERIES (7/08-)

1шт.

87548618C

CORE-CLUSTER, INSTR

Return Number

1шт.

2

414489A1

HARNESS

6 row Early Riser II and III monitor

1шт.

Rigid Mounted and Rigid Trailing

1шт.

2

414490A1

HARNESS

8 row Early Riser II and III monitor

1шт.

2

414491A1

HARNESS

12 row Early Riser II and III monitor

1шт.

Mounted Stacker

1шт.

2

87593384

HARNESS

16 row Early Riser III monitor

1шт.

Mounted Stacker

1шт.

3

436521A1

ADAPTER

wiring harness plug

1шт.

Mounted Stacker

1шт.

4

404831A1

SENSOR

hi rate seed

1шт.

5

87688051

TUBE,737, 400 mm L

Seed, Years: -01-FEB-10

1шт.

5

87688051

TUBE,737, 400 mm L

Seed, Start Year: 01-FEB-10

1шт.

5

392257A1

SENSOR

ASM smart seed, Start Year: 01-FEB-10

1шт.

5

529070

CABLE TIE,368.3mm L

CABLE STRAP, Start Year: 01-FEB-10

1шт.

6

418649A1

HARNESS

6' Early Riser II extension

1шт.

Rigid Mounted and Mounted Stacker

1шт.

6

418650A1

HARNESS

15' Early Riser II extension

1шт.

Rigid Mounted and Mounted Stacker

1шт.

7

324049A1

SENSOR

speed hall

1шт.

8

86977690

LOCK WASHER,Ext Tooth, 5/8"

2шт.

Not Shown - for use with sensor 324049A1

1шт.
