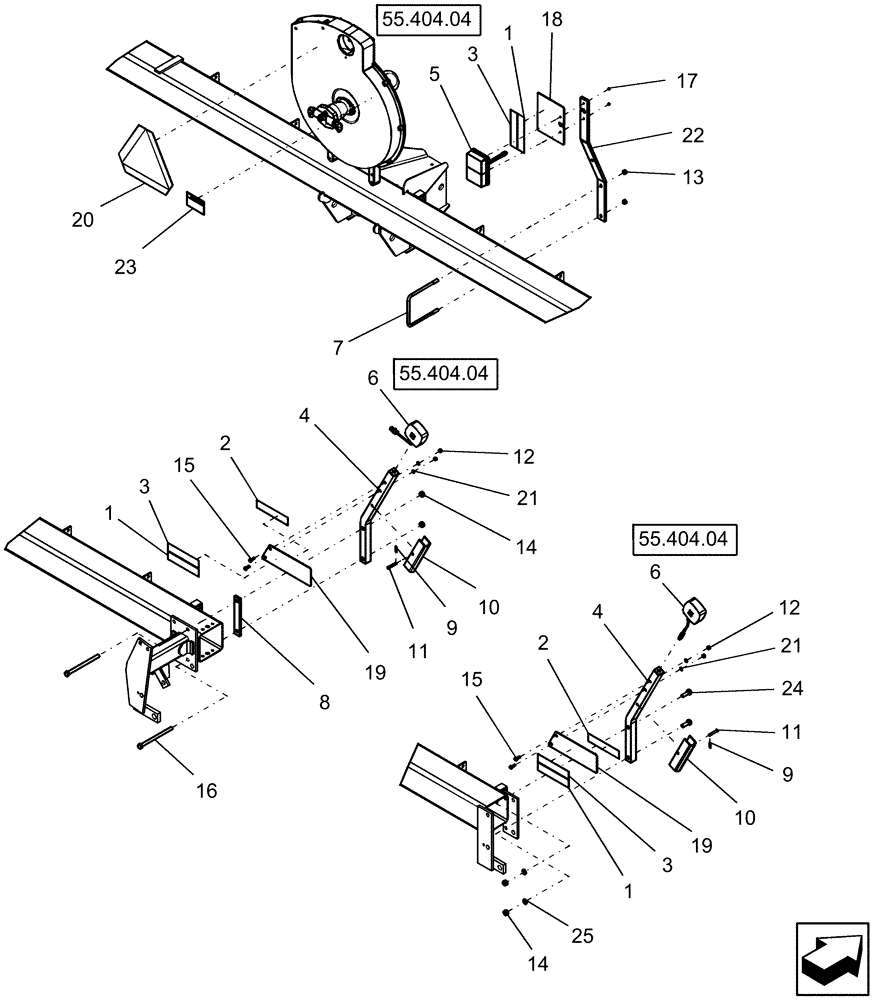

Запчасти Case IH 1230 (55.404.02) - ELECTRICAL - SAFETY LIGHTING SYSTEM, RIGID TRAILING (55) - ELECTRICAL SYSTEMS

1

311863A1

REFLECTOR

Retroreflective Red

3шт.

2

311864A1

REFLECTOR

Retroreflective Amber 1.375" x 7.25"

2шт.

3

311865A1

REFLECTOR

fluorescent orange

3шт.

4

1333937C3

ANGLE

light support RH

1шт.

4

1333936C3

ANGLE

light support LH

1шт.

5

307122A1

LAMP

stop, tail and turn

2шт.

6

NSS

NOT SOLD SEPARAT

lamp Warning, Order Kit 192052A1

2шт.

6

192052A1

REPAIR KIT

warning light (2 wire)

1шт.

7

133351A1

U-BOLT,1/2" - 13 x 179.20mm W x 210mm L

us 1/2"-13 7" wide x 8 1/4" deep with 1 3/8" thread

2шт.

8

1333940C1

BAR

back-up

2шт.

Install on opposite side of toolbar when no end markers are installed

1шт.

8 Row Rigid Trailing

1шт.

9

86624096

COTTER PIN,Int, 3/16 x .080"

2шт.

10

87413203

BRACKET

with decal, cylinder stop

2шт.

11

86624081

HEADED PIN,9.53mm OD x 57.15mm L

2шт.

12

9628503

NUT,3/8"-16, G5

4шт.

13

280431

NUT,1/2"-13, G5

4шт.

14

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

15

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

16

86622984

BOLT,Hex, 5/8" - 11 x 9", Gr 5

4шт.

8 Row Rigid Trailing

1шт.

17

87016571

NUT,M5, Cl 5

4шт.

18

416851A1

BRACKET

plate, reflector support with decals

2шт.

19

416845A1

BRACKET

with decals, reflector LH

1шт.

19

416847A1

BRACKET

with decals, reflector RH

1шт.

20

311858A1

DECAL

SMV Emblem

1шт.

21

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

22

87406672

BRACKET

tail light

2шт.

23

149366C4

WARNING DECAL

Avoid Injury, Install The Wheel Cylinder Stops

1шт.

24

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

4шт.

6 Row Rigid Trailing

1шт.

25

12034871

WASHER

5/8"

4шт.

6 Row Rigid Trailing

1шт.
