(55.100.28) - ELECTRICAL - HARNESS, ACCUROW POWER, STACKER, 84226303

Запчасти Case IH 1230 (55.100.28) - ELECTRICAL - HARNESS, ACCUROW POWER, STACKER, 84226303 (55) - ELECTRICAL SYSTEMS

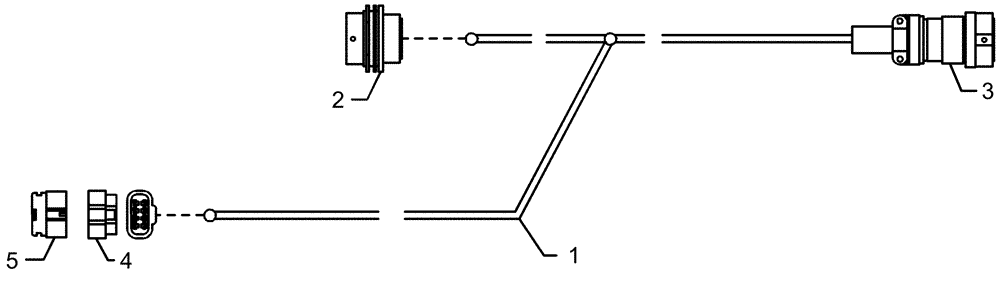

Схема запчастей Case IH 1230 - (55.100.28) - ELECTRICAL - HARNESS, ACCUROW POWER, STACKER, 84226303 (55) - ELECTRICAL SYSTEMS
1
3
2
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84226303

HARNESS

Power, AccuRow, Stacker

1шт.

2

352506A1

ELEC CONNECTOR,Male, 9 Pin

metal 9c receptacle

1шт.

3

279043A1

ELEC CONNECTOR,Female, 9 Pin

metal 9c plug

1шт.

4

87540289

ELEC CONNECTOR,Female

1шт.

5

87533278

ELEC CONNECTOR,Male

1шт.
