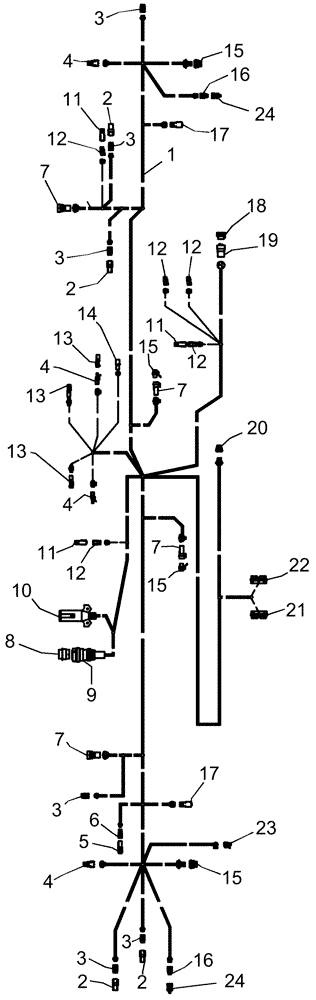

Запчасти Case IH 1230 (55.100.23) - ELECTRICAL - HARNESS 87682649, MOUNTED STACKER, RIGID MOUNTED VR (55) - ELECTRICAL SYSTEMS

1

87682649

HARNESS

mounted stacker, VR ISOBUS

1шт.

2

87696545

CONTACT HOUSING,Male, 3 Pole

cab plastic rcp 3c

4шт.

3

87696551

CONTACT HOUSING,Female, 3 Pole

cab plastic plug 3c

6шт.

4

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

4шт.

5

87055165

ELEC CONNECTOR

3 cavity

1шт.

6

9842512

ELEC CONNECTOR,Female, 16

3 Junct

1шт.

7

296483A1

ELEC CONNECTOR,Male, 5 Pin

Packard 150 series receptacle

4шт.

8

788614

PROTECTING COVER,2" OD x 1.7" Long

dust 23 con rcp Deutsch

1шт.

9

279043A1

ELEC CONNECTOR,Female, 9 Pin

metal 9c plug

1шт.

10

121646C1

TERMINAL CONNECTOR,Female

metal 7c plug c/w cable protector

1шт.

11

225315C1

ELEC CONNECTOR,Male, 2 Pin

Cab Plastic Receptacle 2C

3шт.

12

225316C1

ELEC CONNECTOR,Female, 2 Pin

2 Cavity

5шт.

13

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

plastic 2c receptacle

3шт.

14

1160576C1

ELEC CONNECTOR,Male, 2 Pin

2 contact

1шт.

15

296482A1

ELEC CONNECTOR,Female, 5 Pin

Packard 150 series plug

4шт.

16

194788A1

CONNECTOR, 2-POLE

2 Cavity

2шт.

17

277905A1

ELEC CONNECTOR,Male, 4 Pin

plastic 4c receptacle

2шт.

18

225291C1

DUST CAP

calibration switch

1шт.

19

795231

TERMINAL CONNECTOR,Female, 16 SAE

plastic 3c plug

1шт.

20

256348A1

ELEC CONNECTOR,Female, 6 Pin

6 Pin, Packard

1шт.

21

87268797

MULTIPOLE CONNECTOR,Female, 30 Pole

30c b plug

1шт.

22

87268798

MULTIPOLE CONNECTOR,Female, 30 Pole

30c plug b key

1шт.

23

198456A1

ELEC CONNECTOR,Female

3-Way Receptacle ES-A7380

1шт.

24

NSS

NOT SOLD SEPARAT

dust cap

2шт.
