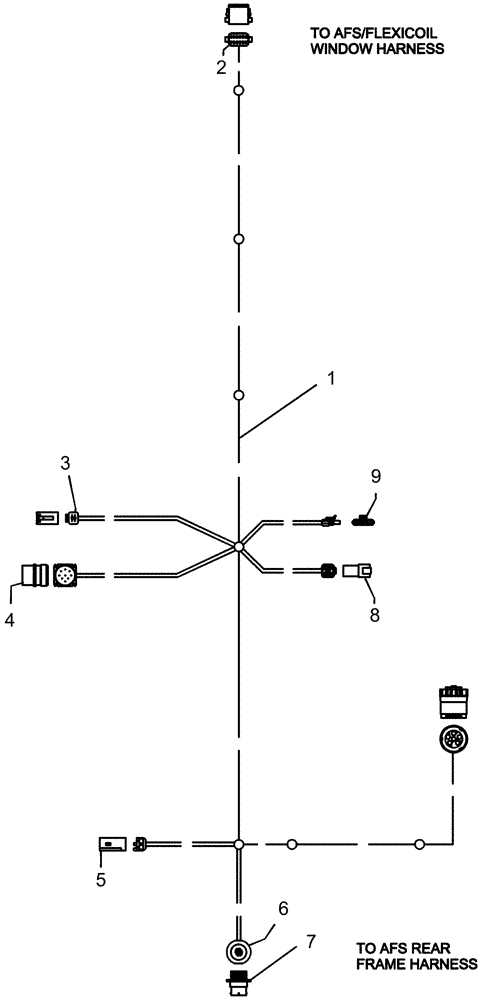

Запчасти Case IH 1230 (55.100.20) - ELECTRICAL - HARNESS 87364530, AFS / FLEX CONTROL (55) - ELECTRICAL SYSTEMS

1

87364530

HARNESS

AFS and FlexiControl

1шт.

2

87700156

CONTACT HOUSING,Female, 12 Pole

Deutsch 12 way dtm plug, grey

1шт.

3

86622300

ELEC CONNECTOR

4-cav Plug DT Series

1шт.

4

310057A1

ELEC CONNECTOR,Male, 9 Pin

Deutsch HD10 series Receptacle

1шт.

5

227429A1

CONNECTOR, ELEC

CONNECTOR

1шт.

6

194785A1

ELEC. TERMINAL PIN

1шт.

7

191041A1

NUT

connector mounting - 14 shell size

1шт.

8

225350C1

ELEC CONNECTOR,Male, 6 Pin

6 pin type LY

1шт.

9

182081A1

TERMINAL CONNECTOR,Female, 5 Pin

Tower 5-way Metri-pak

1шт.
