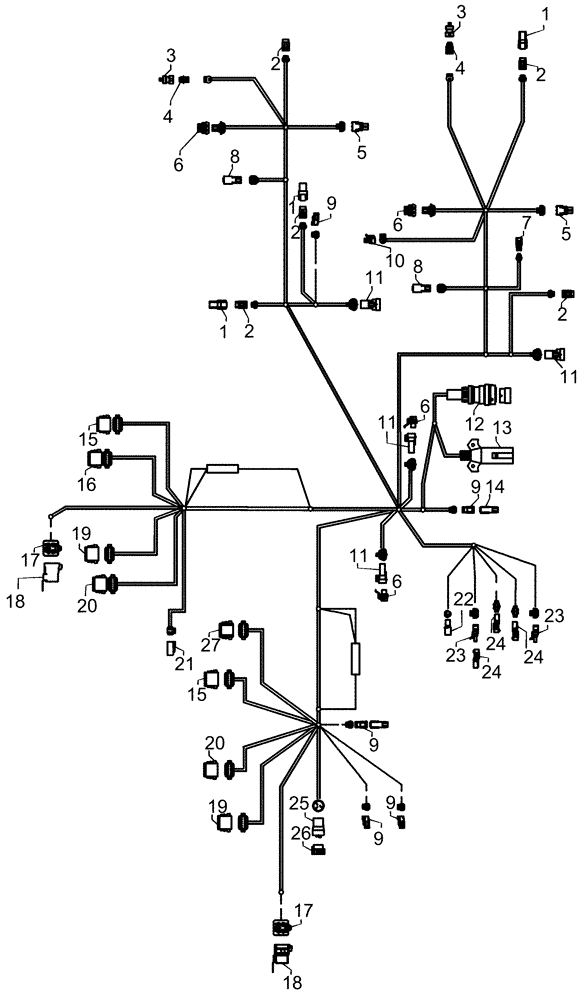

Запчасти Case IH 1230 (55.100.11) - ELECTRICAL - MOUNTED STACKER 16 ROW WIRING HARNESS 87575953 - AFS VR DRIVE (55) - ELECTRICAL SYSTEMS

0

87575953

HARNESS

planter stacker and rigid

1шт.

1

87696545

CONTACT HOUSING,Male, 3 Pole

cab plastic rcp 3c

3шт.

2

87696551

CONTACT HOUSING,Female, 3 Pole

cab plastic plug 3c

5шт.

3

NSS

NOT SOLD SEPARAT

DUST CAP

2шт.

4

194788A1

CONNECTOR, 2-POLE

2 Cavity

2шт.

5

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

2шт.

6

296482A1

ELEC CONNECTOR,Female, 5 Pin

Packard 150 series plug

4шт.

7

9842512

ELEC CONNECTOR,Female, 16

3 Junct

1шт.

8

277905A1

ELEC CONNECTOR,Male, 4 Pin

plastic 4c receptacle

2шт.

9

225316C1

ELEC CONNECTOR,Female, 2 Pin

2 Cavity

5шт.

10

198456A1

ELEC CONNECTOR,Female

3-Way Receptacle ES-A7380

1шт.

11

296483A1

ELEC CONNECTOR,Male, 5 Pin

Packard 150 series receptacle

4шт.

12

279043A1

ELEC CONNECTOR,Female, 9 Pin

metal 9c plug

1шт.

13

121646C1

TERMINAL CONNECTOR,Female

metal 7c plug c/w cable protector

1шт.

14

225315C1

ELEC CONNECTOR,Male, 2 Pin

Cab Plastic Receptacle 2C

1шт.

15

225402C1

CONNECTOR, ELEC

CONNECTOR

2шт.

16

225389C1

CONNECTOR, ELEC

CONNECTOR

1шт.

17

297910A1

ELEC CONNECTOR,Female, 5 Pin

Packard 280 metri-pack, 5-way

2шт.

18

293256A2

RELAY,12V

12v 40 amp weatherproof

2шт.

19

225403C1

CONNECTOR, ELEC

CONNECTOR

2шт.

20

225465C1

CONNECTOR, ELEC

CONNECTOR

2шт.

21

86622300

ELEC CONNECTOR

4-cav Plug DT Series

1шт.

22

1160576C1

ELEC CONNECTOR,Male, 2 Pin

2 contact

1шт.

23

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

2шт.

24

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

plastic 2c receptacle

3шт.

25

795231

TERMINAL CONNECTOR,Female, 16 SAE

plastic 3c plug

1шт.

26

225291C1

DUST CAP

calibration switch

1шт.

27

225389C1

CONNECTOR, ELEC

CONNECTOR

1шт.
