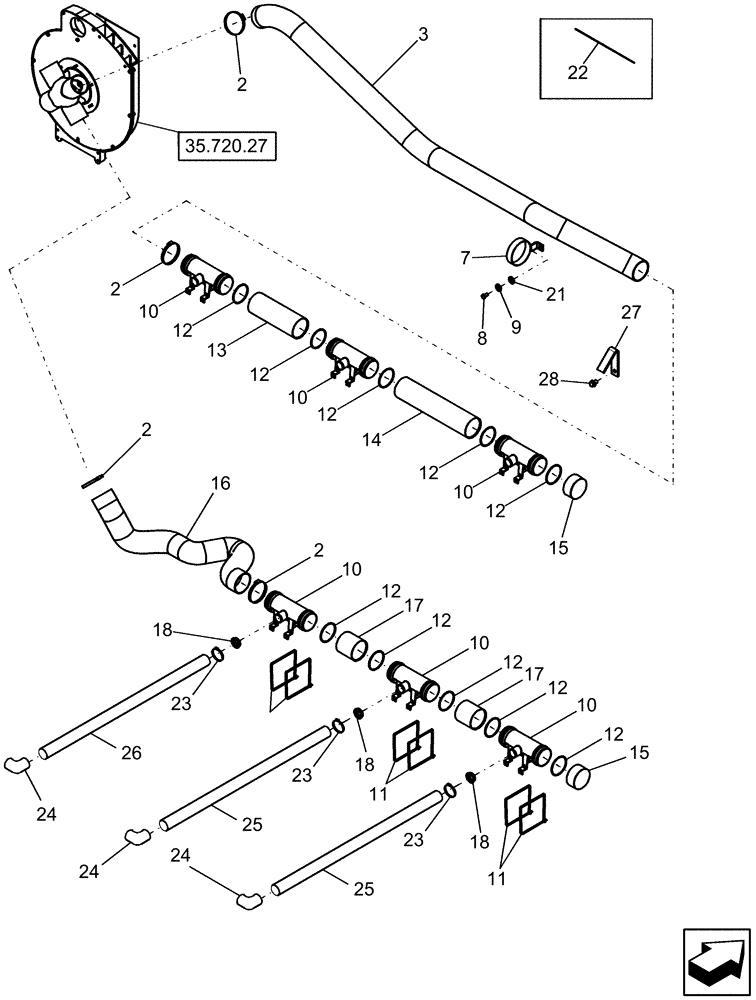

Запчасти Case IH 1230 (39.110.07) - VACUUM AIR SYSTEM - 12 ROW NARROW MOUNTED STACKER (39) - FRAMES AND BALLASTING

2

9706924

HOSE CLAMP,103.1mm - 127mm

10шт.

3

87675626

HOSE,4.50 mm ID

2шт.

Tube replacements may be cut to required lengths from bulk tube 362013A1

1шт.

3

362013A1

HOSE,114.30 mm ID x 7620.00 mm

1шт.

7

323214A1

GUIDE

4 1/2" flex hose

2шт.

8

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

10

300766A1

TEE

vacuum manifold

12шт.

11

112620A1

CABLE TIE

CABLE STRAP 34"

24шт.

12

238-3347

O-RING,4.225" ID x 4.645" OD x 0.21"

20шт.

13

307971A1

TUBE,116.88 mm ID, 125 mm OD, 444 mm Length

vacuum 5" x 444 mm long

2шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

14

301441A1

TUBE,116.88 mm ID, 125 mm OD, 556 mm Length

vacuum 5" x 556 mm long

2шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

13, 14

362014A1

TUBE,116.88 mm ID, 125 mm OD, 6096 mm Length

vacuum 5" x 6096 mm (20' roll)

1шт.

15

300767A1

CAP

vacuum manifold end

4шт.

16

447890A1

HOSE,114.30 mm ID x 1500.00 mm

2шт.

Tube replacements may be cut to required lengths from bulk tube 362013A1

1шт.

16

362013A1

HOSE,114.30 mm ID x 7620.00 mm

1шт.

17

308016A1

TUBE,116.88 mm ID, 125 mm OD, 120 mm Length

vacuum 5" x 120 mm long

4шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

17

301441A1

TUBE,116.88 mm ID, 125 mm OD, 556 mm Length

vacuum 5" x 556 mm long

4шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

17

362014A1

TUBE,116.88 mm ID, 125 mm OD, 6096 mm Length

vacuum 5" x 6096 mm (20' roll)

1шт.

18

305519A1

PLUG

vacuum manifold restriction

6шт.

21

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

2шт.

22

238600A3

HOSE,6.35 mm ID x 1730.00 mm

1шт.

23

82012728

COLLAR,50mm - 65mm, Worm Gear

12шт.

24

87500119

TUBE

90º 50 mm - vacuum

12шт.

25

87501726

HOSE

vacuum 2" x 50' bulk

10шт.

Cut to 927 mm long

1шт.

Standard row unit

1шт.

26

87501726

HOSE

vacuum 2" x 50' bulk

2шт.

Cut to 1157 mm long

1шт.

Extended row unit

1шт.

27

87690803

BRACKET

deflector, vacuum hose

2шт.

28

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

2шт.

VR drive or markers

1шт.

28

50215

BOLT,Hex Serr Flg, 3/8" - 16 x 1/2"

2шт.

Mech drive no markers

1шт.

28

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

2шт.

VR drive with markers

1шт.
