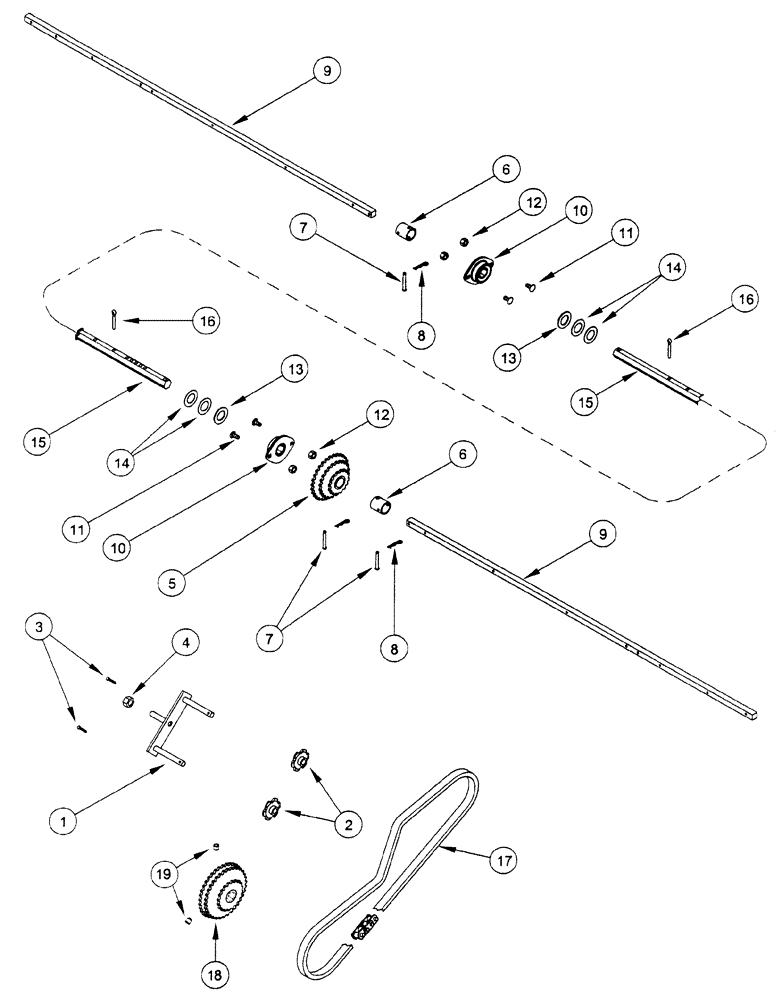

Запчасти Case IH 1230 (35.720.25) - SECONDARY FERTILIZER DRIVE SYSTEM, DRY FERTILIZER, 6 ROW RIGID TRAILING (35) - HYDRAULIC SYSTEMS

1

87461091

ARM

chain tightener

1шт.

2

472344R3

SPROCKET

idler

2шт.

3

394818

COTTER PIN,M5 x 25

2шт.

4

86992215

LOCK NUT,1/2"-13, GC

1шт.

5

1267911C1

SPROCKET

assembly, shaft 16-24-30T

1шт.

5a

1264352C1

SPROCKET ASSY.

triple, 20, 34 and 36 tooth

1шт.

Not Shown

1шт.

6

141771C2

COUPLING,27.05mm ID x 33.4mm OD x 36mm L

1 7/16" (36 mm) long

2шт.

7

86624077

HEADED PIN,6.35mm OD x 50.8mm L

3шт.

8

86624096

COTTER PIN,Int, 3/16 x .080"

3шт.

9

442195A1

BAR

shaft, auger drive

2шт.

10

134158C92

BALL BEARING,22.5mm ID

7/8 hex flange

2шт.

11

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

12

145458

SERRATED NUT,5/16"-18 GR 5 ZND

4шт.

13

86624172

WASHER,1.03" ID x 1.75" OD x 0.12" Thk

1шт.

14

86624171

WASHER,1.03" ID x 1.75" OD x 0.06" Thk

4шт.

15

141770C2

BAR

Drive, Hex, 22 mm (7/8") x 990 mm (39") long

1шт.

16

80753

COTTER PIN,1/4" x 1 1/2"

2шт.

17

137465C92

CHAIN (AG)

drive, use 57 links from 569088R91 bulk chain, plus (1) 1277927C91 connecting link

1шт.

Use 57 Links From 569088R91 Bulk Chain, Plus (1) 1277927C91 Connecting Link

1шт.

17

569088R91

CHAIN (AG)

#2040 - 10' d/p roller

1шт.

18

141063C2

SPROCKET

assembly, drive clutch

1шт.

19

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

2шт.
