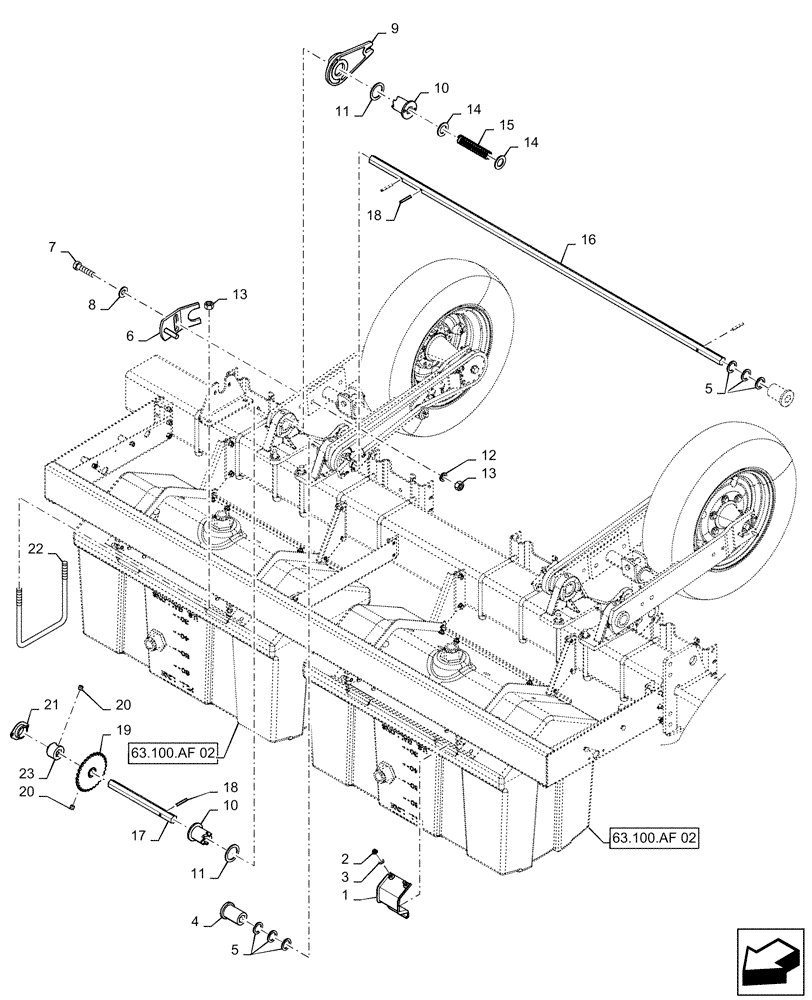

Запчасти Case IH 1225 EARLY RISER (63.100.AD[02]) - LIQUID FERTILIZER MOUNTING 8 ROW (63) - CHEMICAL APPLICATORS

1

147419C1

BRACKET

16шт.

2

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

32шт.

3

247780

SERRATED NUT,Flg, USR, 3/8"-16

32шт.

4

90335C2

BUSHING

2шт.

5

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

6шт.

6

87461084

BRACKET

Throwout

1шт.

7

87630

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

1шт.

8

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

1шт.

9

87502661

PLATE

Clutch Throwout

1шт.

10

1264314C1

CLUTCH

Drive Painted

2шт.

11

1267994C2

THRUST WASHER,42.06mm ID x 57.15mm OD x 2.7mm Thk

1.656 X 2.25 X 0.105"

2шт.

12

86729275

LOCK WASHER,5/8 0.634 CST ZND

1шт.

13

280374

NUT,Hex, 5/8" - 11, Gr 5

3шт.

14

86624172

WASHER,1.03" ID x 1.75" OD x 0.12" Thk

2шт.

15

87461083

SPRING

1шт.

16

1986178C1

SHAFT

Input

1шт.

17

90844C1

SHAFT

Input

1шт.

18

86624099

PIN,1/4" x 1 3/4", Coiled

4шт.

19

1254152C2

SPROCKET

30 Tooth

1шт.

20

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

4шт.

21

134158C92

BALL BEARING,22.5mm ID

1шт.

22

1250813C1

U-BOLT

1шт.

23

87461085

SPROCKET

Hub

1шт.
