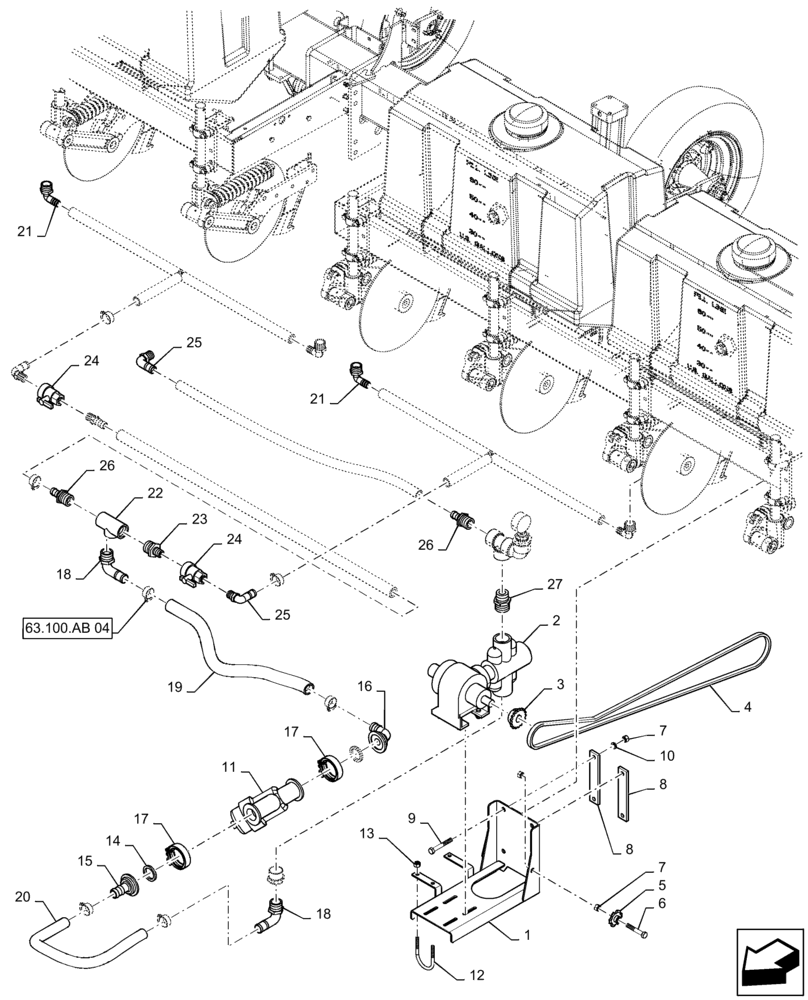

Запчасти Case IH 1225 EARLY RISER (63.100.AB[03]) - LIQUID FERTILIZER PLUMING 8 ROW (63) - CHEMICAL APPLICATORS

1

87503779

MOUNTING PARTS

Pump Painted

1шт.

2

87504269

PUMP

Piston Liquid Fertilizer

1шт.

3

87397258

SPROCKET

17 Tooth

1шт.

4

84594636

CHAIN

Drive Piston Pump

1шт.

5

472344R3

SPROCKET

Idler

1шт.

6

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

7

280431

NUT,1/2"-13, G5

6шт.

8

87504119

PLATE

Mount

2шт.

9

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

4шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

11

405798A1

STRAINER ELEMENT,AAH

80 Mesh

1шт.

12

87413269

U-BOLT

3/8 X 2.87 X4"

2шт.

13

86985855

LOCK NUT

3/8"

4шт.

14

408348A1

GASKET

1-1/2"

2шт.

15

86990856

FITTING,2" Flange x 1-1/4" Hose Barb

2" X 1.25"

1шт.

16

405783A1

FITTING,2" Flange x 1-1/4" 90 Degree Hose Barb Elbow

1шт.

17

406040A1

CLAMP,90-100 in/lbs

Quick Release

2шт.

18

6801

ELBOW

90 Deg

2шт.

19

86984447

HOSE,1.25" ID BULK x 100.00'

1шт.

20

86984447

HOSE,1.25" ID BULK x 100.00'

1шт.

21

1261310C2

ELBOW

90 Deg

4шт.

22

1264067C2

TEE

1-1/4 X 1-1/4 X 1-1/4"

1шт.

23

21493

REDUCER FITTING

1.25"

1шт.

24

405795A1

SHUT-OFF VALVE,3/4" Single Union Poly Valve

3/4"

2шт.

25

6807

ELBOW

90 Deg

3шт.

26

8239

FITTING

2шт.

27

22335

REDUCER FITTING

1шт.
